Measure The Distance: | 50~200m | Number Of Measured Sections: | 10 |
---|---|---|---|
Sampling Frequency: | 4Hz | Wind Speed Measurement Range: | -50 ~50m/s |
Wind Direction Measurement Range: | -180°~180° | Wind Speed Accuracy: | 0.1m/s |
Power Supply: | 100 VAC~240VAC ±10% 50Hz~60Hz ±6% | Power: | ≤300W |
Operating Temperature Range: | -40℃~60℃ | Survival Temperature Range: | -40 ℃ ~ 65 ℃ (power Off),-45 ℃ ~ 65 ℃ (charged) |
Working Humidity Range: | 0~100% RH | Survival Wind Speed: | 70m/s |
Working Acceleration Range: | -0.5g~0.5g | IP Protection Level: | Equipment In Engine Room: IP54,Equipment Outside Engine Room: IP66 |
Anticorrosive: | ISO C5 | Radiation Protection: | CISPR 11 |
Weight: | OHabout23Kg,DUabout6Kg | ||
High Light: | 240VAC Molas Wind Lidar System,100VAC Wind Lidar System,240VAC lidar wind measurement |

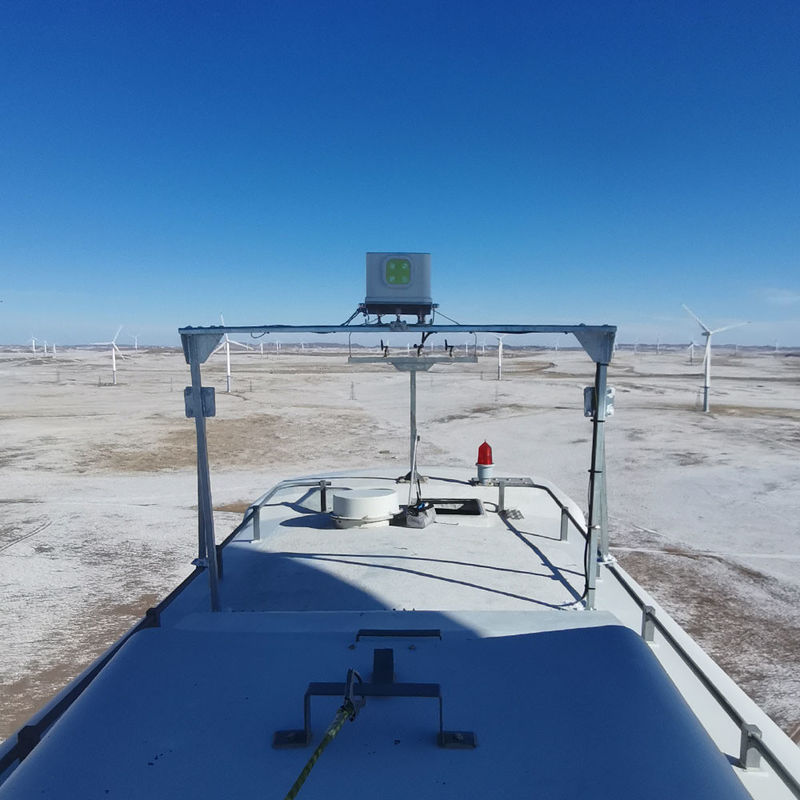

Molas Wind Lidar Beam pointing accuracy ±0.1°
1,Summary
2,Performance Parameter
Measure the distance |
50~200m |
Number of measured sections |
10 |
Sampling frequency |
4Hz |
Wind speed measurement range |
-50 ~50m/s |
Wind direction measurement range |
-180°~180° |
Wind speed accuracy |
0.1m/s |
Accuracy of wind direction |
±0.5° |
Beam pointing accuracy |
±0.1° |
Communication mode |
Profibus DP/Modbus TCP/ Modbus RTU/CANOPEN |
Power supply |
100 VAC~240VAC ±10% 50Hz~60Hz ±6% |
Power |
≤300W |
Operating temperature range |
-40℃~60℃ |
Survival temperature range |
-40 ℃ ~ 65 ℃ (power off),-45 ℃ ~ 65 ℃ (charged) |
Working humidity range |
0~100% RH |
Survival wind speed |
70m/s |
Working acceleration range |
-0.5g~0.5g |
IP protection level |
Equipment in engine room: IP54,Equipment outside engine room: IP66 |
Anticorrosive |
ISO C5 |
Radiation protection |
CISPR 11 |
Weight |
OH约23Kg,DU约6Kg |
