Molas NL 4 Beam Wind Lidar

Name: Molas NL 4 Beam Wind Lidar
Brand: MOVELASER
SKU: Molas NL
Price: 5 USD
Availability: InStock
Rating: 5 (156 reviews)

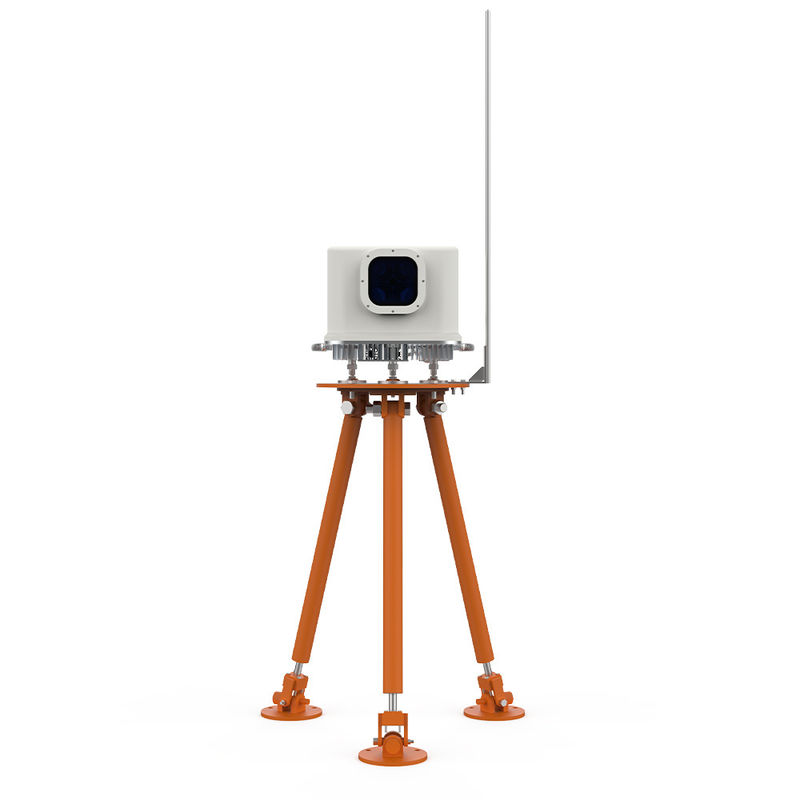

Large Image : Molas NL 4 Beam Wind Lidar

Product Details:

Place of Origin:	China
Brand Name:	MOVELASER
Certification:	DNV GL , Intertek , RISO Dtu
Model Number:	Molas NL

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Dollar 5W$+ （Price consultation customer service）
Packaging Details:	Air Box
Delivery Time:	1-2 months
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	200 set ，1 month

Contact Now

Detailed Product Description

Measure The Distance:	50~200m	Number Of Measured Sections:	10
Sampling Frequency:	4Hz	Wind Speed Measurement Range:	-50 ~50m/s
Wind Direction Measurement Range:	-180°～180°	Wind Speed Accuracy:	0.1m/s
Accuracy Of Wind Direction:	±0.5°	Beam Pointing Accuracy:	±0.1°
Communication Mode:	Profibus DP/Modbus TCP/ Modbus RTU/CANOPEN	Power Supply:	100 VAC~240VAC ±10% 50Hz~60Hz ±6%
Power:	≤300W	Operating Temperature Range:	-40℃～60℃
Survival Temperature Range:	-40 ℃ ~ 65 ℃ (power Off),-45 ℃ ~ 65 ℃ (charged)	Working Humidity Range:	0～100% RH
Survival Wind Speed:	70m/s	Working Acceleration Range:	-0.5g～0.5g
IP Protection Level:	Equipment In Engine Room: IP54,Equipment Outside Engine Room: IP66	Anticorrosive:	ISO C5
Radiation Protection:	CISPR 11	Weight:	OHabout23Kg,DUabout6Kg
High Light:	Molas NL 4 Beam Wind Lidar , 4 Beam Wind Lidar 300W , 200m Molas NL Wind Lidar

Wind Lidar System Molas NL Adopts a 4-beam optical scheme

1,Summary

Molas NL series is a nacelle-type wind measurement lidar independently developed by MOVELASER for intelligent application solutions of wind power customers. It is a laser remote sensing wind measurement device installed on the top of the wind turbine nacelle. The radar adopts a coherent detection system and based on the principle of laser Doppler frequency shift, it can accurately measure the wind vector field 50-200m/400m in front of the fan impeller.

2,Performance Parameter

Performance
Measure the distance	50~200m
Number of measured sections	10
Sampling frequency	4Hz
Wind speed measurement range	-50 ~50m/s
Wind direction measurement range	-180°～180°
Wind speed accuracy	0.1m/s
Accuracy of wind direction	±0.5°
Beam pointing accuracy	±0.1°

Other
Communication mode	Profibus DP/Modbus TCP/ Modbus RTU/CANOPEN
Power supply	100 VAC~240VAC ±10% 50Hz~60Hz ±6%
Power	≤300W
Operating temperature range	-40℃～60℃
Survival temperature range	-40 ℃ ~ 65 ℃ (power off),-45 ℃ ~ 65 ℃ (charged)
Working humidity range	0～100% RH
Survival wind speed	70m/s
Working acceleration range	-0.5g～0.5g
IP protection level	Equipment in engine room: IP54,Equipment outside engine room: IP66
Anticorrosive	ISO C5
Radiation protection	CISPR 11
Weight	OH约23Kg,DU约6Kg

Molas NL 4 Beam Wind Lidar 0
