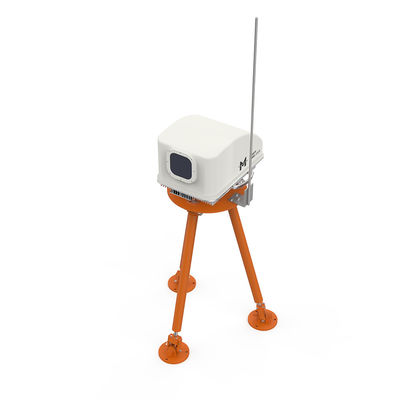

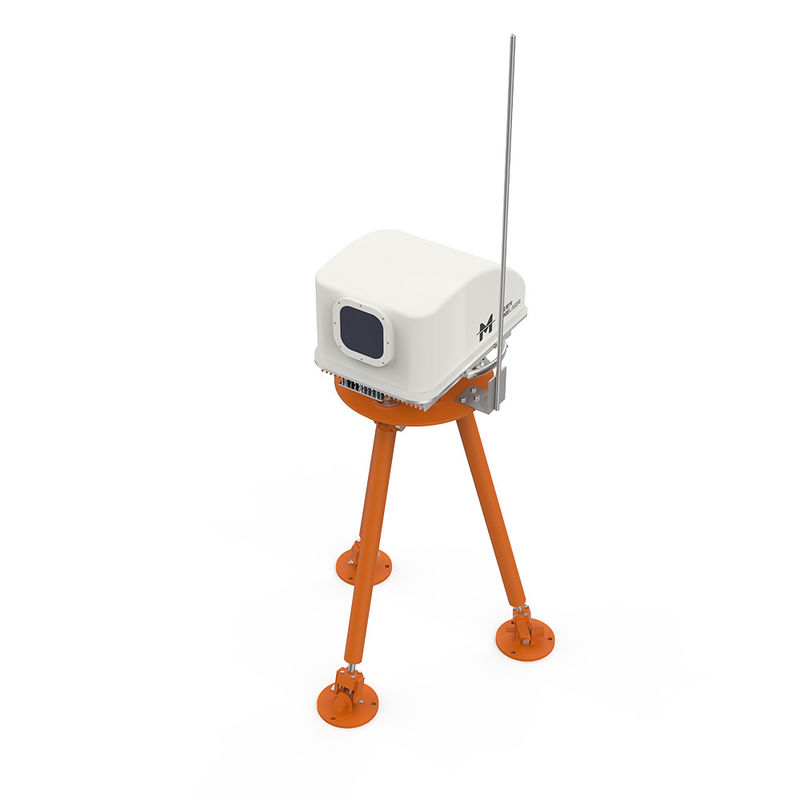

IP54 White CANOPEN Nacelle Based Wind Lidar RISO Dtu Coherent Detection Lidar

Name: IP54 White CANOPEN Nacelle Based Wind Lidar RISO Dtu Coherent Detection Lidar
Brand: Nanjing Movelaser Co., Ltd.
SKU: Molas NL
Price: 5 USD
Availability: InStock

Brand Name:	MOVELASER
Model Number:	Molas NL
MOQ:	1 set
Price:	Dollar 5W$+ （Price consultation customer service）
Delivery Time:	1-2 months
Payment Terms:	L/C, D/A, D/P, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

DNV GL , Intertek , RISO Dtu

Measure The Distance:

50~400m

Number Of Measured Sections:

Sampling Frequency:

4Hz

Wind Speed Measurement Range:

-50 ~50m/s

Wind Direction Measurement Range:

-180°～180°

Wind Speed Accuracy:

0.1m/s

Accuracy Of Wind Direction:

±0.5°

Beam Pointing Accuracy:

±0.1°

Communication Mode:

Profibus DP/Modbus TCP/ Modbus RTU/CANOPEN

Power Supply:

100 VAC~240VAC ±10% 50Hz~60Hz ±6%

Power:

≤300W

Operating Temperature Range:

-40℃～60℃

Survival Temperature Range:

-40 ℃ ~ 65 ℃ (power Off),-45 ℃ ~ 65 ℃ (charged)

Working Humidity Range:

0～100% RH

Survival Wind Speed:

70m/s

Anticorrosive:

ISO C5

Radiation Protection:

CISPR 11

Weight:

OHabout23Kg,DUabout6Kg

Packaging Details:

Air Box

Supply Ability:

200 set ，1 month

Highlight:

CANOPEN Nacelle Based Wind Lidar

IP54 Nacelle Based Wind Lidar

RISO Dtu Coherent Detection Lidar

Product Description

Nacelle-based Wind Lidar IP54 white

1,Summary

Molas NL400 uses the principle of lidar Doppler shift based on the coherent detection system to achieve accurate measurement of the wind vector field from the top of the nacelle to the front of the nacelle impeller face tens to hundreds of meters.

2,Performance Parameter

Performance
Measure the distance	50~200m
Number of measured sections	10
Sampling frequency	4Hz
Wind speed measurement range	-50 ~50m/s
Wind direction measurement range	-180°～180°
Wind speed accuracy	0.1m/s
Accuracy of wind direction	±0.5°
Beam pointing accuracy	±0.1°

Other
Communication mode	Profibus DP/Modbus TCP/ Modbus RTU/CANOPEN
Power supply	100 VAC~240VAC ±10% 50Hz~60Hz ±6%
Power	≤300W
Operating temperature range	-40℃～60℃
Survival temperature range	-40 ℃ ~ 65 ℃ (power off),-45 ℃ ~ 65 ℃ (charged)
Working humidity range	0～100% RH
Survival wind speed	70m/s
Working acceleration range	-0.5g～0.5g
IP protection level	Equipment in engine room: IP54,Equipment outside engine room: IP66
Anticorrosive	ISO C5
Radiation protection	CISPR 11
Weight	OH约23Kg,DU约6Kg
