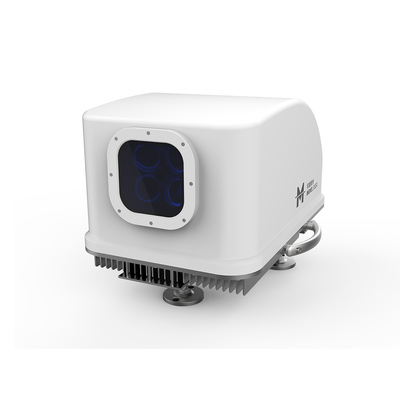

Modbus RTU Wind Lidars 70m/S Survival Wind Speed Lidar For Wind Turbines

Name: Modbus RTU Wind Lidars 70m/S Survival Wind Speed Lidar For Wind Turbines
Brand: MOVELASER
SKU: Molas NL
Price: 5 USD
Availability: InStock
Rating: 4.6 (184 reviews)

Large Image : Modbus RTU Wind Lidars 70m/S Survival Wind Speed Lidar For Wind Turbines

Product Details:

Place of Origin:	China
Brand Name:	MOVELASER
Certification:	DNV GL , Intertek , RISO Dtu
Model Number:	Molas NL

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Dollar 5W$+ （Price consultation customer service）
Packaging Details:	Air Box
Delivery Time:	1-2 months
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	200 set ，1 month

Contact Now

Detailed Product Description

Measure The Distance:	50~200m	Number Of Measured Sections:	10
Sampling Frequency:	4Hz	Wind Speed Measurement Range:	-50 ~50m/s
Wind Direction Measurement Range:	-180°～180°	Wind Speed Accuracy:	0.1m/s
Accuracy Of Wind Direction:	±0.5°	Beam Pointing Accuracy:	±0.1°
Communication Mode:	Profibus DP/Modbus TCP/ Modbus RTU/CANOPEN	Power Supply:	100 VAC~240VAC ±10% 50Hz~60Hz ±6%
Power:	≤300W	Operating Temperature Range:	-40℃～60℃
Survival Temperature Range:	-40 ℃ ~ 65 ℃ (power Off),-45 ℃ ~ 65 ℃ (charged)	Working Humidity Range:	0～100% RH
Survival Wind Speed:	70m/s	IP Protection Level:	Equipment In Engine Room: IP54,Equipment Outside Engine Room: IP66
Radiation Protection:	CISPR 11
High Light:	Modbus RTU Wind Lidars , 70m/S Survival Wind Speed Lidar , Molas NL lidar for wind turbines

Wind Lidar Survival wind speed 70m/s

1,Summary

Molas NL provides measurement and recording of wind farm information data 400m in front of the wind turbine. The main control system connected to the wind turbine can realize functions in various automatic operation scenarios such as yaw control, load optimization and power curve test.

2,Performance Parameter

Performance
Measure the distance	50~200m
Number of measured sections	10
Sampling frequency	4Hz
Wind speed measurement range	-50 ~50m/s
Wind direction measurement range	-180°～180°
Wind speed accuracy	0.1m/s
Accuracy of wind direction	±0.5°
Beam pointing accuracy	±0.1°

Other
Communication mode	Profibus DP/Modbus TCP/ Modbus RTU/CANOPEN
Power supply	100 VAC~240VAC ±10% 50Hz~60Hz ±6%
Power	≤300W
Operating temperature range	-40℃～60℃
Survival temperature range	-40 ℃ ~ 65 ℃ (power off),-45 ℃ ~ 65 ℃ (charged)
Working humidity range	0～100% RH
Survival wind speed	70m/s
Working acceleration range	-0.5g～0.5g
IP protection level	Equipment in engine room: IP54,Equipment outside engine room: IP66
Anticorrosive	ISO C5
Radiation protection	CISPR 11
Weight	OH约23Kg,DU约6Kg
