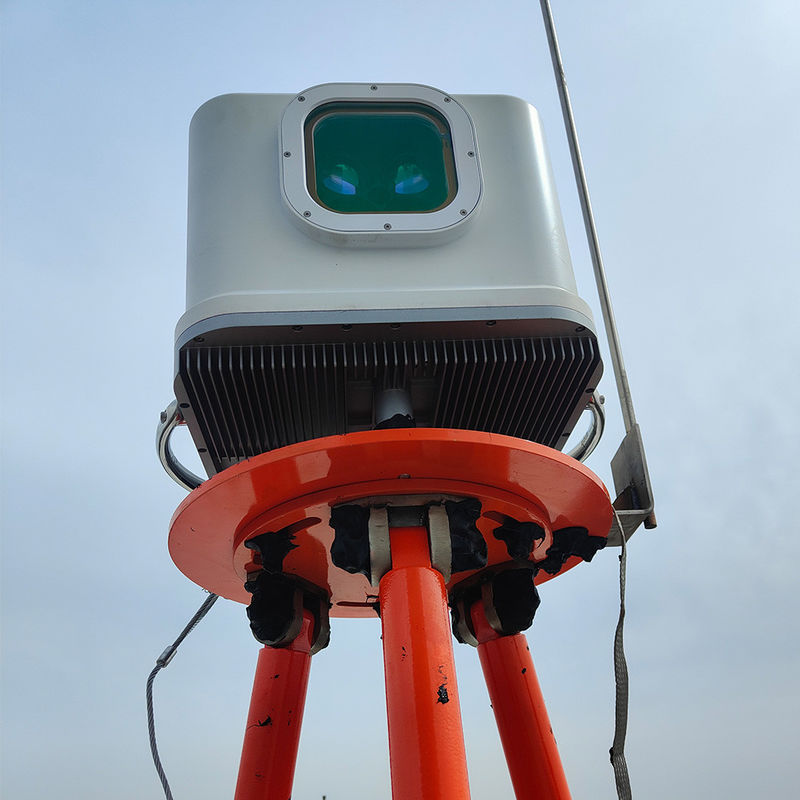

240VAC 50Hz Molas NL Wind Iris Lidar 50m To 200m Lidar Wind Measurement

Name: 240VAC 50Hz Molas NL Wind Iris Lidar 50m To 200m Lidar Wind Measurement
Brand: Nanjing Movelaser Co., Ltd.
SKU: Molas NL
Price: 5 USD
Availability: InStock

Brand Name:	MOVELASER
Model Number:	Molas NL
MOQ:	1 set
Price:	Dollar 5W$+ （Price consultation customer service）
Delivery Time:	1-2 months
Payment Terms:	L/C, D/A, D/P, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

DNV GL , Intertek , RISO Dtu

Measure The Distance:

50~200m

Number Of Measured Sections:

Sampling Frequency:

4Hz

Wind Speed Measurement Range:

-50 ~50m/s

Wind Direction Measurement Range:

-180°～180°

Wind Speed Accuracy:

0.1m/s

Accuracy Of Wind Direction:

±0.5°

Beam Pointing Accuracy:

±0.1°

Working Humidity Range:

0～100% RH

Survival Wind Speed:

70m/s

Working Acceleration Range:

-0.5g～0.5g

IP Protection Level:

Equipment In Engine Room: IP54,Equipment Outside Engine Room: IP66

Anticorrosive:

ISO C5

Radiation Protection:

CISPR 11

Weight:

OHabout23Kg,DUabout6Kg

Packaging Details:

Air Box

Supply Ability:

200 set ，1 month

Highlight:

Molas NL Wind Iris Lidar

Wind Iris Lidar 50m

240VAC 200m Lidar Wind Measurement

Product Description

Working Voltage And Frequency 240VAC 50Hz

1,Summary

Open the installation file "MolasNL Nacelle-based Lidar Client V1.0.4.X.exe" for installation. As shown below.

2,Performance Parameter

Performance
Measure the distance	50~200m
Number of measured sections	10
Sampling frequency	4Hz
Wind speed measurement range	-50 ~50m/s
Wind direction measurement range	-180°～180°
Wind speed accuracy	0.1m/s
Accuracy of wind direction	±0.5°
Beam pointing accuracy	±0.1°

Other
Communication mode	Profibus DP/Modbus TCP/ Modbus RTU/CANOPEN
Power supply	100 VAC~240VAC ±10% 50Hz~60Hz ±6%
Power	≤300W
Operating temperature range	-40℃～60℃
Survival temperature range	-40 ℃ ~ 65 ℃ (power off),-45 ℃ ~ 65 ℃ (charged)
Working humidity range	0～100% RH
Survival wind speed	70m/s
Working acceleration range	-0.5g～0.5g
IP protection level	Equipment in engine room: IP54,Equipment outside engine room: IP66
Anticorrosive	ISO C5
Radiation protection	CISPR 11
Weight	OH约23Kg,DU约6Kg
