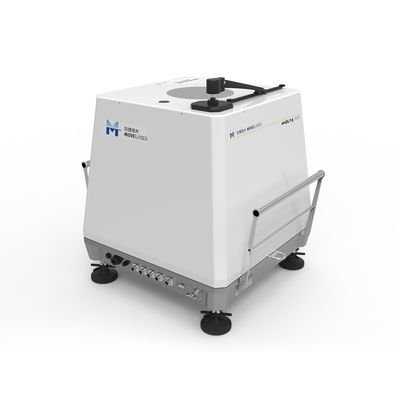

0-360 Direction Molas B300 Wind Lidar System 70W Wind Resource Assessment

0-360 Direction Molas B300 Wind Lidar System 70W Wind Resource Assessment
0-360 Direction Molas B300 Wind Lidar System 70W Wind Resource Assessment

Large Image :  0-360 Direction Molas B300 Wind Lidar System 70W Wind Resource Assessment

Product Details:
Place of Origin: China
Brand Name: MOVELASER
Certification: WINDGUARD / RISO Dtu / DNV GL / Intertek
Model Number: Molas B300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Dollar 6W$+ (Price consultation customer service)
Packaging Details: Air Box
Delivery Time: 1-2 months
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 200 set ,1 month
Detailed Product Description
Measuring Range: 30-300 Meters Measure The Number Of Layers: 12
Wind Speed Accuracy: 0.1m/s Protection Class: IP65 (core Module) / IP54 (complete Machine)
Measuring Wind Speed Range: 0~75m/s Size: 520*420*550mm
Sampling Rate: 1Hz Wind Direction Measurement Accuracy:
Wind Direction Measurement Range: 0~360° Sweep Cone Angle: 28°
Powered By: 24V DC / 100~240V Power: 70W
Weight: <50kg
High Light:

Molas B300 Wind Lidar System

,

360 Direction Wind Lidar System

,

70W Wind Resource Assessment Lidar

Molas B300 Wind resource assessment Wind Lidar System



1,Product introduction



The four core modules of Molas B300 series are independently designed from fiber laser radar transmitter, laser transceiver system, high-speed data acquisition system, and high-precision data processing software.



The Molas B300 series, an all-fiber Doppler wind lidar independently developed by MOVELASER, is based on the Doppler frequency effect and uses eight-beam VAD scanning vector synthesis technology to measure the wind speed and direction 30-300m above the radar. Parameters such as temperature, humidity, air pressure, etc. are measured through the sensor module. Molas B300 has high measurement accuracy, stable system performance, easy maintenance, and safe and reliable data. It has passed the test and certification of the world's authoritative wind power evaluation agency WINDGUARD, China Meteorological Administration and CE. It has a wide range of applications and can be used in scenarios such as wind resource assessment, post-assessment of wind farms, wind power prediction systems, wind farm operation management, atmospheric physics research, and meteorological detection and forecasting.



2,Product parameters

General parameters
Powered by 24V DC / 100~240V
Power 70W
Size 520*420*550mm
Weight <50kg
Range of working temperature -40℃ ~ 50℃
Operating humidity range 0% to 100%
Protection class IP65 (core module) / IP54 (complete machine)
Eye safety Class 1M (EN60825-1)



Measurement parameters
Measuring distance 30~300m
Measurement layer 12
Sampling rate 1Hz
Wind speed measurement accuracy 0.1m/s
Wind direction measurement accuracy
Wind speed measurement range 0~75m/s
Wind direction measurement range 0~360°
Sweep cone angle 28°



 3,Application field



Wind resource assessment / Micro site selection and review / Wind power prediction system

Wind farm / wind farm performance evaluation / Weather detection
