Measuring Range: | 30-300 Meters | Measure The Number Of Layers: | 12 |
---|---|---|---|
Wind Speed Accuracy: | 0.1m/s | Protection Class: | P65 (core Module) / IP54 (complete Machine) |
Measuring Wind Speed Range: | 0~75m/s | Size: | 520*420*550mm |
Sampling Rate: | 1Hz | Powered By: | 24V DC / 100~240V |
Power: | 70W | Weight: | <50kg |
High Light: | Speed Accuracy 0.1m/S Wind Lidar,0.1m/S Wind Lidar System,Doppler Lidar Wind 70W |
Speed Accuracy 0.1m/s Wind Lidar
1,Product introduction
Each core module has a high degree of matching, which ensures the unified coordination and Data and information security has reached the international advanced level.

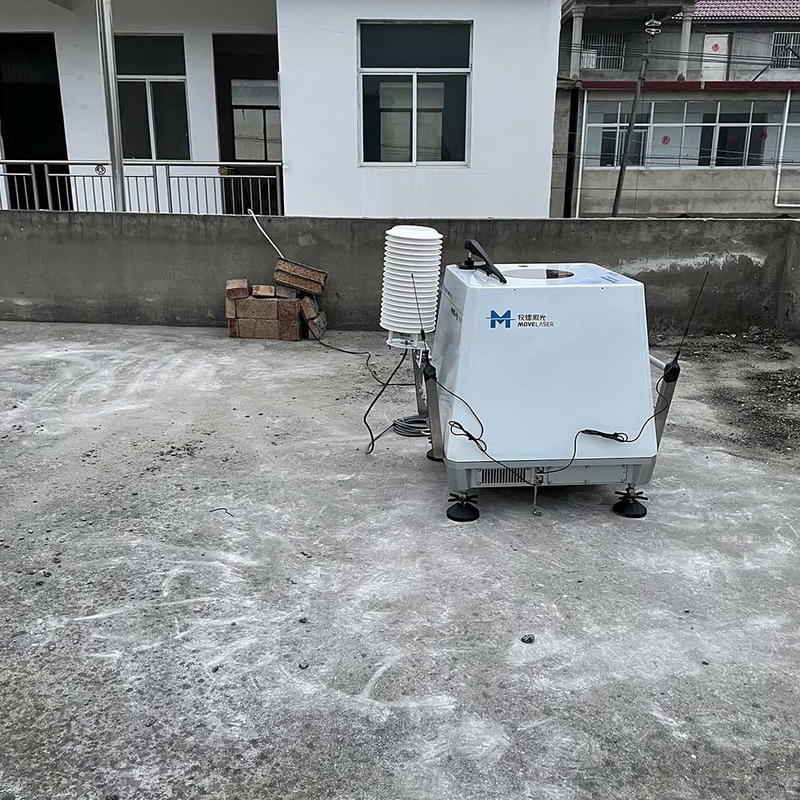

The Molas B300 series, an all-fiber Doppler wind lidar independently developed by MOVELASER, is based on the Doppler frequency effect and uses eight-beam VAD scanning vector synthesis technology to measure the wind speed and direction 30-300m above the radar. Parameters such as temperature, humidity, air pressure, etc. are measured through the sensor module. Molas B300 has high measurement accuracy, stable system performance, easy maintenance, and safe and reliable data. It has passed the test and certification of the world's authoritative wind power evaluation agency WINDGUARD, China Meteorological Administration and CE. It has a wide range of applications and can be used in scenarios such as wind resource assessment, post-assessment of wind farms, wind power prediction systems, wind farm operation management, atmospheric physics research, and meteorological detection and forecasting.
2,Product parameters
Powered by | 24V DC / 100~240V |
Power | 70W |
Size | 520*420*550mm |
Weight | <50kg |
Range of working temperature | -40℃ ~ 50℃ |
Operating humidity range | 0% to 100% |
Protection class | IP65 (core module) / IP54 (complete machine) |
Eye safety | Class 1M (EN60825-1) |
Measuring distance | 30~300m |
Measurement layer | 12 |
Sampling rate | 1Hz |
Wind speed measurement accuracy | 0.1m/s |
Wind direction measurement accuracy | 1° |
Wind speed measurement range | 0~75m/s |
Wind direction measurement range | 0~360° |
Sweep cone angle | 28° |
3,Application field
Wind resource assessment / Micro site selection and review / Wind power prediction system
Wind farm / wind farm performance evaluation / Weather detection
