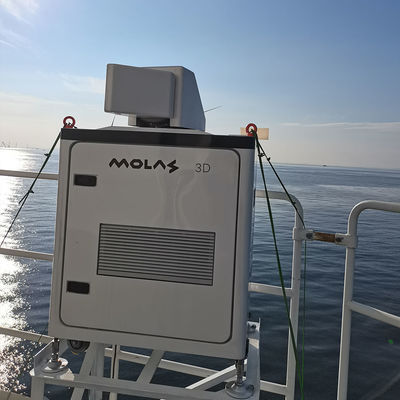

Modbus TCP 5%-100% RH Humidity Wind Lidar Without Condensation

Name: Modbus TCP 5%-100% RH Humidity Wind Lidar Without Condensation
Brand: Nanjing Movelaser Co., Ltd.
SKU: Molas 3D
Price: 13 USD
Availability: InStock

Brand Name:	MOVELASER
Model Number:	Molas 3D
MOQ:	1 set
Price:	Dollar 13W$+ （Price consultation customer service）
Delivery Time:	1-2 months
Payment Terms:	L/C, D/A, D/P, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Line-of-sight Detection Distance:

10km (typical Case)

Distance Resolution:

30m/45m/60m/75m Optional

Accumulation Time:

0.5s/1s/2s/4s/8s Optional

Radial Wind Speed Measurement Range:

-75~+75 M/s

Radial Wind Speed Measurement Accuracy:

0.1m/s

Number Of Distance Layers:

Up To 300

Horizontal Scan Range:

360° × N

Vertical Scan Range:

-10°~190°

Pointing Accuracy:

0.1°

Scanning Method:

PPI , RHI , DBS , LOS And Program Scan

Real-time Data Output Form:

Profibus DP/Modbus TCP/CAN Optional

Telecommunication:

1000BASE-TX Or 4G Remote Access

Operating Temperature And Humidity:

-25~+50℃ (extendable To -40~+60℃), 5%~100% RH

IP Protection Class:

Housing IP54, Core Module IP66

Running Power Consumption:

≤1kW

110VAC±20% Or 220VAC±20%, 50Hz±10%

Size:

800mm*650mm*11 30mm

Packaging Details:

Air Box

Supply Ability:

200 set ，1 month

Highlight:

100% RH Humidity Wind Lidar

5% RH Humidity Wind Lidar

Modbus TCP lidar wind

Product Description

Wind Lidar Storage humidity 5%~100% RH without condensation

1,Product introduction

The application method and main points of Molas 3D in fan wake measurement:
c) Visualization of the fan wake, and measurement of the dynamic change of the wake
d) PPI method, measure the horizontal direction fan wake in a wide range
e) RHI method, measure wake slices

2,Performance parameters

Basic parameters
Line-of-sight detection distance	10km (typical case)
Distance resolution	30m/45m/60m/75m optional
Accumulation time	0.5s/1s/2s/4s/8s optional
Radial wind speed measurement range	-75~+75 m/s
Radial wind speed measurement accuracy	0.1m/s
Number of distance layers	up to 300
Horizontal scan range	360° × n
Vertical scan range	-10°~190°
Pointing accuracy	0.1°
Scanning method	PPI , RHI , DBS , LOS and Program Scan
Real-time data output form	Profibus DP/Modbus TCP/CAN optional
Telecommunication	1000BASE-TX or 4G remote access
Environmental parameters
Operating temperature and humidity	-25~+50℃ (extendable to -40~+60℃), 5%~100% RH
IP protection class	Housing IP54, core module IP66
Anticorrosion grade	C4
Survival wind speed	70m/s (fixed by foot or by wire rope)
Working altitude	≤3500m
Other parameters
Running power consumption	≤1kW
Powered by	110VAC±20% or 220VAC±20%, 50Hz±10%
Size	800mm650mm11 30mm
Weight	≤150kg
Accessibility
GNSS functionality	Support GPS/Beidou
Time service	NTP timing or GPS/Beidou timing

3,Schematic diagram of 3D scanning Doppler wind Lidar

Modbus TCP 5%-100% RH Humidity Wind Lidar Without Condensation 0
