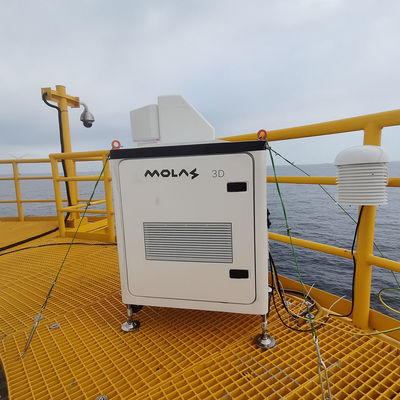

ISO 9223 C4 Anti Corrosion Wind Measurement Lidar Molas 3D Wind Lidar System

Name: ISO 9223 C4 Anti Corrosion Wind Measurement Lidar Molas 3D Wind Lidar System
Brand: Nanjing Movelaser Co., Ltd.
SKU: Molas 3D
Price: 13 USD
Availability: InStock

Brand Name:	MOVELASER
Model Number:	Molas 3D
MOQ:	1 set
Price:	Dollar 13W$+ （Price consultation customer service）
Delivery Time:	1-2 months
Payment Terms:	L/C, D/A, D/P, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Line-of-sight Detection Distance:

10km (typical Case)

Distance Resolution:

30m/45m/60m/75m Optional

Accumulation Time:

0.5s/1s/2s/4s/8s Optional

Radial Wind Speed Measurement Range:

-75~+75 M/s

Radial Wind Speed Measurement Accuracy:

0.1m/s

Running Power Consumption:

≤1kW

110VAC±20% Or 220VAC±20%, 50Hz±10%

Size:

800mm*650mm*11 30mm

Packaging Details:

Air Box

Supply Ability:

200 set ，1 month

Highlight:

C4 Anti Corrosion Wind Measurement Lidar

ISO 9223 Wind Measurement Lidar

Molas 3D Wind Lidar System

Product Description

Corrosion protection class ISO 9223:2012 C4 Wind Lidar

1,Product introduction

The wind shear detection application of 3D wind LiDAR system is applied to Hong Kong International Airport for the first time. The terrain conditions of Hong Kong International Airport are complex. 70% of the wind shear is caused by the terrain. On average, one flight out of 500 flights reported encountering obvious wind shear. After the application of lidar, combined with the aircraft glide path scanning strategy developed by the Hong Kong Observatory, the successful detection rate of wind shear at the airport has increased to more than 76%, and the daily throughput of the airport has increased by 30%.

2,Performance parameters

Basic parameters
Line-of-sight detection distance	10km (typical case)
Distance resolution	30m/45m/60m/75m optional
Accumulation time	0.5s/1s/2s/4s/8s optional
Radial wind speed measurement range	-75~+75 m/s
Radial wind speed measurement accuracy	0.1m/s
Number of distance layers	up to 300
Horizontal scan range	360° × n
Vertical scan range	-10°~190°
Pointing accuracy	0.1°
Scanning method	PPI , RHI , DBS , LOS and Program Scan
Real-time data output form	Profibus DP/Modbus TCP/CAN optional
Telecommunication	1000BASE-TX or 4G remote access
Environmental parameters
Operating temperature and humidity	-25~+50℃ (extendable to -40~+60℃), 5%~100% RH
IP protection class	Housing IP54, core module IP66
Anticorrosion grade	C4
Survival wind speed	70m/s (fixed by foot or by wire rope)
Working altitude	≤3500m
Other parameters
Running power consumption	≤1kW
Powered by	110VAC±20% or 220VAC±20%, 50Hz±10%
Size	800mm650mm11 30mm
Weight	≤150kg
Accessibility
GNSS functionality	Support GPS/Beidou
Time service	NTP timing or GPS/Beidou timing

3,Schematic diagram of 3D scanning Doppler wind Lidar

ISO 9223 C4 Anti Corrosion Wind Measurement Lidar Molas 3D Wind Lidar System
