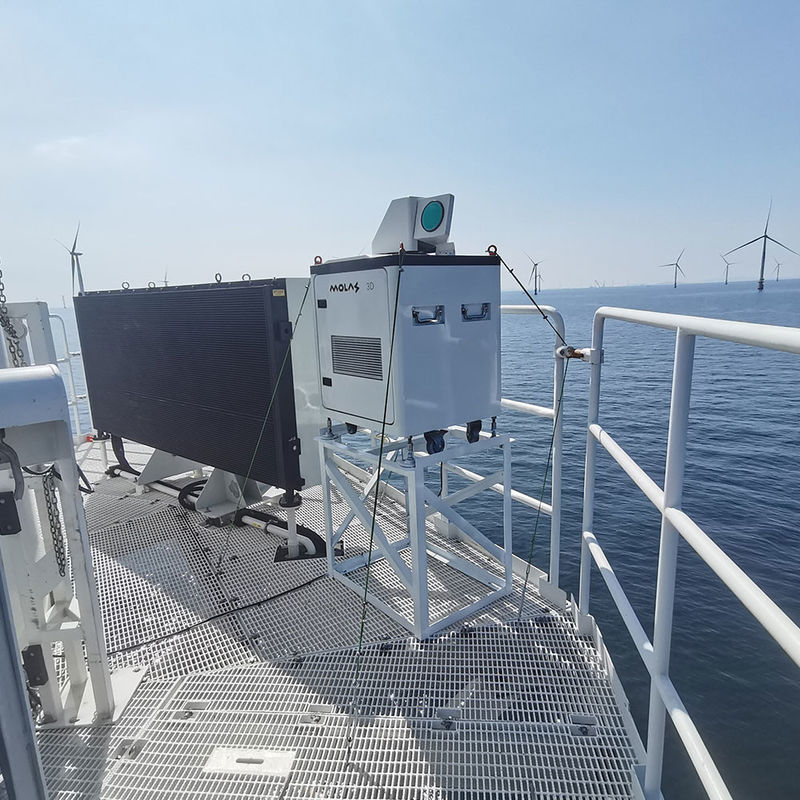

IEC60068-2-27 Wind Measurement Lidar Transportation Random Vibration Wind Lidar

Brand Name:	MOVELASER
Model Number:	Molas 3D
MOQ:	1 set
Price:	Dollar 13W$+ （Price consultation customer service）
Delivery Time:	1-2 months
Payment Terms:	L/C, D/A, D/P, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Distance Resolution:

30m/45m/60m/75m Optional

110VAC±20% Or 220VAC±20%, 50Hz±10%

Packaging Details:

Air Box

Supply Ability:

200 set ，1 month

Highlight:

IEC60068 2 27 Wind Measurement Lidar

Transportation Vibration Wind Measurement Lidar

Random Vibration Wind Lidar

Product Description

Transportation vibration IEC60068-2-27:2008 Random vibration Wind Lidar

1,Product introduction

Air quality testing field
1. Real-time 3D information of plume diffusion to track emission sources
2. Optimizing dust emission control in the mining industry

2,Performance parameters

Basic parameters
Line-of-sight detection distance	10km (typical case)
Distance resolution	30m/45m/60m/75m optional
Accumulation time	0.5s/1s/2s/4s/8s optional
Radial wind speed measurement range	-75~+75 m/s
Radial wind speed measurement accuracy	0.1m/s
Number of distance layers	up to 300
Horizontal scan range	360° × n
Vertical scan range	-10°~190°
Pointing accuracy	0.1°
Scanning method	PPI , RHI , DBS , LOS and Program Scan
Real-time data output form	Profibus DP/Modbus TCP/CAN optional
Telecommunication	1000BASE-TX or 4G remote access
Environmental parameters
Operating temperature and humidity	-25~+50℃ (extendable to -40~+60℃), 5%~100% RH
IP protection class	Housing IP54, core module IP66
Anticorrosion grade	C4
Survival wind speed	70m/s (fixed by foot or by wire rope)
Working altitude	≤3500m
Other parameters
Running power consumption	≤1kW
Powered by	110VAC±20% or 220VAC±20%, 50Hz±10%
Size	800mm650mm11 30mm
Weight	≤150kg
Accessibility
GNSS functionality	Support GPS/Beidou
Time service	NTP timing or GPS/Beidou timing
