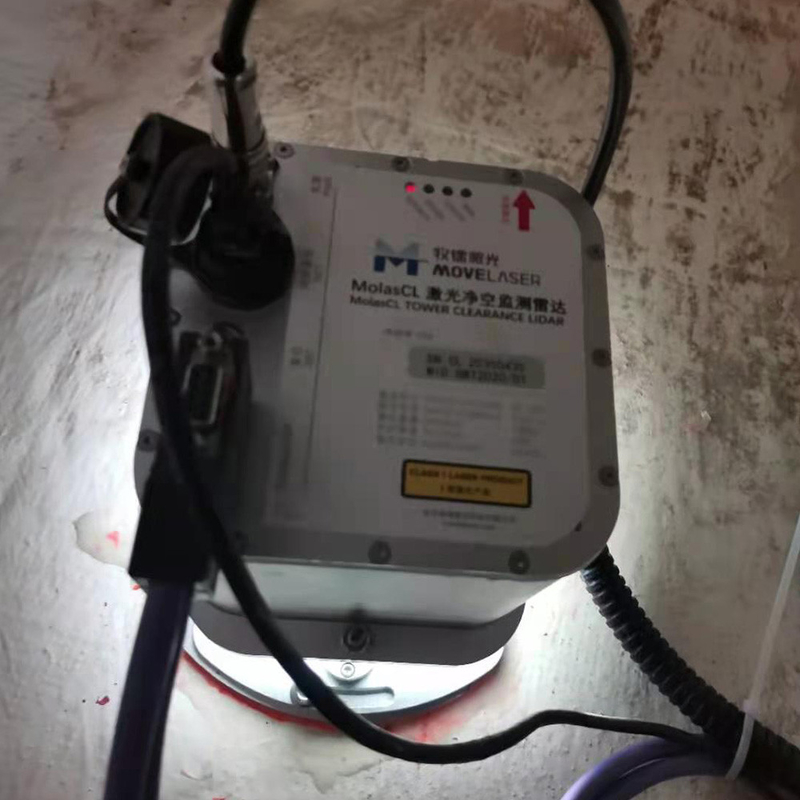

1ToF Wavelength 905nm Wind Measurement Lidar 0.2m Accuracy

1ToF Wavelength 905nm Wind Measurement Lidar 0.2m Accuracy
1ToF Wavelength 905nm Wind Measurement Lidar 0.2m Accuracy

Large Image :  1ToF Wavelength 905nm Wind Measurement Lidar 0.2m Accuracy

Product Details:
Place of Origin: China
Brand Name: MOVELASER
Model Number: Molas CL
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Dollar 1W$+ (Price consultation customer service)
Packaging Details: Air Box
Delivery Time: 1-2 months
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 200 set ,1 month
Detailed Product Description
Name: Wind Measurement Lidar Ranging Method: 1ToF
Detection Distance: 200m@90% Reflectivity/ 140m@10% Reflectivity Range Resolution: ≤0.1m
Measurement Accuracy: ±0.2m
High Light:

Wavelength 905nm Wind Measurement Lidar

,

Wind Measurement Lidar 0.2m Accuracy

,

1ToF Wind Lidars

Wavelength 905nm Wind Lidar



1,Product introduction



The requirements of the protocol and the field bus send the data to the fan master through the field bus interface.





2,Technical Data Sheet



Ranging index
Ranging method 1ToF
Detection distance 200m@90% reflectivity/ 140m@10% reflectivity
Range resolution ≤0.1m
Measurement accuracy ±0.2m
Repeated measurement accuracy ±0.2m
Resistance to ambient light 100Klux
Optical index
Wavelength 905nm
Repeat frequency 20KHz per channel
Laser safety level Class 1
Environmental adaptability
Range of working temperature -40℃~+60℃
Survival temperature range -45℃~+65℃
Working humidity range 0%~100% RH
Enclosure rating IP65 (or according to specific needs)
Working acceleration range -0.5g ~ 0.5g
Beam pointing
Luminous flux 1
Luminous flux 2 2.05°±0.2°
Luminous flux 3 4.09°±0.2°
Output measurement results
Real-time
data products
Device ID, directly measure distance, return light intensity,
Data valid flag, system status
Fieldbus Profibus DP / Modbus RTU / CANopen
Three fieldbus protocols, and RS485 communication can be customized
Qther
Operating power consumption Within 60W
Supply voltage and maximum current DC 24V, 3A
Size 200×200×250mm
