| Measuring Range: | 30-300 Meters | Measure The Number Of Layers: | 12 |
|---|---|---|---|
| Wind Speed Accuracy: | 0.1m/s | Protection Class: | IP67 (complete Machine) |
| Measuring Wind Speed Range: | 0~75m/s | Size: | 682mm X 520mm X 641mm |
| Range Of Working Temperature: | -40℃ ~ 50℃(with Over Temperature Protection) | Operating Humidity Range: | 0% To 100% |
| Eye Safety: | Class 1M (EN60825-1) | Data Format: | ASCII |
| Data Output: | Horizontal Wind Speed, Vertical Wind Speed, Wind Direction Timestamp, GPS, Temperature, Humidity And Pressure, Statistics | Communication: | Ethernet (100BASE-TX) 3G/4G WiFi, Satellite Communication (optional) |
| High Light: | MOVELASER Doppler Lidar Wind,IP67 Grounded doppler lidar wind,Data Format ASCII Wind Lidar |
||
MOVELASER Wind Lidar Data format ASCII
1,Product introduction

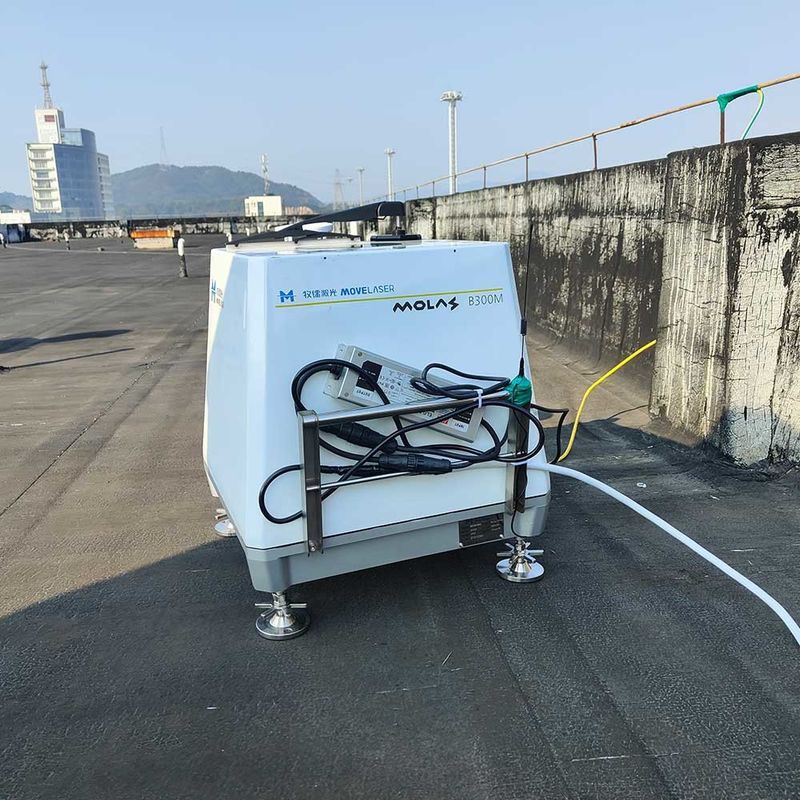

Molas B300M external interface
Switch: switch button, press it to start the device, and the light indicator can display the status of the entire radar.
Network port: The network interface can be used for the connection of the radar network; the connecting network cable can be connected to the computer, and the radar parameter setting, status observation and data transmission can be performed through the radar client software.
Fuse: used to avoid serious damage to the radar due to unstable power supply or short circuit.
Power supply: The power interface is connected to the radar power supply to supply power to the radar machine.
Temperature, humidity and pressure: The temperature and humidity sensor interface is connected to the temperature, humidity and pressure sensor.
Short message: Beidou short message interface, used to transmit radar status data and ten-minute average wind speed data (requires special order).
Anemometer: Anemometer interface, low-altitude wind speed compensation (requires special order).
Compass: Attitude data interface, used to obtain the real-time attitude of the radar (special order is required).
Field bus: output data by serial port (special order required).
Ground: The device is grounded.
2,Product parameters
| Powered by | 24V DC / 100~240V |
| Power | 70W |
| Size | 682mm x 520mm x 641mm |
| Weight | <75kg |
| Range of working temperature | -40℃ ~ 50℃(with over temperature protection) |
| Operating humidity range | 0% to 100% |
| Protection class | IP67 (complete machine) |
| Eye safety | Class 1M (EN60825-1) |
| Measuring distance | 30~300m |
| Measurement layer | 12 |
| Sampling rate | 1Hz |
| Wind speed measurement accuracy | 0.1m/s |
| Wind direction measurement accuracy | 1° |
| Wind speed measurement range | 0~75m/s |
| Wind direction measurement range | 0~360° |
| Sweep cone angle | 28° |
| Data output | Horizontal wind speed, vertical wind speed, wind direction Timestamp, GPS, temperature, humidity and pressure, statistics |
| Data Format | ASCII |
| Communication | Ethernet (100BASE-TX) 3G/4G WiFi, satellite communication (optional) |
3,Application scenarios
① Early detection of wind resources
② Offshore construction and operation and maintenance wind power monitoring
③ Prediction of wind power in offshore wind farms
