| Detection Distance: | 200m@90% Reflectivity/ 140m@10% Reflectivity | Range Resolution: | ≤0.1m |
|---|---|---|---|
| Measurement Accuracy: | ±0.2m | Repeated Measurement Accuracy: | ±0.2m |
| Resistance To Ambient Light: | 100Klux | Wavelength: | 905nm |
| Range Of Working Temperature: | -40℃~+60℃ | Survival Temperature Range: | -45℃~+65℃ |
| Working Humidity Range: | 0%~100% RH | ||
| High Light: | tower clearance wind measurement lidar,200m wind measurement lidar,90% reflectivity lidar wind measurement |
||
Wind Lidar Detection Distance 200m@90% reflectivity / 140m@10% reflectivity Molas CL
| Product introduction
Molas CL tower clearance lidar is a kind of lidar that monitors the clearance distance of blade tip in real time.
| Application scenarios
When the monitored blade clearance value is close to the specified minimum clearance value,the main controller of the fan unit can take protective measures immediately,Such as deceleration, retraction, etc. The application of tower clearance lidar on the existing units can prevent tower sweeping, lifting the power limit of dangerous units and increasing power generation.
| Product parameters
| Ranging index | |
| Ranging method | 1ToF |
| Detection distance | 200m@90% reflectivity/ 140m@10% reflectivity |
| Range resolution | ≤0.1m |
| Measurement accuracy | ±0.2m |
| Repeated measurement accuracy | ±0.2m |
| Resistance to ambient light | 100Klux |
| Optical index | |
| Wavelength | 905nm |
| Repeat frequency | 20KHz per channel |
| Laser safety level | Class 1 |
| Environmental adaptability | |
| Range of working temperature | -40℃~+60℃ |
| Survival temperature range | -45℃~+65℃ |
| Working humidity range | 0%~100% RH |
| Enclosure rating | IP65 (or according to specific needs) |
| Working acceleration range | -0.5g ～ 0.5g |
| Beam pointing | |
| Luminous flux 1 | 0° |
| Luminous flux 2 | 2.05°±0.2° |
| Luminous flux 3 | 4.09°±0.2° |
| Output measurement results | |
| Real-time data products |
Device ID, directly measure distance, return light intensity, Data valid flag, system status |
| Fieldbus | Profibus DP / Modbus RTU / CANopen Three fieldbus protocols, and RS485 communication can be customized |
| Product Features
Combining the advantages of high repetition rate of MolasCL laser pulse and its high-performance computing platform
The advantage of large flux data processing can greatly improve the data efficiency, reduce the false alarm rate and maintain high reality
Timeliness, which helps the main control of the wind turbine to react quickly and avoid affecting the power generation due to false alarm,

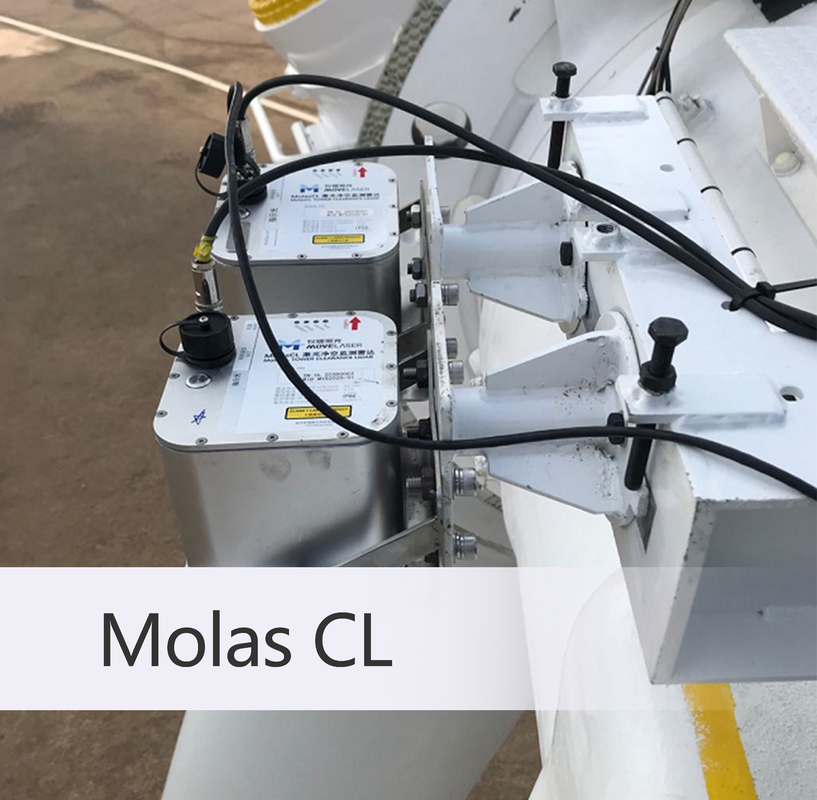

| Product Image
