Layer 10 Wind Iris Lidar Molas Nl Laser Remote Sensing

Name: Layer 10 Wind Iris Lidar Molas Nl Laser Remote Sensing
Brand: Nanjing Movelaser Co., Ltd.
SKU: Molas NL
Price: 5 USD
Availability: InStock

Brand Name:	MOVELASER
Model Number:	Molas NL
MOQ:	1 set
Price:	Dollar 5W$+ （Price consultation customer service）
Delivery Time:	1-2 months
Payment Terms:	L/C, D/A, D/P, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

DNV GL , Intertek , RISO Dtu

Measurement Layer:

Wind Direction Accuracy:

0.5°

Sampling Frequency:

4Hz

Wind Speed Measurement Range:

-50 ~50m/s

Wind Speed Accuracy:

0.1m/s

Communication Mode:

Profibus DP/Modbus TCP/ Modbus RTU/CANOPEN

Packaging Details:

Air Box

Supply Ability:

200 set ，1 month

Highlight:

layer 10 wind iris lidar

laser remote sensing wind iris lidar

laser remote sensing wind measurement lidar

Product Description

Lidar measurement Measurement Layer 10 wind lidar Molas NL

| Product introduction

Molas NL series is a nacelle wind lidar independently developed for the intelligent application scheme of wind power customers. It is a laser remote sensing wind measurement device installed on the top of the wind turbine nacelle. The lidar adopts the coherent detection system, and based on the principle of laser Doppler frequency shift, realizes the accurate measurement of 50m-200m / 400m / 750m vector wind field in front of the fan impeller.

| Application scenarios

For fan testing, such as blade load analysis, power curve testing, wake analysis, etc.

| Product parameters 参数

Performance
Measure the distance	50~200m
Measurement Layer	10
Sampling frequency	4Hz
Wind speed measurement range	-50 ~50m/s
Wind direction measurement range	-180°～180°
Wind speed accuracy	0.1m/s
Accuracy of wind direction	±0.5°
Laser form	pulse wave

| Product Features

True front wind measurement
Real time data transmission and local storage
Accuracy up to 0.1m/s and 0.5°
high sample rate
Multiple distance layers
large range

| Product Image

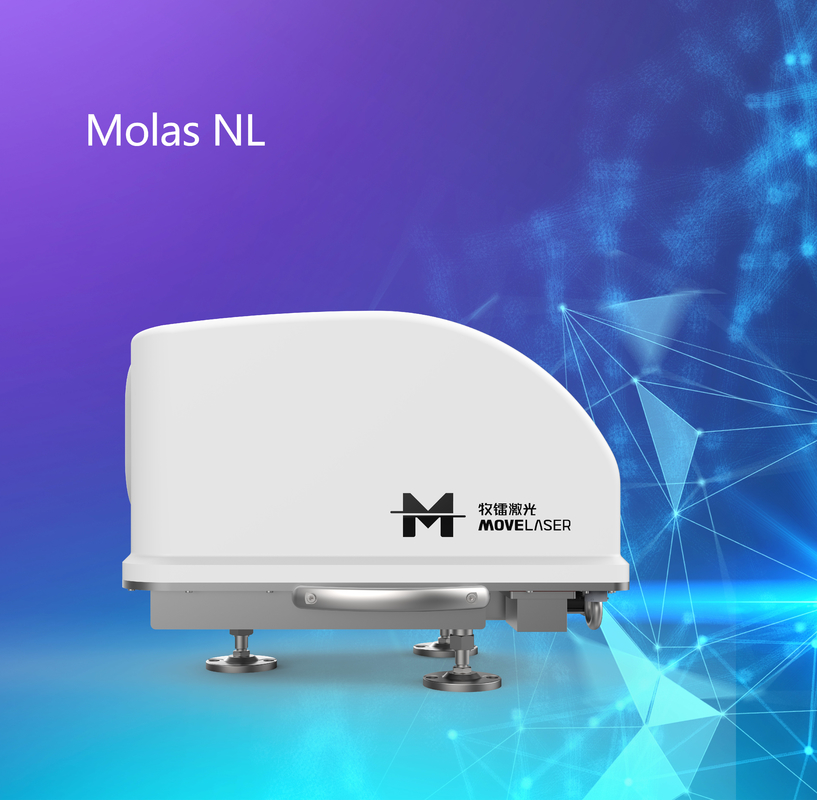

Layer 10 Wind Iris Lidar Molas Nl Laser Remote Sensing
