4 Beams Molas Nl Nacelle Lidar Rental Contactless

Name: 4 Beams Molas Nl Nacelle Lidar Rental Contactless
Brand: Nanjing Movelaser Co., Ltd.
SKU: Molas NL
Price: 5 USD
Availability: InStock

Brand Name:	MOVELASER
Model Number:	Molas NL
MOQ:	1 set
Price:	Dollar 5W$+ （Price consultation customer service）
Delivery Time:	1-2 months
Payment Terms:	L/C, D/A, D/P, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

DNV GL , Intertek , RISO Dtu

Range:

50m ~200m(NL200) 50m ~400m(NL400) 50m ~750m(NL750)

Measurement Layer:

Sampling Frequency:

4Hz

Wind Speed Measurement Range:

-50 ~50m/s

Wind Speed Accuracy:

0.1m/s

Survival Wind Speed:

70m/s

Packaging Details:

Air Box

Supply Ability:

200 set ，1 month

Highlight:

4 beams nacelle lidar

contactless nacelle lidar

4 beams nacelle mounted lidar

Product Description

4 beams Molas NL nacelle wind lidar measurement lidar rental

| Product introduction

Molas NL is based on the principle of fully coherent Doppler detection for wind measurement, and its schematic diagram is shown in Figure 3. The pulse signal generated by the fiber laser is emitted into the atmosphere to be measured through an optical antenna, and interacts with the aerosol particles to generate a backscattered signal containing velocity information. The optical antenna receives the backscattered signal, beats it with the internal local oscillator light of the system, and ultimately converts it into an electrical signal. After the signal is amplified, the digitization of the electrical signal is completed by an analog-to-digital converter A/D.

| Application scenarios

Correct yaw error, increase power generation, increase annual power generation by 2%-4%

| Product parameters 参数

Performance
Measure the distance	50~200m
Measurement Layer	10
Sampling frequency	4Hz
Wind speed measurement range	-50 ~50m/s
Wind direction measurement range	-180°～180°
Wind speed accuracy	0.1m/s
Accuracy of wind direction	±0.5°
Laser form	pulse wave

| Product Features

Four beam three-dimensional measurement
Intelligent configuration
Easy to maintain
High applicability
High compatibility

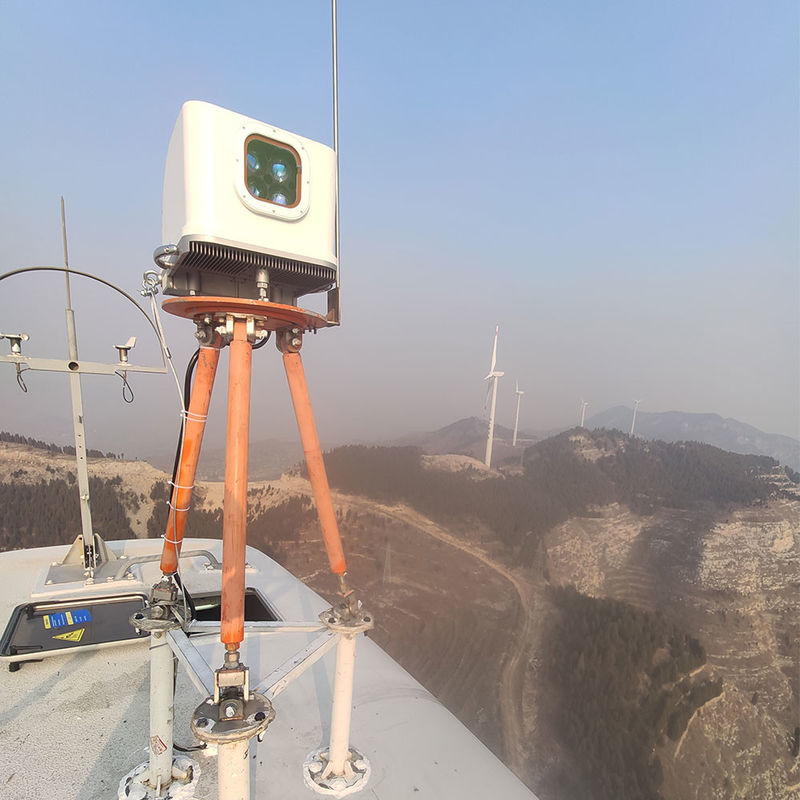

| Product Image

4 Beams Molas Nl Nacelle Lidar Rental Contactless
