time of flight Wind Lidar Molas Nl 10 Simultaneous Measurements Ranges

Name: time of flight Wind Lidar Molas Nl 10 Simultaneous Measurements Ranges
Brand: Nanjing Movelaser Co., Ltd.
SKU: Molas NL
Price: 5 USD
Availability: InStock

Brand Name:	MOVELASER
Model Number:	Molas NL
MOQ:	1 set
Price:	Dollar 5W$+ （Price consultation customer service）
Delivery Time:	1-2 months
Payment Terms:	L/C, D/A, D/P, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

DNV GL , Intertek , RISO Dtu

Range:

50m ~200m(NL200) 50m ~400m(NL400) 50m ~750m(NL750)

Sampling Frequency:

4Hz

Beam Pointing Accuracy:

±0.1°

Survival Wind Speed:

70m/s

Measurement Layer:

Simultaneously Measure And Output 10 Distance Layers

Anticorrosive:

ISO C5

Packaging Details:

Air Box

Supply Ability:

200 set ，1 month

Highlight:

integrated remote intelligence system wind lidar

time of flight wind lidar

iris lidar wind measurement

Product Description

Molas NL 10 simultaneous measurements ranges wind lidar

| Product introduction

Molas NL nacelle wind lidar system provides measurement and recording of wind field information data in front of wind turbines 50m-200m / 400m / 750m, and is connected to the main control system of wind turbines, so as to realize feedforward control, optimize load and increase power generation. It can also be applied to various automated operation scenarios such as yaw correction, power curve test, wake analysis, and intelligent field group control.

| Application scenarios

True front wind measurement
Real time data transmission and local storage
Accuracy up to 0.1m/s and 0.5°
high sample rate
Multiple distance layers
large range

| Product parameters


Measure the distance	50~200m
Number of measured sections	10
Sampling frequency	4Hz
Wind speed measurement range	-50 ~50m/s
Wind direction measurement range	-180°～180°
Wind speed accuracy	0.1m/s
Accuracy of wind direction	±0.5°
Measurement layer	Simultaneously measure and output 10 distance layers

Other
Communication mode	Profibus DP/Modbus TCP/ Modbus RTU/CANOPEN
Power supply	100 VAC~240VAC ±10% 50Hz~60Hz ±6%
Power	≤300W
Operating temperature range	-40℃～60℃
Survival temperature range	-40 ℃ ~ 65 ℃ (power off),-45 ℃ ~ 65 ℃ (charged)
Working humidity range	0～100% RH
Survival wind speed	70m/s
Working acceleration range	-0.5g～0.5g
IP protection level	Equipment in engine room: IP54,Equipment outside engine room: IP66
Anticorrosive	ISO C5
Radiation protection	CISPR 11

| Product Features

Reduce fatigue load by 5%-10%
Reduce the ultimate load by 10%-15%
Extend fan life and reduce fan costs

| Product Image

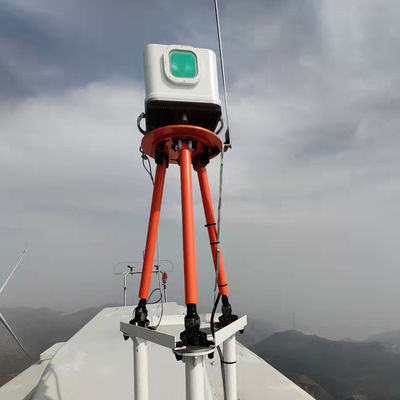

time of flight Wind Lidar Molas Nl 10 Simultaneous Measurements Ranges 0
