Ip66 Bankable Nacelle Mounted Lidar Measurement

Name: Ip66 Bankable Nacelle Mounted Lidar Measurement
Brand: Nanjing Movelaser Co., Ltd.
SKU: Molas NL
Price: 5 USD
Availability: InStock

Brand Name:	MOVELASER
Model Number:	Molas NL
MOQ:	1 set
Price:	Dollar 5W$+ （Price consultation customer service）
Delivery Time:	1-2 months
Payment Terms:	L/C, D/A, D/P, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

DNV GL , Intertek , RISO Dtu

Range:

50m ~200m(NL200) 50m ~400m(NL400) 50m ~750m(NL750)

Sampling Frequency:

4Hz

Beam Pointing Accuracy:

±0.1°

Survival Wind Speed:

70m/s

Measurement Layer:

Simultaneously Measure And Output 10 Distance Layers

Anticorrosive:

ISO C5

Packaging Details:

Air Box

Supply Ability:

200 set ，1 month

Highlight:

ip66 nacelle mounted lidar

bankable nacelle mounted lidar

movelaser nacelle mounted lidar

Product Description

Optical Head IPOptical Head IP66 Bankable Lidar measurement

| Product introduction

Molas NL series is a nacelle wind lidar independently developed for the intelligent application scheme of wind power customers. It is a laser remote sensing wind measurement device installed on the top of the wind turbine nacelle. The lidar adopts the coherent detection system, and based on the principle of laser Doppler frequency shift, realizes the accurate measurement of 50m-200m / 400m / 750m vector wind field in front of the fan impeller.
Molas NL nacelle wind lidar system provides measurement and recording of wind field information data in front of wind turbines 50m-200m / 400m / 750m, and is connected to the main control system of wind turbines, so as to realize feedforward control, optimize load and increase power generation. It can also be applied to various automated operation scenarios such as yaw correction, power curve test, wake analysis, and intelligent field group control.

| Application scenarios

True front wind measurement
Real time data transmission and local storage
Accuracy up to 0.1m/s and 0.5°
high sample rate
Multiple distance layers
large range

| Product parameters


Measure the distance	50~200m
Number of measured sections	10
Sampling frequency	4Hz
Wind speed measurement range	-50 ~50m/s
IP(Optical Head)	IP66
Wind speed accuracy	0.1m/s
Accuracy of wind direction	±0.5°
Measurement layer	Simultaneously measure and output 10 distance layers

| Product Features

Reduce fatigue load by 5%-10%
Reduce the ultimate load by 10%-15%
Extend fan life and reduce fan costs

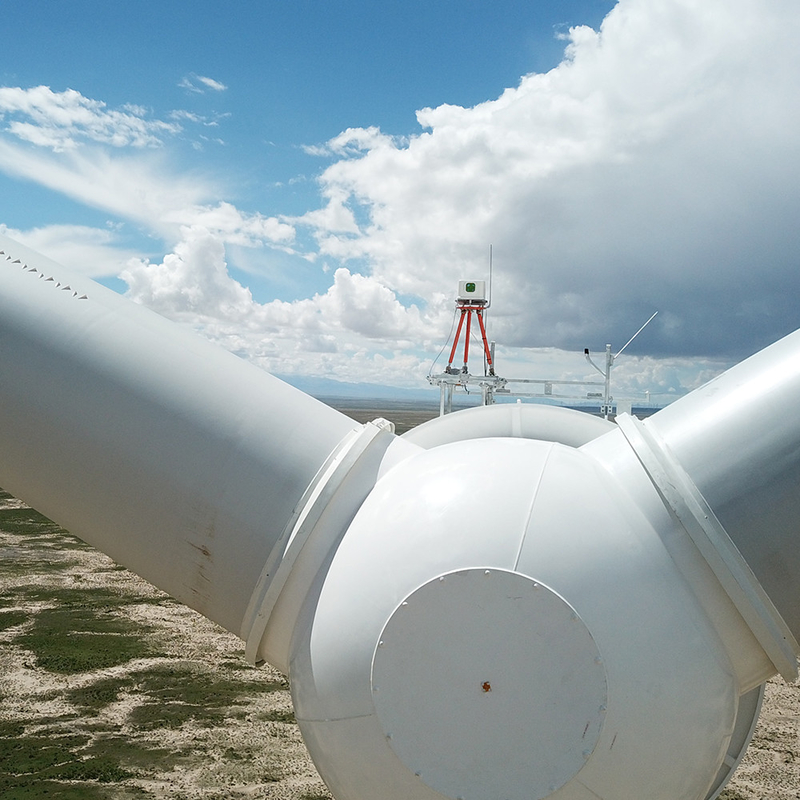

| Product Image

Ip66 Bankable Nacelle Mounted Lidar Measurement
