10 Layer Distance Measurement Wind Iris Lidar For Onshore Wind Turbines

10 Layer Distance Measurement Wind Iris Lidar For Onshore Wind Turbines
10 Layer Distance Measurement Wind Iris Lidar For Onshore Wind Turbines

Large Image :  10 Layer Distance Measurement Wind Iris Lidar For Onshore Wind Turbines

Product Details:
Place of Origin: China
Brand Name: MOVELASER
Certification: DNV GL , Intertek , RISO Dtu
Model Number: Molas NL
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Dollar 5W$+ （Price consultation customer service）
Packaging Details: Air Box
Delivery Time: 1-2 months
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 200 set ，1 month
Contact Now
Detailed Product Description
Range: 50m ~200m(NL200) 50m ~400m(NL400) 50m ~750m(NL750) Sampling Frequency: 4Hz
Beam Pointing Accuracy: ±0.1° Survival Wind Speed: 70m/s
Measurement Layer: Simultaneously Measure And Output 10 Distance Layers Anticorrosive: ISO C5
High Light:

10 layer wind iris lidar

,

onshore wind iris lidar

,

onshore lidar wind measurement

Wind Iris Lidar: 10-Layer Distance Measurement for Onshore Wind Turbines



| Product introduction

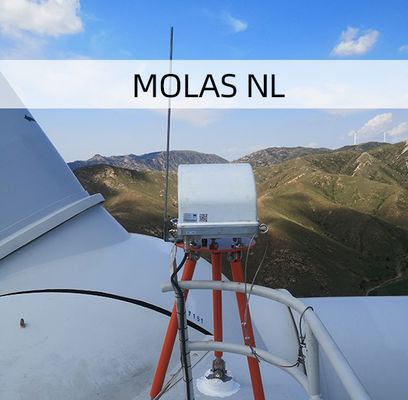

Molas NL series is a nacelle wind lidar independently developed for the intelligent application scheme of wind power customers. It is a laser remote sensing wind measurement device installed on the top of the wind turbine nacelle. The lidar adopts the coherent detection system, and based on the principle of laser Doppler frequency shift, realizes the accurate measurement of 50m-200m / 400m / 750m vector wind field in front of the fan impeller.
Molas NL nacelle wind lidar system provides measurement and recording of wind field information data in front of wind turbines 50m-200m / 400m / 750m, and is connected to the main control system of wind turbines, so as to realize feedforward control, optimize load and increase power generation. It can also be applied to various automated operation scenarios such as yaw correction, power curve test, wake analysis, and intelligent field group control.





| Application scenarios





With the application and development of Doppler wind Lidar in the field of wind energy, by accurately measuring the inflow wind speed and direction, it is possible to predict the accurate wind conditions on the wind rotor surface, correct system parameters in time,realize feedforward control to reduce unit load and improve the power generation efficiency, reduce manufacturing costs and extend the service life of wind turbine, so as to achieve the ultimate goal of reducing the cost of electricity.





| Product parameters



Measure the distance

50~200m

Number of measured sections

10

Sampling frequency

4Hz

Wind speed measurement range

-50 ~50m/s

Wind direction measurement range

-180°～180°

Wind speed accuracy

0.1m/s

Accuracy of wind direction

±0.5°

Measurement layer

Simultaneously measure and output 10 distance layers



Other

Communication mode

Profibus DP/Modbus TCP/ Modbus RTU/CANOPEN

Power supply

100 VAC~240VAC ±10% 50Hz~60Hz ±6%

Power

≤300W

Operating temperature range

-40℃～60℃

Survival temperature range

-40 ℃ ~ 65 ℃ (power off),-45 ℃ ~ 65 ℃ (charged)

Working humidity range

0～100% RH

Survival wind speed

70m/s

Working acceleration range

-0.5g～0.5g

IP protection level

Equipment in engine room: IP54,Equipment outside engine room: IP66

Anticorrosive

ISO C5

Radiation protection

CISPR 11





| Product Features



10 Layer Distance Measurement Wind Iris Lidar For Onshore Wind Turbines 0



| Product Image



10 Layer Distance Measurement Wind Iris Lidar For Onshore Wind Turbines 1



Tag:

FCC Part15 Lidar Wind Energy,

ANIS Z136 1 Eye Safety Wind Iris Lidar,

Wind Iris Lidar EMC IEC61326 1
