Eye Of Fan White Wind Lidar Rental -50-50m/S Wind Lightning Protection

Name: Eye Of Fan White Wind Lidar Rental -50-50m/S Wind Lightning Protection
Brand: Nanjing Movelaser Co., Ltd.
SKU: Molas NL
Price: 5 USD
Availability: InStock

Brand Name:	MOVELASER
Model Number:	Molas NL
MOQ:	1 set
Price:	Dollar 5W$+ （Price consultation customer service）
Delivery Time:	1-2 months
Payment Terms:	L/C, D/A, D/P, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

DNV GL , Intertek , RISO Dtu

IP(Optical Head):

IP66

Number Of Measured Sections:

Sampling Frequency:

4Hz

Wind Speed Measurement Range:

-50 ~50m/s

Wind Speed Accuracy:

0.1m/s

Communication Mode:

Profibus DP/Modbus TCP/ Modbus RTU/CANOPEN

Wind Direction Range:

-180° ~ 180°

Weight(Optical Head):

≤35kg

Packaging Details:

Air Box

Supply Ability:

200 set ，1 month

Highlight:

lightning protection wind lidar

eye of fan wind lidar

Product Description

Eye of the Fan White Lightning Protection wind lidar rental, -50-50m/s Wind

| Product introduction

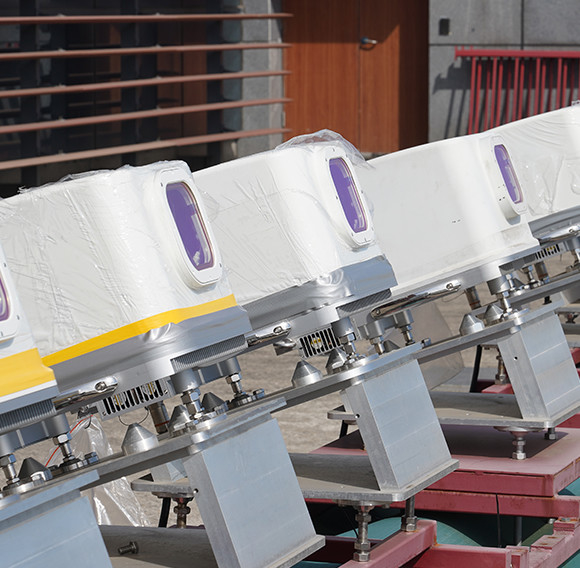

Molas NL series is a nacelle wind lidar independently developed for the intelligent application scheme of wind power customers. It is a laser remote sensing wind measurement device installed on the top of the wind turbine nacelle. The lidar adopts the coherent detection system, and based on the principle of laser Doppler frequency shift, realizes the accurate measurement of 50m-200m / 400m / 750m vector wind field in front of the fan impeller.

| Application scenarios

Molas NL system structure optical head (OH) is the core component of Molas NL, which mainly realizes the function of laser remote sensing detection, including the laser, optical transceiver antenna, main board circuit (host control and high-speed data acquisition).
The data storage unit (PU) is a key component of Molas NL for data storage and external interaction, mainly consisting of power supply, data processing, data storage, and external interaction.

| Product parameters 参数

Performance
Measure the distance	50~200m
Number of measured sections	10
Sampling frequency	4Hz
Wind speed measurement range	-50 ~50m/s
Wind direction measurement range	-180°～180°
Wind speed accuracy	0.1m/s
Accuracy of wind direction	±0.5°
Laser form	pulse wave

| Product Features

With four beams, it fully covers the impeller surface and truly realizes three-dimensional measurement.

| Product Image
