Product Details:
Payment & Shipping Terms:
|
| Communication Port: | Profibus DP,etc. | IP(Data Unit): | IP54 |
|---|---|---|---|
| Maximum Pass Size: | 500mm * 500mm | Temperature Range: | -40℃~60℃ |
| Wind Speed Accuracy: | 0.1m/s | Beam Structure: | 4 Beams, Horizontal Angle 30°, Vertical Angle 10° (NL750) |
| Survival Temperature: | -40℃~65℃（power Outage） / -45℃~60℃（power Ups） | IP(Optical Head): | IP66 |
| High Light: | 30° Wind Lidar System,0.1m/s Wind Lidar System,4-Beam Wind Lidar System |
||
One of the key features of the Wind Lidar System is its wind direction accuracy, which is rated at 0.5°. This level of precision ensures that users can trust the data produced by the system to make informed decisions about weather conditions.
In addition to its accuracy, the Wind Lidar System is designed to withstand extreme weather conditions. It has a survival wind speed of 70m/s, making it suitable for use in harsh environments. The system is also equipped with a maximum pass size of 500mm x 500mm, allowing it to capture wind data from a large area.
The Wind Lidar System is capable of operating in a range of environments, including both extravehicular and inside cabin environments. It has a maximum humidity rating of 100% for extravehicular use and 95% for use inside the cabin. This flexibility makes it an ideal choice for a wide range of applications, including aviation, marine, and weather forecasting.
| Technical Parameter | Value |
|---|---|
| Product Name | Meteorological Wind Detecting System |
| Wind Speed Accuracy | 0.1m/s |
| Survival Wind Speed | 70m/s |
| Wind Speed Range | 0m/s ~ 50m/s |
| Wind Direction Range | -180° ~ 180° |
| Acceleration Range | -0.5g ~ 0.5g |
| Maximum Pass Size | 500mm * 500mm |
| Temperature Range | -40℃~60℃ |
| Wind Direction Accuracy | 0.5° |
| Range | 50m ~200m(NL200) 50m ~400m(NL400) 50m ~750m(NL750) |
| Lens | Anti-freeze, Sand And Dust, Etc. |
| Product Type | Atmospheric Flow Tracking Laser Device |

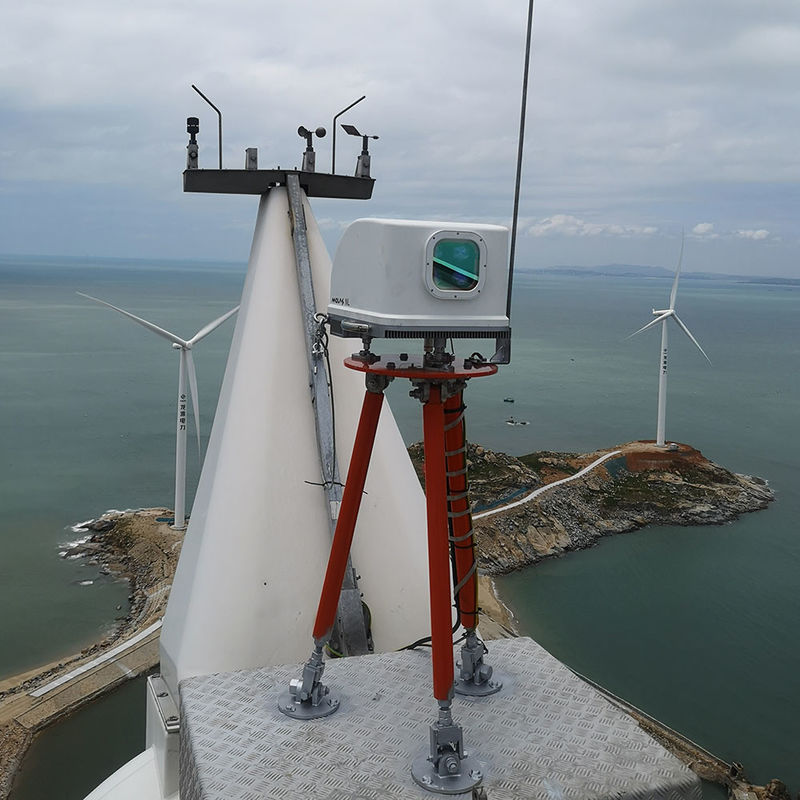

The Wind Lidar system is perfect for use in wind turbines, as it is designed to withstand harsh weather conditions and has an ISO C5 anticorrosion grade. This Gale Computing Laser System can accurately measure wind speeds as low as 0.1m/s and can withstand survival wind speeds of up to 70m/s. The system's optical head weighs less than 35kg, making it easy to install and maintain.
In addition, the Wind Lidar system is an ideal choice for those in the renewable energy sector. Its Breeze Tracking Laser Kit technology makes monitoring wind speeds and generating energy more efficient and reliable. The system's Gust Computing Laser Technology can also help predict weather patterns and prevent turbine damage.
Other potential applications for the Wind Lidar system include aviation, meteorology, and research. Its accuracy and reliability make it a valuable tool for pilots and meteorologists to track weather patterns and make informed decisions. Researchers can also use the Wind Lidar system to collect data for various studies and experiments.
MOVELASER's Wind Lidar system is certified by DNV GL and has a minimum order quantity of 1 set. The price of the system starts at $5,000, and customers can contact customer service for pricing consultation. The system is shipped in an air box and has a delivery time of 1-2 months. Payment terms include L/C, D/A, D/P, and T/T, and the supply ability is 200 sets per month.
The Wind Lidar System product comes with a comprehensive technical support and service package. Our team of experts is available to assist with any technical issues or questions you may have. Our support services include:
Our goal is to ensure that your Wind Lidar System operates at peak performance, providing accurate and reliable wind data for your applications. Contact us for more information on our technical support and service offerings.
Q: What is MOVELASER Nacelle Wind Lidar?
A: MOVELASER Nacelle Wind Lidar is a wind sensing device that uses laser technology to measure wind speed and direction. It is designed to be installed on wind turbine nacelles.
Q: Where is MOVELASER Nacelle Wind Lidar manufactured?
A: MOVELASER Nacelle Wind Lidar is manufactured in China.
Q: What is the certification of MOVELASER Nacelle Wind Lidar?
A: MOVELASER Nacelle Wind Lidar is certified by DNV GL.
Q: What is the minimum order quantity for MOVELASER Nacelle Wind Lidar?
A: The minimum order quantity for MOVELASER Nacelle Wind Lidar is 1 set.
Q: What is the price of MOVELASER Nacelle Wind Lidar?
A: The price of MOVELASER Nacelle Wind Lidar starts from 5,000 US dollars. Please contact our customer service for price consultation.
Q: How is MOVELASER Nacelle Wind Lidar packaged and delivered?
A: MOVELASER Nacelle Wind Lidar is packaged in an air box and delivered within 1-2 months. We accept various payment terms, such as L/C, D/A, D/P, and T/T. Our supply ability is 200 sets per month.
