Precision Wind Lidar System ISO C5 Anti-corrosion IP54 Data Unit Extreme Weather Resistant 0.5° Wind Direction

Precision Wind Lidar System ISO C5 Anti-corrosion IP54 Data Unit Extreme Weather Resistant 0.5° Wind Direction
Precision Wind Lidar System ISO C5 Anti-corrosion IP54 Data Unit Extreme Weather Resistant 0.5° Wind Direction

Large Image :  Precision Wind Lidar System ISO C5 Anti-corrosion IP54 Data Unit Extreme Weather Resistant 0.5° Wind Direction

Product Details:
Place of Origin: China
Brand Name: MOVELASER
Certification: DNV GL
Model Number: Nacelle Wind Lidar
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Dollar 5W$+ (Price consultation customer service)
Packaging Details: Air Box
Delivery Time: 1-2 months
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 200 set ,1 month
Detailed Product Description
IP(Data Unit): IP54 Communication Port: Profibus DP,etc.
Anticorrosion Grade: ISO C5 Maximum Humidity: 100%(extravehicular) / 95%(Inside The Cabin)
Survival Temperature: -40℃~65℃(power Outage) / -45℃~60℃(power Ups) Wind Direction Accuracy: 0.5°
Lens: Anti-freeze, Sand And Dust, Etc. Wind Speed Accuracy: 0.1m/s
High Light:

IP54 Wind Lidar System

,

ISO C5 Wind Lidar System

,

0.5° Wind Lidar System

Product Description:

With a frequency of 4Hz, this Wind Lidar System is capable of providing real-time wind speed and direction measurements, making it an ideal choice for applications that require precise and up-to-date data. The system is also designed to withstand extreme weather conditions, with a survival wind speed of up to 70m/s.

The Wind Lidar System features a unique beam structure, with 4 beams that cover a horizontal angle of 30° and a vertical angle of 10° (NL750). This ensures that the system can accurately detect wind patterns and changes in wind direction, even in the most challenging environments.

In addition, the Wind Lidar System is designed to be used in a variety of environments, with a maximum humidity of 100% (extravehicular) and 95% (Inside The Cabin). This ensures that the system can be used in a wide range of applications, from outdoor wind monitoring to indoor climate control.

The Wind Lidar System is also designed to be easy to use and install, with a maximum pass size of 500mm x 500mm. This makes it an ideal choice for a wide range of applications, including wind energy, aviation, weather forecasting, and environmental monitoring.



Features:

  • Product Name: Wind Lidar System
  • Anticorrosion Grade: ISO C5
  • Measurement Layer: 10
  • Maximum Pass Size: 500mm * 500mm
  • Wind Direction Range: -180° ~ 180°
  • Working Altitude: ≤3500m
  • Features:
    • Air Current Measurement Laser Apparatus
    • Gale Computing Laser System
    • Breeze Tracking Laser Kit


Technical Parameters:

Product Name Breeze Tracking Laser Kit
Wind Speed Accuracy 0.1m/s
Lens Anti-freeze, Sand And Dust, Etc.
IP(Optical Head) IP66
Anticorrosion Grade ISO C5
Acceleration Range -0.5g ~ 0.5g
Working Altitude ≤3500m
Survival Wind Speed 70m/s
Survival Temperature -40℃~65℃(power Outage) / -45℃~60℃(power Ups)
Wind Speed Range 0m/s ~ 50m/s
Frequency 4Hz
Technology Gust Computing Laser Technology, Gale Computing Laser System


Applications:

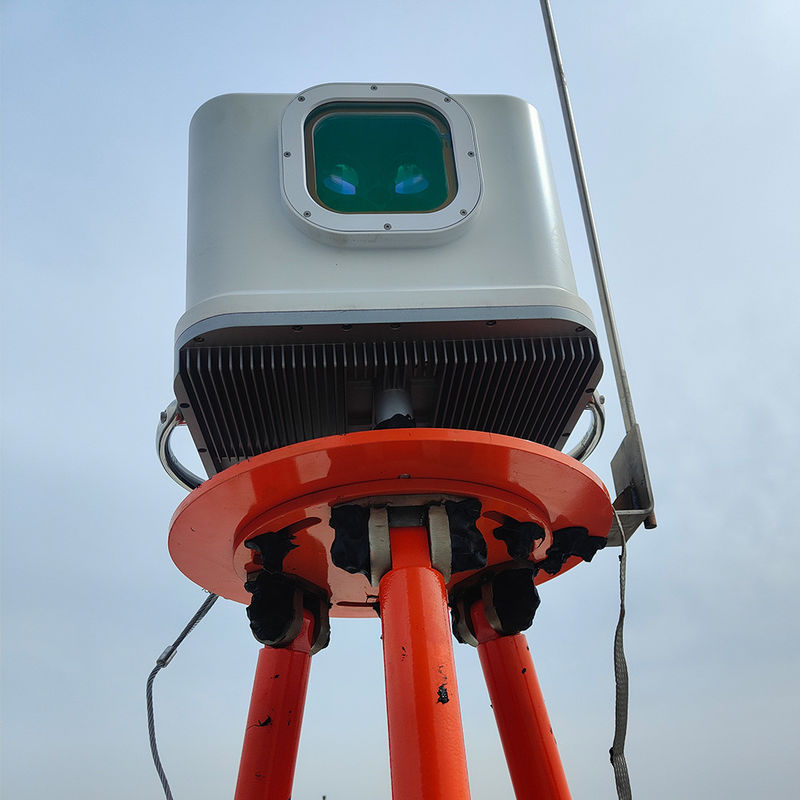

MOVELASER's Nacelle Wind Lidar is a state-of-the-art Climate Wind Sensing Apparatus that utilizes Gust Computing Laser Technology. It is designed to accurately and efficiently measure wind speed and direction for wind turbines, enabling optimal energy output and reduced maintenance costs.

DNV GL Certification ensures the quality and reliability of the Wind Lidar System, which has a minimum order quantity of 1 set and a price of 5W$+. Customers can consult with MOVELASER's customer service for pricing details.

The Wind Lidar System is packaged in an Air Box and has a delivery time of 1-2 months. Payment terms accepted include L/C, D/A, D/P, and T/T. MOVELASER is capable of supplying up to 200 sets per month.

The Nacelle Wind Lidar has a maximum humidity tolerance of 100% (extravehicular) or 95% (Inside The Cabin) and can operate within a temperature range of -40℃ to 60℃. The IP66 rating of the optical head ensures protection from dust and water ingress.

In addition to its superior accuracy and reliability, the Wind Lidar System is also equipped with communication ports such as Profibus DP, making it suitable for a variety of applications and scenarios. It is a Weather Detecting Laser System that can be used in wind farms, meteorology, aviation, and more.



Support and Services:

The Wind Lidar System product technical support and services include:

- Technical consultation and assistance

- Troubleshooting and problem resolution

- Repair and maintenance services

- Firmware and software updates

- Training and education

- Installation and commissioning services

- Remote monitoring and support



FAQ:

Q1. What is the brand name of the Wind Lidar System?

A1. The brand name of the Wind Lidar System is MOVELASER.

Q2. What is the model number of the Wind Lidar System?

A2. The model number of the Wind Lidar System is Nacelle Wind Lidar.

Q3. What is the place of origin of the Wind Lidar System?

A3. The Wind Lidar System is manufactured in China.

Q4. What is the certification of the Wind Lidar System?

A4. The Wind Lidar System is certified by DNV GL.

Q5. What is the minimum order quantity for the Wind Lidar System?

A5. The minimum order quantity for the Wind Lidar System is 1 set.

Q6. What is the price of the Wind Lidar System?

A6. The price of the Wind Lidar System is Dollar 5W$+. Please contact customer service for price consultation.

Q7. What are the packaging details for the Wind Lidar System?

A7. The Wind Lidar System is packaged in an air box.

Q8. What is the delivery time for the Wind Lidar System?

A8. The delivery time for the Wind Lidar System is 1-2 months.

Q9. What are the payment terms for the Wind Lidar System?

A9. The payment terms for the Wind Lidar System are L/C, D/A, D/P, and T/T.

Q10. What is the supply ability of the Wind Lidar System?

A10. The Wind Lidar System has a supply ability of 200 sets per month.
