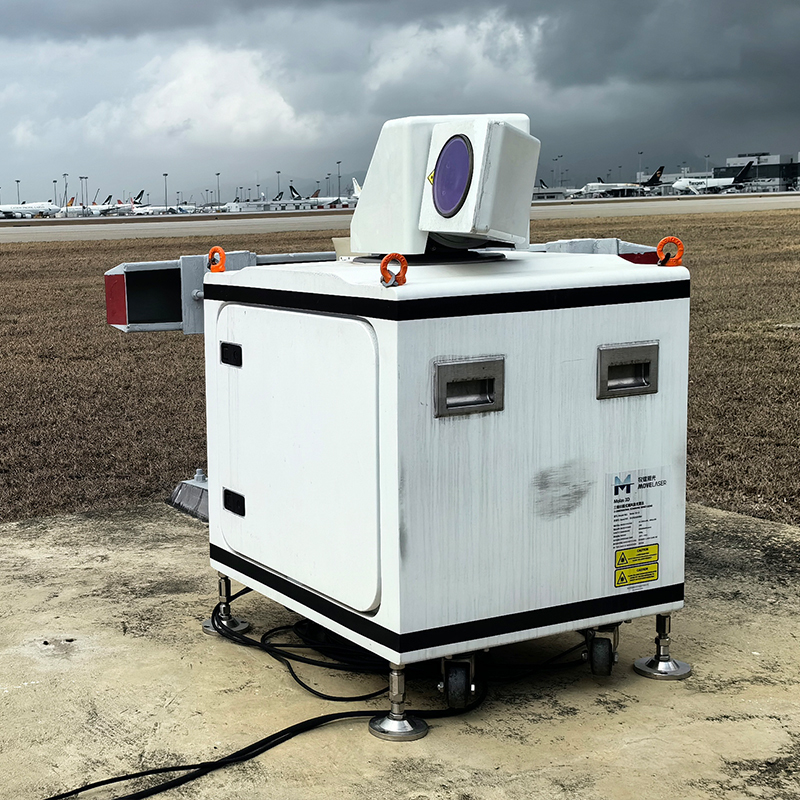

Wind Measurement Lidar for Onshore Energy 15km Range 2TB Storage

Large Image : Wind Measurement Lidar for Onshore Energy 15km Range 2TB Storage

Product Details:

Place of Origin:	china
Brand Name:	Movelaser
Model Number:	Molas 3D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Flight Case

Contact Now

Detailed Product Description

Weight:	≤100kg	Sight Wind Speed Accuracy:	0.1m/s
Backup Storage:	2TB	Size:	756mm*735mm'1000mm
Storage Temperature:	40～+70°℃	Distance Layers:	Up To 300
Maximum Acquisition Distance:	15km	Pointing Acuracy:	±0.005°
Highlight:	Energy Production Lidar Wind Measurement , Eco Friendly Lidar Wind Measurement

Affordable Eco Friendly Lidar Wind Measurement For Energy Production

Key Specifications

Attribute	Value
Weight	≤100kg
Sight Wind Speed Accuracy	0.1m/s
Backup Storage	2TB
Size	756mm × 735mm × 1000mm
Storage Temperature	-40°C to +70°C
Distance Layers	Up To 300
Maximum Acquisition Distance	15km
Pointing Accuracy	±0.005°

Product Overview

The Wind Measurement Lidar is a cutting-edge solution designed to provide accurate and reliable wind data for various applications. This bankable product offers exceptional performance and robust features, making it an ideal choice for onshore wind measurement projects.

Powered by a 220VAC±20% 50Hz±10% power supply, this lidar system ensures stable operation in challenging environments. With 2TB backup storage capacity, it enables extensive data collection and analysis for comprehensive wind data access.

Key Features

Product Name: Wind Measurement Lidar
Sight wind Speed Range: -75 to +75m/s
Distance Layers: Up To 300
Accumulation Time: 0.1-10s Optional
Data Storage Time: 5 to 18 Months
Vertical Measuring Distance: 4km

Technical Parameters

Vertical Measuring Distance	4km
Sight Wind Speed Range	-75 to +75m/s
Backup Storage	2TB
Weight	≤100kg
Size	756mm × 735mm × 1000mm
Distance Layers	Up To 300
Accumulation Time	0.1-10s Optional
Vertical Range	-20° to 200°
Operating Temperature	-40°C to +60°C
Data Storage Time	5 to 18 Months

Applications

Movelaser's Wind Measurement Lidar (Model Molas 3D) is designed for various applications including:

Onshore wind measurements for renewable energy projects
Weather condition monitoring for safety purposes
Maritime operations and offshore wind farms
Marine research activities requiring accurate wind data

The system features advanced 3D scanning Doppler technology with multiple scanning methods (PPI, RHI, DBS, and program scan) for versatile data collection across different environments.
