High Accuracy 3D Scanning Doppler ±0.2m Measurement 4.09±0.2° Beam 3 for High Precision Industrial Scanning

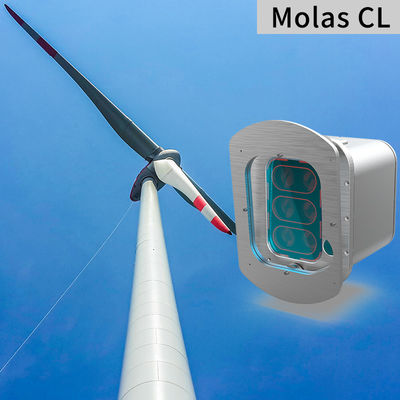

Large Image : High Accuracy 3D Scanning Doppler ±0.2m Measurement 4.09±0.2° Beam 3 for High Precision Industrial Scanning

Product Details:

Brand Name:	Movelaser
Model Number:	Molas CL

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Packaging Details:	Flight Case

Contact Now

Detailed Product Description

Operating Humidity Range:	0%-100%RH	Wevelength:	905nm
RepeatFrequency:	20KHzperchannel	Measurement Acures:	±0.2m
Enclosure Rating:	IP65	Beam 1:	0°
Working Acceleration Range:	-0.5g～0.5g	Beam 3:	4.09±0.2°

Product Description:

Molas CL tower clearance lidar is a type of lidar that provides real-time monitoring of the clearance distance of blade tips. When the monitored blade clearance value approaches the specified minimum clearance value, the main controller of the fan unit can promptly implement protective measures such as deceleration and retraction. The utilization of tower clearance lidar on current units helps prevent tower sweeping, alleviates power limitations on risky units, and enhances power generation.

Integrating tower clearance lidar into future units offers the potential to reduce blade costs and lessen the design pressure on the units. This proactive approach can lead to improved efficiency and safety in wind turbine operations. By utilizing advanced technology like tower clearance lidar, wind energy developers can optimize performance and mitigate risks associated with operational challenges.

Features:

Product Name: Wind Measurement Lidar
Operating Humidity Range: 0%-100%RH
Detection Distance: 300m@10% reflectivity
Wavelength: 905nm
Beam 3: 4.09±0.2°
Repeat Frequency: 20KHz per channel

Technical Parameters:

Beam 1	0°
Repeated Measurement Accuracy	±0.2m
Repeat Frequency	20KHz per channel
Distance Resolution	≤0.1m
Beam 3	4.09±0.2°
Ranging Method	ToF
Measurement Accuracy	±0.2m
Range of Working Temperature	-40℃ to +60℃
Ambient Light Resistance	100Klux
Detection Distance	300m @ 10% reflectivity

Applications:

Single point precise feedback

Threshold detection

Trend detection
