300m Detection Distance Wind Measurement Lidar Powered by Beam 1 0° and Beam 2 2.05°±0.2°

Large Image : 300m Detection Distance Wind Measurement Lidar Powered by Beam 1 0° and Beam 2 2.05°±0.2°

Product Details:

Brand Name:	Movelaser
Model Number:	Molas CL

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Packaging Details:	Flight Case

Contact Now

Detailed Product Description

Enclosure Rating:	IP65	Beam 2:	2.05°±0.2°
Distance Resolution:	≤0.1m	Operating Humidity Range:	0%-100%RH
Wevelength:	905nm	Beam 3:	4.09±0.2°
Working Acceleration Range:	-0.5g～0.5g	Beam 1:	0°

Product Description:

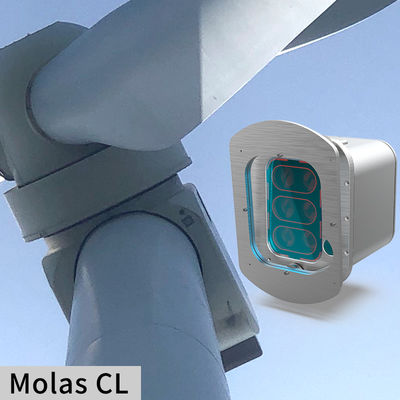

Molas CL tower clearance lidar is a type of lidar system designed to track the distance between the blade tip and the tower in real time. When the clearance value approaches the designated minimum level, the fan unit's main controller can swiftly implement protective measures such as deceleration or retraction. The integration of tower clearance lidar on existing units helps to prevent tower collisions, elevate the operational limit of at-risk units, and enhance power generation.

Implementing tower clearance lidar in future units offers benefits including reduced blade expenses and lower design requirements for the units. By leveraging this technology, operators can optimize the performance and safety of wind turbines for sustainable energy production.

Features:

Product Name: Wind Measurement Lidar
Detection Distance: 300m @ 10% reflectivity
Beam 3: 4.09±0.2°
Beam 1: 0°
Working Acceleration Range: -0.5g to 0.5g
Measurement Accuracy: ±0.2m

Technical Parameters:

Detection Distance	300m @ 10% reflectivity
Repeated Measurement Accuracy	±0.2m
Repeat Frequency	20KHz per channel
Range of Working Temperature	-40℃ to +60℃
Enclosure Rating	IP65
Measurement Accuracy	±0.2m
Laser Safety Level	Class 1M
Working Acceleration Range	-0.5g to +0.5g
Beam 1	0°
Ranging Method	ToF

Applications:

Single point precise feedback

Threshold detection

Trend detection
