Wind Turbine Performance Testing Made Easy with Wind Lidar Molas 3D Beam 1 0° and Beam 3 4.09±0.2°

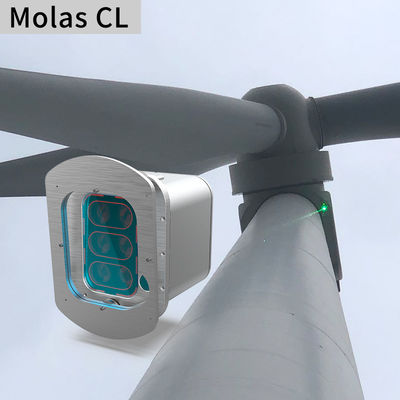

Large Image : Wind Turbine Performance Testing Made Easy with Wind Lidar Molas 3D Beam 1 0° and Beam 3 4.09±0.2°

Product Details:

Brand Name:	Movelaser
Model Number:	Molas CL

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Packaging Details:	Flight Case

Contact Now

Detailed Product Description

DetectonDstance:	300m@10%reilectivity	Operating Humidity Range:	0%-100%RH
RepeatFrequency:	20KHzperchannel	Beam 1:	0°
Measurement Acures:	±0.2m	AmbientLight Resistance:	100Klux
Beam 3:	4.09±0.2°	RangeOf Woiking Temperature:	-40℃~+60℃

Product Description:

Molas CL tower clearance lidar is a type of lidar that continuously monitors the clearance distance of blade tips in real-time. This innovative technology enables the main controller of the fan unit to promptly implement protective measures when the monitored blade clearance value approaches the specified minimum clearance value.

These protective measures may include deceleration, retraction, and other actions to ensure the safety and performance of the unit. By integrating tower clearance lidar in existing units, the risk of tower sweeping is mitigated, the power limit of potentially hazardous units is elevated, and overall power generation is increased.

Furthermore, the implementation of tower clearance lidar in future units presents advantages such as decreased blade cost and reduced design pressure for the units. This cutting-edge technology offers a proactive approach to optimizing unit performance and ensuring operational efficiency.

Features:

Product Name: Wind Measurement Lidar
Distance Resolution: ≤0.1m
Operating Humidity Range: 0%-100%RH
Detection Distance: 300m @ 10% reflectivity
Working Acceleration Range: -0.5g to 0.5g
Beam 2: 2.05° ± 0.2°

Technical Parameters:

Laser Safely level	Class 1M
Beam 3	4.09±0.2°
Distance Resolution	≤0.1m
Beam 2	2.05°±0.2°
Beam 1	0°
Detection Distance	300m@10% reflectivity
Wavelength	905nm
Measurement Accuracy	±0.2m
Repeat Frequency	20KHz per channel
Ambient Light Resistance	100Klux

Applications:

Single point precise feedback

Threshold detection

Trend detection

Tag:

Contact Person: ivyyao

Tel: +86 13072523225

Fax: 86-025-86800073

Other Products

Molas CL IP65 Silver Wind Measurement Lidar Prevent Tower Sweeping

Ranging method: 1ToF

Detection distance: 200m@90% reflectivity/ 140m@10% reflectivity

Range resolution: ≤0.1m

Measurement accuracy: ±0.2m

150W Wind Measurement Lidar 1550nm High Energy Laser Beam Wind Lidar

Ranging range: 10m-300m

Distance resolution: ≤0.1m

Direct ranging accuracy: ±0.1m

Anti-ambient light: 100K LUX

Molas CL Ambient Light Resistant 100Klux Wind Lidar 905nm Wavelength

Ranging method: 1ToF

Detection distance: 200m@90% reflectivity/ 140m@10% reflectivity

Range resolution: ≤0.1m

Measurement accuracy: ±0.2m

20KHz Per Channel DC24V 3A Lidar Wind Measurement 0.2m Accuracy

Ranging method: 1ToF

Detection distance: 200m@90% reflectivity/ 140m@10% reflectivity

Range resolution: ≤0.1m

Measurement accuracy: ±0.2m

0.1m Range Resolution 60W Offshore Wind Lidar RS485 Communication

Ranging method: 1ToF

Detection distance: 200m@90% reflectivity/ 140m@10% reflectivity

Range resolution: ≤0.1m

Measurement accuracy: ±0.2m
