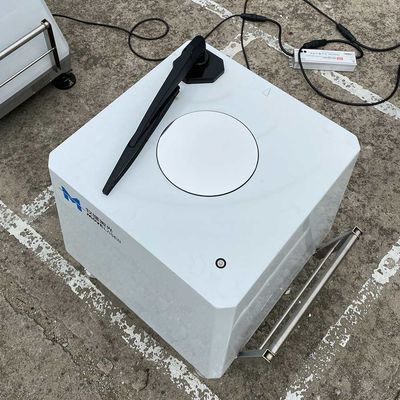

70W 12 Layers Doppler Wind Lidar Ethernet 3G 4G Floating Lidar System

Large Image : 70W 12 Layers Doppler Wind Lidar Ethernet 3G 4G Floating Lidar System

Product Details:

Place of Origin:	China
Brand Name:	MOVELASER
Model Number:	Molas B300M

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Dollar 7W$+ （Price consultation customer service）
Packaging Details:	Air Box
Delivery Time:	1-2 months
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	200 set ，1 month

Contact Now

Detailed Product Description

Measuring Range:	30-300 Meters	Measure The Number Of Layers:	12
Wind Speed Accuracy:	0.1m/s	Protection Class:	IP67 (complete Machine)
Measuring Wind Speed Range:	0~75m/s	Size:	682mm X 520mm X 641mm
Powered By:	24V DC / 100~240V	Power:	70W
Weight:	<75kg	Range Of Working Temperature:	-40℃ ~ 50℃(with Over Temperature Protection)
Operating Humidity Range:	0% To 100%	Eye Safety:	Class 1M (EN60825-1)
Data Format:	ASCII	Data Output:	Horizontal Wind Speed, Vertical Wind Speed, Wind Direction Timestamp, GPS, Temperature, Humidity And Pressure, Statistics
Communication:	Ethernet (100BASE-TX) 3G/4G WiFi, Satellite Communication (optional)
Highlight:	70W 12 Layers Doppler Wind Lidar , IP67 Doppler Wind Lidar , Ethernet 3G 4G Floating Lidar System

Floating Lidar System Number of measurement layers 12 Wind Lidar

1,Product introduction

① Time-saving and efficient: the project construction period is short, saving valuable time and cost
② Flexible configuration: flexible wireless connection, enabling remote configuration delivery and data transmission
③ Data security: data encryption has no risk of leakage
④ Non-contact measurement: convenient and fast, leading the industry

2,Product parameters

**General parameters**
Powered by	24V DC / 100~240V
Power	70W
Size	682mm x 520mm x 641mm
Weight	<75kg
Range of working temperature	-40℃ ~ 50℃(with over temperature protection)
Operating humidity range	0% to 100%
Protection class	IP67 (complete machine)
Eye safety	Class 1M (EN60825-1)

**Measurement parameters**
Measuring distance	30~300m
Measurement layer	12
Sampling rate	1Hz
Wind speed measurement accuracy	0.1m/s
Wind direction measurement accuracy	1°
Wind speed measurement range	0~75m/s
Wind direction measurement range	0~360°
Sweep cone angle	28°

**Data parameter**
Data output	Horizontal wind speed, vertical wind speed, wind direction Timestamp, GPS, temperature, humidity and pressure, statistics
Data Format	ASCII
Communication	Ethernet (100BASE-TX) 3G/4G WiFi, satellite communication (optional)

3,Application scenarios

① Early detection of wind resources

70W 12 Layers Doppler Wind Lidar Ethernet 3G 4G Floating Lidar System 0

② Offshore construction and operation and maintenance wind power monitoring

70W 12 Layers Doppler Wind Lidar Ethernet 3G 4G Floating Lidar System 1

③ Prediction of wind power in offshore wind farms

70W 12 Layers Doppler Wind Lidar Ethernet 3G 4G Floating Lidar System 2
