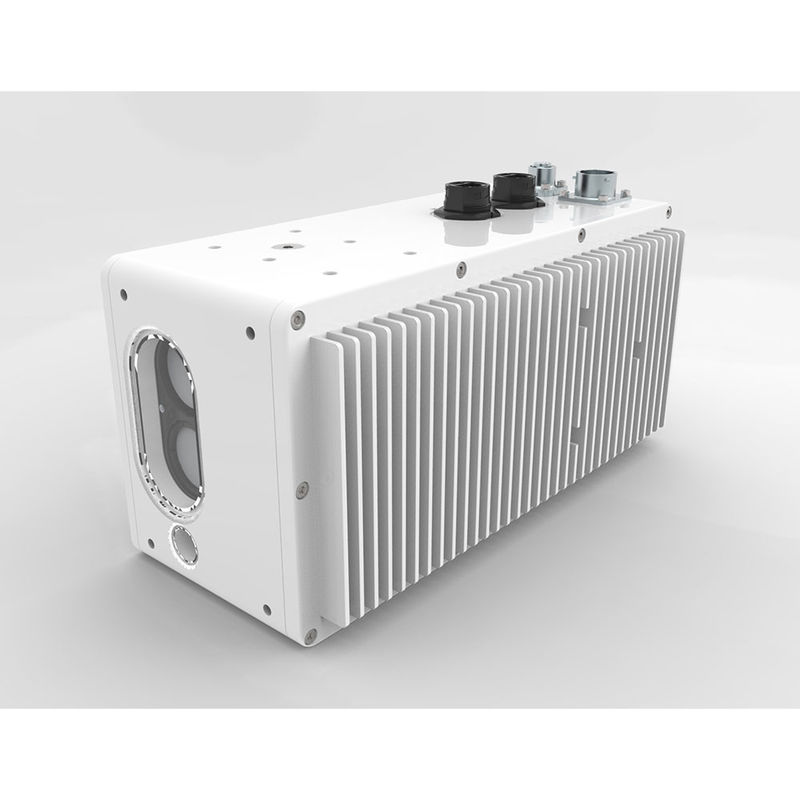

10m-300m Wind Profiler Radar 72W Laser Wind Speed Measurement

10m-300m Wind Profiler Radar 72W Laser Wind Speed Measurement
10m-300m Wind Profiler Radar 72W Laser Wind Speed Measurement

Large Image :  10m-300m Wind Profiler Radar 72W Laser Wind Speed Measurement

Product Details:
Place of Origin: China
Brand Name: MOVELASER
Model Number: Molas CLH
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Dollar 1W$+ (Price consultation customer service)
Packaging Details: Air Box
Delivery Time: 1-2 months
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 200 set ,1 month
Detailed Product Description
Ranging Range: 10m-300m Distance Resolution: ≤0.1m
Direct Ranging Accuracy: ±0.1m Anti-ambient Light: 100K LUX
Wavelength: 1550nm Laser Safety Level: Class 1M, Eye-safe
Data Product: Distance, Return Light Intensity, System Status (0/1), Check Digit Data Update Rate: 50~500Hz
Output Interface: Profibus, CANopen Or Modbus RTU Electrical Interface: Power Supply And Data Products: Transmission Power And Data Transmission Products
Electrical Interface: Network Port: Transmission Of Various Data, Status Monitoring, Parameter Delivery Operating Ambient Temperature: -40~+60℃
Operating Environment Humidity: 5%~95% RH Storage Temperature: -45~+65℃
Operating Power Consumption: ≤150W Supply Voltage: 24VDC
Size: Length/width/height Not More Than 300mm Weight: Within 3kg
Light Source Life: 7 Years Machine Life: 15 Years
High Light:

300m Wind Profiler Radar

,

10m radar wind profiler

,

72W Laser Wind Speed Measurement

Laser Wind Speed Measurement Maximum power consumption ≤72W



1,Product introduction



Definition of wind turbine tower clearance:

Narrow sense: the closest distance between the blade tip of the unit blade or the vicinity of the blade tip and the tower wall at the blade tip heightGeneralized: the minimum distance of obstacles around the outer periphery of the wind turbine tower that endanger the safety of the tower



2,Technical Data Sheet



Technical indicators
Ranging range 10m-300m
Distance resolution ≤0.1m
Direct ranging accurac ±0.1m
Anti-ambient light 100K LUX
Wavelength 1550nm
Laser safety class Class 1M, eye-safe
Data product Distance, return light intensity, system status (0/1), check digit
Data update rate 50~500Hz
Output interface Profibus, CANopen or Modbus RTU
Electrical interface: power supply and data products Transmission power and data transmission products
Electrical interface: network port Transmission of various data, status monitoring, parameter delivery
Operating ambient temperature -40~+60℃
Operating environment humidity 5%~95% RH
Storage temperature -45~+65℃
Storage humidity 5%~95% RH
Enclosure protection class IP67
Anticorrosion grade Neutral salt spray 1344h
Operating power consumption ≤150W
Supply voltage 24VDC
Size length/width/height not more than 300mm
Weight within 3kg
Light source life 7 years
Machine life 15 years
