Distance Resolution: | 30m, 75m | Radial Wind Speed Measurement Accuracy: | 0.1m/s |
---|---|---|---|
Horizontal Scan Range: | 0°~360° | Angular Resolution: | 0.1° |
Maximum Location Update Rate: | 2Hz | Data Storage Time: | 5 To 18 Months |
Data Format: | .csv File | Environmental Adaptability And Reliability: | -25~+50℃, Can Be Extended To -40~+60℃ |
Weight: | ≤150kg | GNSS Functionality: | Support GPS/Beidou |
Time Service: | NTP Timing Or GPS/Beidou Timing | ||
High Light: | Beidou Timing Wind Profiler Radar,GPS Timing Wind Profiler Radar,Laser 360 Radar Measures Wind |

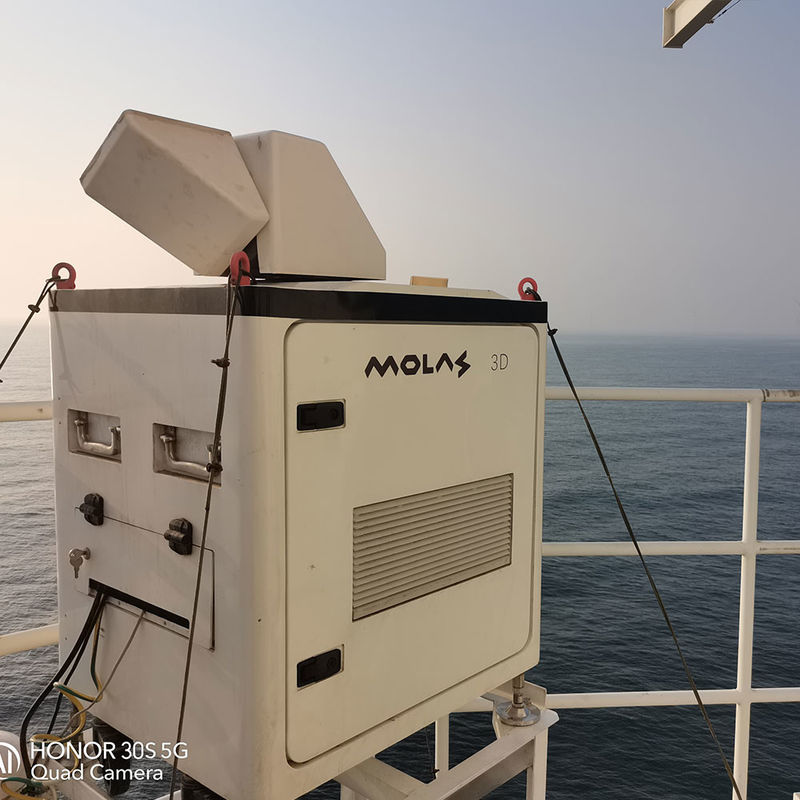

Radar measures wind by laser 360°
1,Product introduction
After the radar is used, it needs to be handled or transported. Please tighten the protective cover of the connector in the tail box, lock the small door, adjust the adjusting wheel counterclockwise to shrink the feet of the radar to the lowest level, and pack it in the original packing box for transportation. When transporting, ensure that the radar scanner head is facing up, and it is strictly forbidden to turn it upside down.
2,Performance parameters
Basic parameters | |
Line-of-sight detection distance | 10km (typical case) |
Distance resolution | 30m/45m/60m/75m optional |
Accumulation time | 0.5s/1s/2s/4s/8s optional |
Radial wind speed measurement range | -75~+75 m/s |
Radial wind speed measurement accuracy | 0.1m/s |
Number of distance layers | up to 300 |
Horizontal scan range | 360° × n |
Vertical scan range | -10°~190° |
Pointing accuracy | 0.1° |
Scanning method | PPI , RHI , DBS , LOS and Program Scan |
Real-time data output form | Profibus DP/Modbus TCP/CAN optional |
Telecommunication | 1000BASE-TX or 4G remote access |
Environmental parameters | |
Operating temperature and humidity | -25~+50℃ (extendable to -40~+60℃), 5%~100% RH |
IP protection class | Housing IP54, core module IP66 |
Anticorrosion grade | C4 |
Survival wind speed | 70m/s (fixed by foot or by wire rope) |
Working altitude | ≤3500m |
Other parameters | |
Running power consumption | ≤1kW |
Powered by | 110VAC±20% or 220VAC±20%, 50Hz±10% |
Size | 800mm*650mm*11 30mm |
Weight | ≤150kg |
Accessibility | |
GNSS functionality | Support GPS/Beidou |
Time service | NTP timing or GPS/Beidou timing |
3,Schematic diagram of 3D scanning Doppler wind Lidar
