IEC 60825-1 Class 1M Eye Safety Wind Speed Lidar Molas 3D

Name: IEC 60825-1 Class 1M Eye Safety Wind Speed Lidar Molas 3D
Brand: MOVELASER
SKU: Molas 3D
Price: 13 USD
Availability: InStock
Rating: 5 (180 reviews)

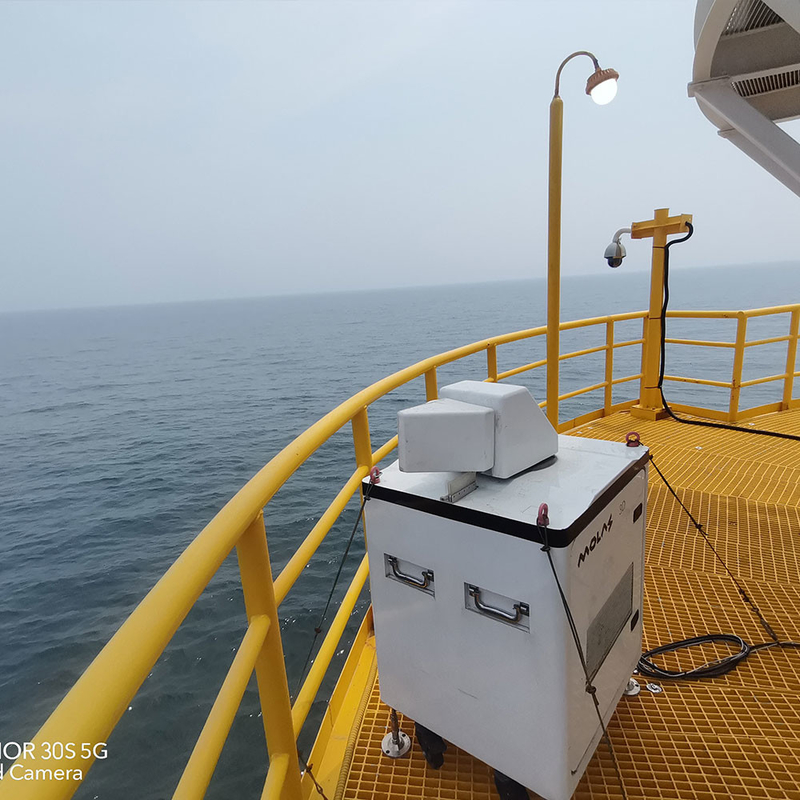

Large Image : IEC 60825-1 Class 1M Eye Safety Wind Speed Lidar Molas 3D

Product Details:

Place of Origin:	China
Brand Name:	MOVELASER
Model Number:	Molas 3D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Dollar 13W$+ （Price consultation customer service）
Packaging Details:	Air Box
Delivery Time:	1-2 months
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	200 set ，1 month

Contact Now

Detailed Product Description

Line-of-sight Detection Distance:	6km/3km	Distance Resolution:	30m, 75m
Blind Spot Width:	50m/100m	Accumulation Time:	0.5s/1s/2s/4s/8s Optional
Radial Wind Speed Measurement Range:	-75～+75m/s	Radial Wind Speed Measurement Accuracy:	0.1m/s
Number Of Distance Gates:	300	Laser Safety Level:	IEC 60825-1 (2014) Class 1M Eye Safety
Horizontal Scan Range:	0°～360°	Vertical Scanning Range:	0°～180°
Angular Resolution:	0.1°
High Light:	Class 1M Eye Safety Wind Speed Lidar , Wind Speed Lidar Molas 3D , IEC 60825 1 wind detection lidar

Laser Safety Level IEC 60825-1 (2014) Class 1M Eye Safety Wind 3D Lidar

1,Product introduction

Grounding post: radar equipment is grounded;
Power supply interface: radar power supply line interface, used for power supply of the radar machine;
Peripheral interface: used for peripheral sensor connection;
Data network port: used for radar network connection, connect internal equipment through network cable for radar configuration;
Power switch: switch on button, used to start the radar;

2,Performance parameters

Basic parameters
Line-of-sight detection distance	10km (typical case)
Distance resolution	30m/45m/60m/75m optional
Accumulation time	0.5s/1s/2s/4s/8s optional
Radial wind speed measurement range	-75~+75 m/s
Radial wind speed measurement accuracy	0.1m/s
Number of distance layers	up to 300
Horizontal scan range	360° × n
Vertical scan range	-10°~190°
Pointing accuracy	0.1°
Scanning method	PPI , RHI , DBS , LOS and Program Scan
Real-time data output form	Profibus DP/Modbus TCP/CAN optional
Telecommunication	1000BASE-TX or 4G remote access
Environmental parameters
Operating temperature and humidity	-25~+50℃ (extendable to -40~+60℃), 5%~100% RH
IP protection class	Housing IP54, core module IP66
Anticorrosion grade	C4
Survival wind speed	70m/s (fixed by foot or by wire rope)
Working altitude	≤3500m
Other parameters
Running power consumption	≤1kW
Powered by	110VAC±20% or 220VAC±20%, 50Hz±10%
Size	800mm650mm11 30mm
Weight	≤150kg
Accessibility
GNSS functionality	Support GPS/Beidou
Time service	NTP timing or GPS/Beidou timing

3,Schematic diagram of 3D scanning Doppler wind Lidar

IEC 60825-1 Class 1M Eye Safety Wind Speed Lidar Molas 3D 0
