Molas B300 Offshore Doppler Wind Lidar Operating Temperature Range -40℃ ~ 50℃

Name: Molas B300 Offshore Doppler Wind Lidar Operating Temperature Range -40℃ ~ 50℃
Brand: Nanjing Movelaser Co., Ltd.
SKU: Molas B300（offshore）
Price: 7 USD
Availability: InStock

Brand Name:	MOVELASER
Model Number:	Molas B300（offshore）
MOQ:	1 set
Price:	Dollar 7W$+ （Price consultation customer service）
Delivery Time:	1-2 months
Payment Terms:	L/C, D/A, D/P, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Measuring Range:

30-300 Meters

Measure The Number Of Layers:

Operating Temperature Range:

-40℃ ~ 50℃

24V DC / 100~240V

Power:

70W

Sweep Cone Angle:

28°

Communication:

Ethernet (100BASE-TX) 3G/4G WiFi, Satellite Communication (optional)

Packaging Details:

Air Box

Supply Ability:

200 set ，1 month

Highlight:

offshore doppler wind lidar

12 layers doppler wind lidar

24v offshore lidar

Product Description

Operating temperature range -40℃ ~ 50℃ Molas B300(offshore) Lidar

| Product introduction

The working principle of wind measurement lidar is shown in the figure below. The signal light generated by the fiber laser is transmitted into the air to be measured through the optical antenna, and interacts with the aerosol particles in it to generate a backscattered signal containing its velocity information.

| Application scenarios

It can be used in scenarios such as wind resource assessment, wind farm post-assessment, wind power prediction system, wind farm operation management, atmospheric physics research, and meteorological detection and forecasting.

| Product parameters

**General parameters**
Powered by	24V DC / 100~240V
Power	70W
Size	682mm x 520mm x 641mm
Weight	<75kg
Operating temperature range	-40℃ ~ 50℃
Operating humidity range	0% to 100%
Protection class	IP67 (complete machine)
Eye safety	Class 1M (EN60825-1)

| Product Features

1,Non-contact measurement: convenient and fast, leading the industry
2,High accuracy: up to 0.1m/s and 1°
3,Easy maintenance: simple and fast maintenance, no safety production risk

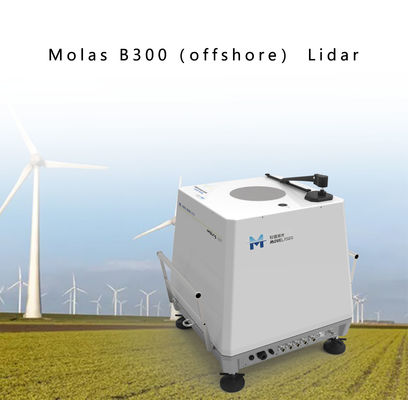

| Product Image
