3d Scanning Doppler Wind Speed Lidar Line Of Sight Detection Distance 4km-8km Large Range

Large Image : 3d Scanning Doppler Wind Speed Lidar Line Of Sight Detection Distance 4km-8km Large Range

Product Details:

Place of Origin:	China
Brand Name:	MOVELASER
Model Number:	Molas 3D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Dollar 13W$+ （Price consultation customer service）
Packaging Details:	Air Box
Delivery Time:	1-2 months
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	200 set ，1 month

Contact Now

Detailed Product Description

Line-of-sight Detection Distance:	8km/4km	Distance Resolution:	30m, 75m
Accumulation Time:	0.5s/1s/2s/4s/8s Optional	Radial Wind Speed Measurement Accuracy:	0.1m/s
Number Of Distance Gates:	300	Laser Safety Level:	IEC 60825-1 (2014) Class 1M Eye Safety
Highlight:	3d scanning doppler wind speed lidar , line of sight wind speed lidar , large range doppler wind lidar

3D Scanning Doppler Wind Lidar Line-of-sight detection distance 4km-8km large range

| Product introduction

Molas 3D is a three-dimensional scanning doppler wind lidar based on the principle of pulsed laser coherent Doppler frequency shift. Various scan modes (PPI/RHI/DBS/LOS/programmed scan) are realized.

| Application scenarios

Provide wind field information to understand the state of wind in the boundary layer
Provides accurate and high spatiotemporal wind profile information within a few kilometers of the near surface, filling the gap in low-altitude observations

| Product parameters

Basic parameters
Line-of-sight detection distance	10km (typical case)
Distance resolution	30m/45m/60m/75m optional
Accumulation time	0.5s/1s/2s/4s/8s optional
Radial wind speed measurement range	-75~+75 m/s
Radial wind speed measurement accuracy	0.1m/s
Number of distance layers	up to 300
Horizontal scan range	360° × n
Vertical scan range	-10°~190°
Pointing accuracy	0.1°
Scanning method	PPI , RHI , DBS , LOS and Program Scan
Real-time data output form	Profibus DP/Modbus TCP/CAN optional
Telecommunication	1000BASE-TX or 4G remote access
Environmental parameters
Operating temperature and humidity	-25~+50℃ (extendable to -40~+60℃), 5%~100% RH
IP protection class	Housing IP54, core module IP66
Anticorrosion grade	C4
Survival wind speed	70m/s (fixed by foot or by wire rope)
Working altitude	≤3500m

| Product Features

large range:4/8km typical detection distance
High precision:Pointing accuracy 0.1°, visual direction wind speed accuracy 0.1m/s
Rich scanning methods:PPI/RHI/DBS/LOS/ Programmable arbitrary scan method

| Product Image

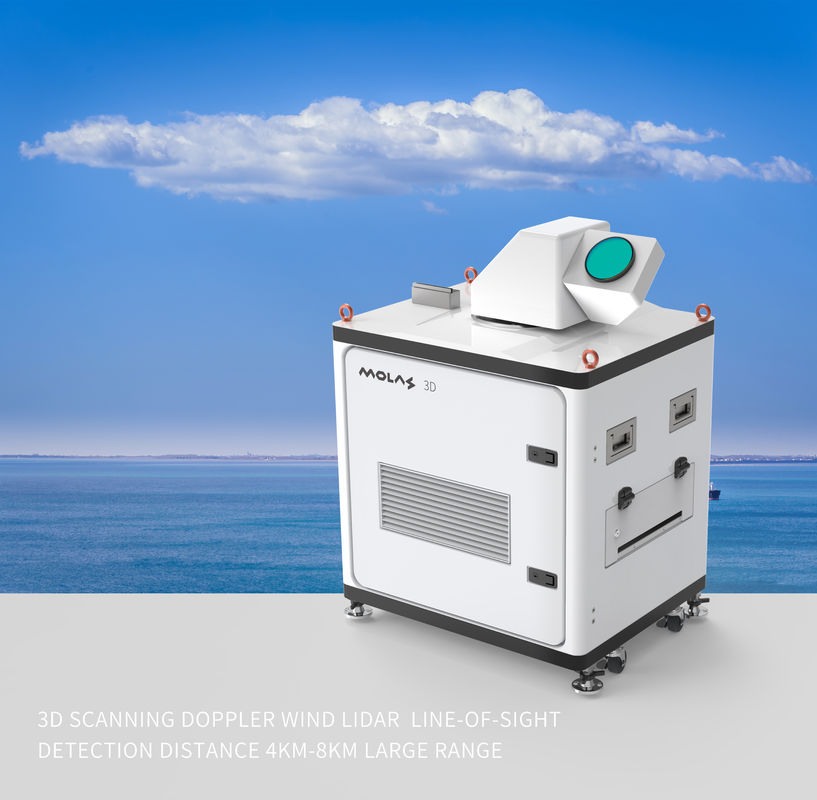

3d Scanning Doppler Wind Speed Lidar Line Of Sight Detection Distance 4km-8km Large Range 0
