Maximum Humidity 100 Extravaginal 95 Inside The Cabin Nacelle Mounted Lidar Offering Wind Profiling and Turbine Load Analysis

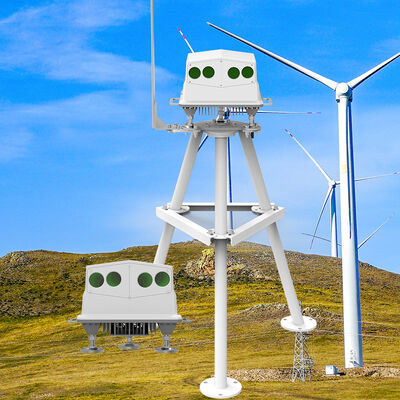

The Molas NL series represents an advanced nacelle-mounted wind lidar system, independently developed by our company to meet the demands of intelligent wind power applications. This laser-based remote sensing device is installed on top of the wind turbine nacelle and utilizes a coherent detection architecture, relying on the laser Doppler frequency shift principle. By emitting laser pulses and interpreting the signals scattered back from atmospheric aerosols, it provides accurate vector wind field measurements at various distances ahead of the rotor plane: from 50 m to 200 m for the NL200, 400 m for the NL400, 500 m for the NL500, and 70 m to 750 m for the NL750 model.

The system is capable of supporting up to ten measurement layers simultaneously, with a data refresh rate of 4 Hz. It boasts a wind speed measurement accuracy of 0.1 m/s and a wind direction accuracy within ±0.5°, allowing it to effectively capture rapid changes in wind conditions. Users can choose from four beam configurations; all models have a horizontal angle of 30°, while the vertical angle varies: 25° or 10° for the NL200, and 10° for the NL400, NL500, and NL750. This flexibility ensures optimal spatial coverage tailored to different turbine specifications and site environments.

Integration with the turbine's main control system is facilitated through a range of industrial communication protocols, including Profibus DP, Modbus TCP, Modbus RTU, and CANOPEN. Such connectivity supports sophisticated feed-forward control strategies by delivering real-time wind preview data. This enables turbines to adjust their pitch and yaw settings proactively before the wind reaches the rotor, thereby significantly reducing extreme and fatigue loads while increasing annual energy production (AEP). Beyond feed-forward control, the Molas NL series plays a critical role in yaw misalignment correction, power curve verification—serving as a replacement for traditional meteorological masts—wake detection and analysis, as well as intelligent cooperative control across wind farm fleets.

Designed to endure harsh environmental conditions, the system features an optical head rated IP67 and a data processing unit rated IP65. Its corrosion resistance complies with ISO C5 standards, making it suitable for deployment offshore, onshore, and in areas with high humidity or salt-spray exposure. The operating temperature range spans from ‑40 °C to +60 °C, with survival capabilities extending from ‑40 °C to +65 °C during power outages and from ‑45 °C to +65 °C when powered. It is built to withstand wind speeds up to 75 m/s and can operate at altitudes as high as 3,500 m. The optical head is lightweight at ≤17.5 kg, while the data processing unit weighs ≤3.6 kg, facilitating easier installations and reducing crane-related expenses.

Combining rugged construction, high precision, and versatile connectivity, the Molas NL series transcends traditional wind measurement devices. It serves as a foundational element for intelligent wind farm management, empowering operators to enhance efficiency, minimize maintenance costs, and maintain a competitive advantage in the renewable energy sector.

Understanding the loads exerted on turbine blades is crucial for ensuring structural integrity and efficient operation. Blade load analysis helps in identifying stress points and optimizing blade design to withstand varying wind conditions.

The power curve test evaluates the relationship between wind speed and the power output of a wind turbine. By conducting these tests, operators can verify the turbine’s performance against expected benchmarks and improve energy harvesting.

Wake analysis involves studying the airflow patterns that form behind wind turbines. This analysis is essential for assessing the impact of one turbine on another and for optimizing wind farm layouts to maximize overall efficiency.

Yaw correction refers to the adjustment of a wind turbine's orientation to face the wind direction optimally. Proper yaw control enhances energy capture and minimizes mechanical wear on the turbine components.

Intelligent group control systems coordinate multiple turbines within a wind farm. By managing turbines collectively, these systems can optimize power output, reduce mechanical stress, and improve the overall reliability of the wind farm.
