70W Wind Lidar Communication RJ45 Cable Cellular 2G 3G 4G WiFi

Name: 70W Wind Lidar Communication RJ45 Cable Cellular 2G 3G 4G WiFi
Brand: Nanjing Movelaser Co., Ltd.
SKU: Molas B300
Price: 6 USD
Availability: InStock

Brand Name:	MOVELASER
Model Number:	Molas B300
MOQ:	1 set
Price:	Dollar 6W$+ （Price consultation customer service）
Delivery Time:	1-2 months
Payment Terms:	L/C, D/A, D/P, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

WINDGUARD / RISO Dtu / DNV GL / Intertek

Measuring Range:

30-300 Meters

Measure The Number Of Layers:

Wind Speed Accuracy:

0.1m/s

Protection Class:

P65 (core Module) / IP54 (complete Machine)

Wind Direction Measurement Accuracy:

1°

Wind Direction Measurement Range:

0~360°

Sweep Cone Angle:

28°

24V DC / 100~240V

Power:

70W

Weight:

<50kg

Range Of Working Temperature:

-40℃ ~ 50℃

Operating Humidity Range:

0% To 100%

Eye Safety:

Class 1M (EN60825-1)

Packaging Details:

Air Box

Supply Ability:

200 set ，1 month

Highlight:

70W Wind Lidar

Wind Lidar Communication RJ45 Cable

2G 3G 4G WiFi Wind Lidar

Product Description

Wind Lidar Communication RJ45 Cable Cellular(2G/3G/4G) WiFi

1,Application field

Fan control
Power Curve Verification

2,Product introduction

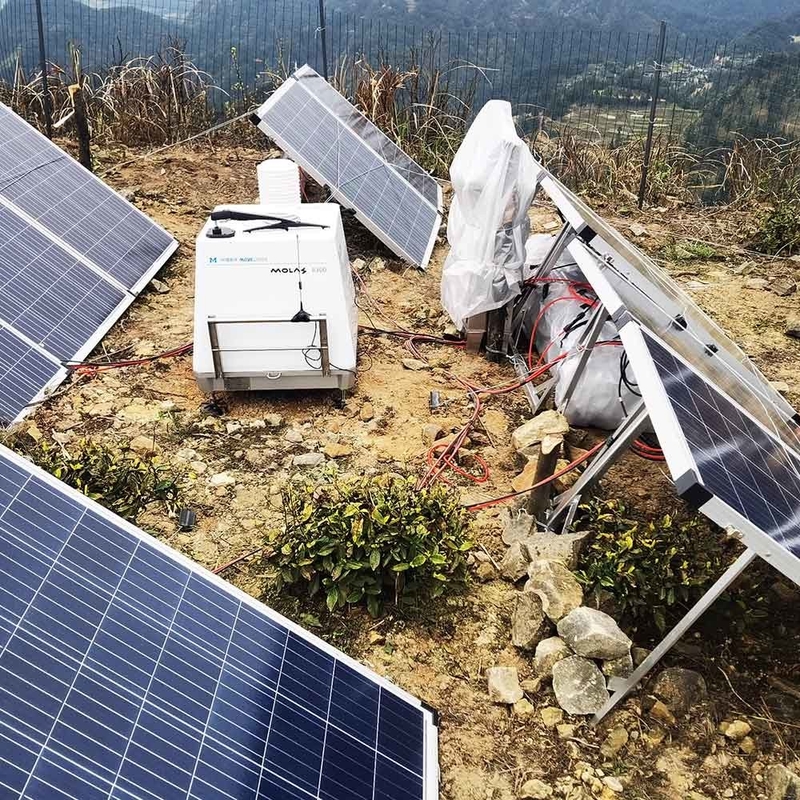

The Molas B300 series, an all-fiber Doppler wind lidar independently developed by MOVELASER, is based on the Doppler frequency effect and uses eight-beam VAD scanning vector synthesis technology to measure the wind speed and direction 30-300m above the radar.

The four core modules of Molas B300 series are independently designed from fiber laser radar transmitter, laser transceiver system, high-speed data acquisition system, and high-precision data processing software. Each core module has a high degree of matching, which ensures the unified coordination and Data and information security has reached the international advanced level.

3,Product parameters

**General parameters**
Powered by	24V DC / 100~240V
Power	70W
Size	520420550mm
Weight	<50kg
Range of working temperature	-40℃ ~ 50℃
Operating humidity range	0% to 100%
Protection class	IP65 (core module) / IP54 (complete machine)
Eye safety	Class 1M (EN60825-1)

**Measurement parameters**
Measuring distance	30~300m
Measurement layer	12
Sampling rate	1Hz
Wind speed measurement accuracy	0.1m/s
Wind direction measurement accuracy	1°
Wind speed measurement range	0~75m/s
Wind direction measurement range	0~360°
Sweep cone angle	28°

4,Application field

Wind resource assessment / Micro site selection and review / Wind power prediction system

Wind farm / wind farm performance evaluation / Weather detection
