IP67 Offshore Wind Lidar Molas FD Fiber Optic Sensing System

Name: IP67 Offshore Wind Lidar Molas FD Fiber Optic Sensing System
Brand: MOVELASER
SKU: Molas FD
Price: 1 USD
Availability: InStock
Rating: 5 (107 reviews)

Large Image : IP67 Offshore Wind Lidar Molas FD Fiber Optic Sensing System

Product Details:

Place of Origin:	China
Brand Name:	MOVELASER
Model Number:	Molas FD

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Dollar 1W$+ （Price consultation customer service）
Packaging Details:	Air Box
Delivery Time:	1-2 months
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	200 set ，1 month

Contact Now

Detailed Product Description

IP Protection Class:	IP67	Maximum Working Altitude:	3000m
Operating Temperature:	-40～50℃	Storage Temperature:	-40～80℃
Environment Humidity:	0～95%RH	Sensor Type:	Fiber Bragg Grating
High Light:	Offshore Wind Lidar Fiber Optic System , Molas FD Fiber Optic Sensing System , Wind Lidar Fiber Optic Sensing System

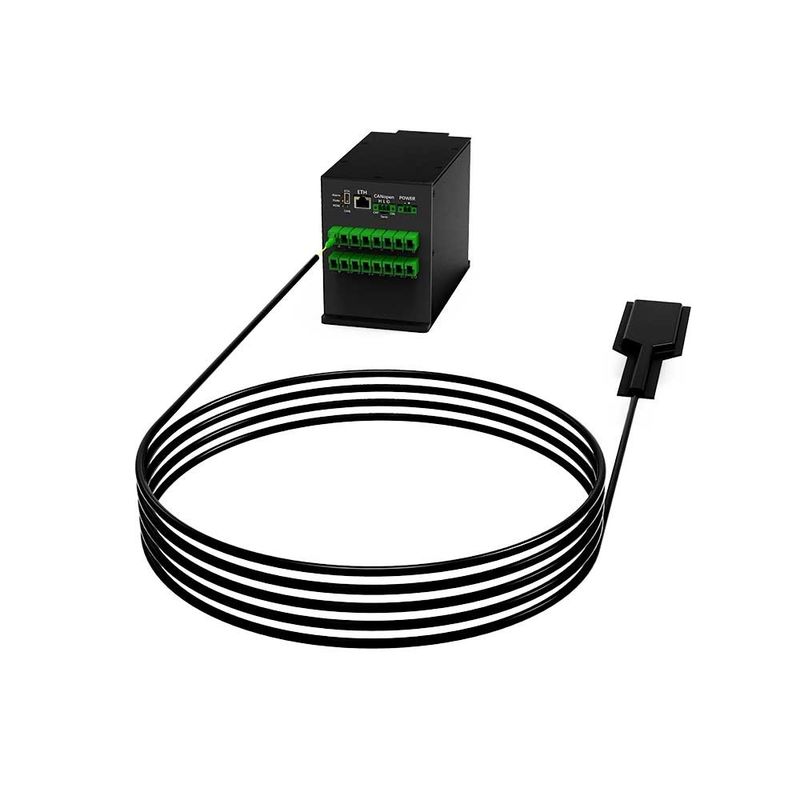

Offshore Wind Lidar Molas FD Fiber optic sensing system

1,Application field

① Blade root load measurement
② Independent pitch
③ Blade derating
④ Fatigue monitoring
⑤ Fan control

2,Features

① Simple installation and easy maintenance
② High precision
③ Flexible and portable
④ Data is safe and reliable

3,Performance Parameter

**Demodulator performance parameters**
IP protection class	IP20
Maximum working altitude	3000m
Operating temperature	-20～60℃
Storage temperature	-40～80℃
Environment humidity	-180°～180°
Wind speed accuracy	5%～95%RH
Powered by	22-26VDC
Power consumption	<15W

**Sensor performance parameters**
IP protection class	IP67
Maximum working altitude	3000m
Operating temperature	-40～50℃
Storage temperature	-40～80℃
Environment humidity	0～95%RH
Sensor type	Fiber Bragg Grating
Measuring range	±1500με
Grating reflectivity	-0.5g～0.5g
IP protection level	50%~90%

4,External interface of demodulator

LAN: network interface, which can be used for the connection of the device network; the network cable can be connected to the computer, and the device parameter setting, status observation and data transmission can be performed through the device client software.
CANopen: CAN interface, which transmits data externally through the CANopen protocol.
POWER: Power interface, which supplies power to the whole device.
1-16: Sensor interface, used to connect with different fiber grating sensors (the number of channels is customized according to customer requirements).
FIELDBUS: DB9 interface, supports external data transmission through Profibus, RS485, etc.
