| Ranging Range: | 10m-300m | Distance Resolution: | ≤0.1m |
|---|---|---|---|
| Direct Ranging Accuracy: | ±0.1m | Anti-ambient Light: | 100K LUX |
| Wavelength: | 1550nm | Laser Safety Level: | Class 1M, Eye-safe |
| Data Product: | Distance, Return Light Intensity, System Status (0/1), Check Digit | Data Update Rate: | 50~500Hz |
| Output Interface: | Profibus, CANopen Or Modbus RTU | Electrical Interface: Power Supply And Data Products: | Transmission Power And Data Transmission Products |
| Electrical Interface: Network Port: | Transmission Of Various Data, Status Monitoring, Parameter Delivery | Operating Ambient Temperature: | -40~+60℃ |
| Operating Environment Humidity: | 5%~95% RH | Storage Temperature: | -45~+65℃ |
| Storage Humidity: | 5%~95% RH | Enclosure Protection Class: | IP67 |
| Anticorrosion Grade: | Neutral Salt Spray 1344h | ||
| High Light: | High Real Time Offshore Wind Lidar,300m Offshore Wind Lidar,10m lidar offshore |
||

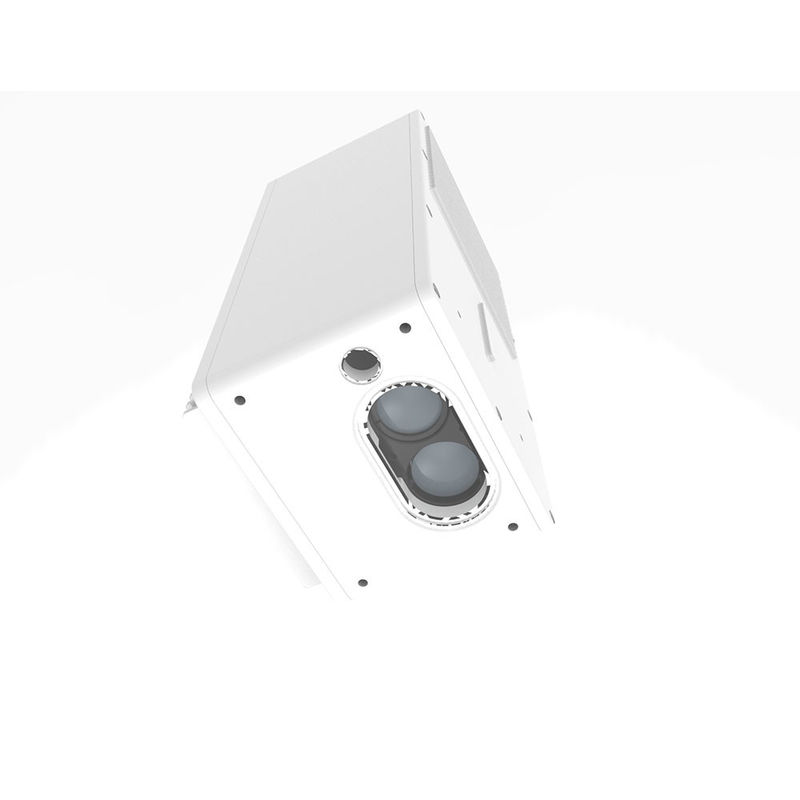

Wind lidar High detection probability High real-time
1,Product introduction
Improve the environmental adaptability of clearance monitoring
Reduce the false alarm rate and avoid affecting the normal power generation of the wind turbine
High detection probability, further reducing the probability of fan tower sweeping
2,Technical Data Sheet
| Technical indicators | |
| Ranging range | 10m-300m |
| Distance resolution | ≤0.1m |
| Direct ranging accurac | ±0.1m |
| Anti-ambient light | 100K LUX |
| Wavelength | 1550nm |
| Laser safety class | Class 1M, eye-safe |
| Data product | Distance, return light intensity, system status (0/1), check digit |
| Data update rate | 50~500Hz |
| Output interface | Profibus, CANopen or Modbus RTU |
| Electrical interface: power supply and data products | Transmission power and data transmission products |
| Electrical interface: network port | Transmission of various data, status monitoring, parameter delivery |
| Operating ambient temperature | -40~+60℃ |
| Operating environment humidity | 5%~95% RH |
| Storage temperature | -45~+65℃ |
| Storage humidity | 5%~95% RH |
| Enclosure protection class | IP67 |
| Anticorrosion grade | Neutral salt spray 1344h |
| Operating power consumption | ≤150W |
| Supply voltage | 24VDC |
| Size | length/width/height not more than 300mm |
| Weight | within 3kg |
| Light source life | 7 years |
| Machine life | 15 years |
