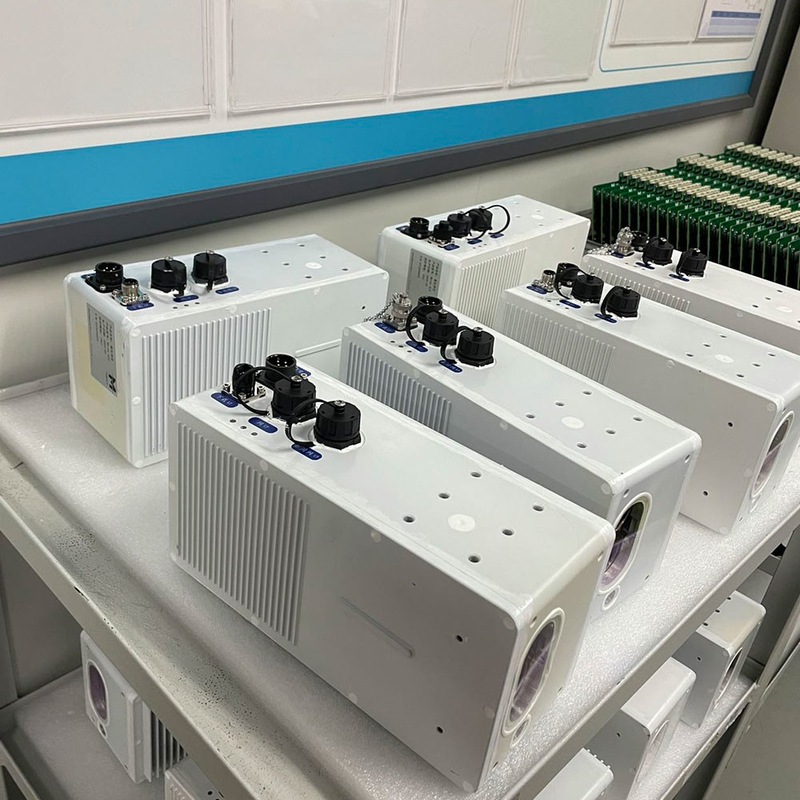

Electromagnetic Compatibility Wind Turbine Lidar GB/T 17626.2 GB-T 17626.6

Brand Name:	MOVELASER
Model Number:	Molas CL
MOQ:	1 set
Price:	Dollar 1W$+ （Price consultation customer service）
Delivery Time:	1-2 months
Payment Terms:	L/C, D/A, D/P, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Enclosure Rating:

IP65 (or According To Specific Needs)

Wavelength:

905nm

Working Humidity Range:

0%~100% RH

Packaging Details:

Air Box

Supply Ability:

200 set ，1 month

Highlight:

Electromagnetic Compatibility Wind Lidar

Wind Turbine Lidar GB T 17626 2

GB T 17626 6 lidar for wind turbines

Product Description

Electromagnetic Compatibility GB/T 17626.2-2018, GB-T17626.6-2017

1,System function description

The calibration process uses a special calibration tool to cooperate with the ground target, which is combined with the attitude adjustment of the radar in the cabin. The installation operation of the radar is carried out during the calibration process.

2,Technical Data Sheet

Ranging index
Ranging method	1ToF
Detection distance	200m@90% reflectivity/ 140m@10% reflectivity
Range resolution	≤0.1m
Measurement accuracy	±0.2m
Repeated measurement accuracy	±0.2m
Resistance to ambient light	100Klux
Optical index
Wavelength	905nm
Repeat frequency	20KHz per channel
Laser safety level	Class 1
Environmental adaptability
Range of working temperature	-40℃~+60℃
Survival temperature range	-45℃~+65℃
Working humidity range	0%~100% RH
Enclosure rating	IP65 (or according to specific needs)
Working acceleration range	-0.5g ～ 0.5g
Beam pointing
Luminous flux 1	0°
Luminous flux 2	2.05°±0.2°
Luminous flux 3	4.09°±0.2°
Output measurement results
Real-time data products	Device ID, directly measure distance, return light intensity, Data valid flag, system status
Fieldbus	Profibus DP / Modbus RTU / CANopen Three fieldbus protocols, and RS485 communication can be customized
Qther
Operating power consumption	Within 60W
Supply voltage and maximum current	DC 24V, 3A
Size	200×200×250mm
