MOVELASER Profibus DP Wind Lidars Low Visibility Dedicated Filtering Algorithm

Brand Name:	MOVELASER
Model Number:	Molas CL
MOQ:	1 set
Price:	Dollar 1W$+ （Price consultation customer service）
Delivery Time:	1-2 months
Payment Terms:	L/C, D/A, D/P, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Ranging Method:

1ToF

Detection Distance:

200m@90% Reflectivity/ 140m@10% Reflectivity

Range Resolution:

≤0.1m

Measurement Accuracy:

±0.2m

Luminous Flux 3:

4.09°±0.2°

Real-time Data Products:

Device ID, Directly Measure Distance, Return Light Intensity, Data Valid Flag, System Status

Fieldbus:

Profibus DP / Modbus RTU / CANopen Three Fieldbus Protocols, And RS485 Communication Can Be Customized

Packaging Details:

Air Box

Supply Ability:

200 set ，1 month

Highlight:

Profibus DP Wind Lidars

MOVELASER Wind Lidars

Low Visibility Wind Turbine Lidar

Product Description

low visibility Dedicated filtering algorithm

1,Product introduction

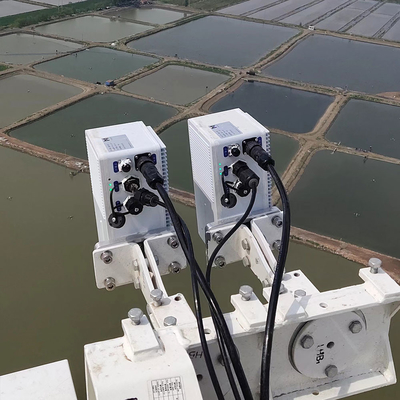

Clearance monitoring method:
The clearance radar transmits the ranging data or the calculated clearance value data to the wind turbine master control, and the wind turbine master control takes corresponding actions according to the data, such as adjusting the pitch angle when the clearance value is low, and emergency shutdown when the clearance value is too low.

2,Technical Data Sheet

Ranging index
Ranging method	1ToF
Detection distance	200m@90% reflectivity/ 140m@10% reflectivity
Range resolution	≤0.1m
Measurement accuracy	±0.2m
Repeated measurement accuracy	±0.2m
Resistance to ambient light	100Klux
Optical index
Wavelength	905nm
Repeat frequency	20KHz per channel
Laser safety level	Class 1
Environmental adaptability
Range of working temperature	-40℃~+60℃
Survival temperature range	-45℃~+65℃
Working humidity range	0%~100% RH
Enclosure rating	IP65 (or according to specific needs)
Working acceleration range	-0.5g ～ 0.5g
Beam pointing
Luminous flux 1	0°
Luminous flux 2	2.05°±0.2°
Luminous flux 3	4.09°±0.2°
Output measurement results
Real-time data products	Device ID, directly measure distance, return light intensity, Data valid flag, system status
Fieldbus	Profibus DP / Modbus RTU / CANopen Three fieldbus protocols, and RS485 communication can be customized
Qther
Operating power consumption	Within 60W
Supply voltage and maximum current	DC 24V, 3A
Size	200×200×250mm
