| Ranging Method: | 1ToF | Detection Distance: | 200m@90% Reflectivity/ 140m@10% Reflectivity |
|---|---|---|---|
| Range Resolution: | ≤0.1m | Measurement Accuracy: | ±0.2m |
| Repeated Measurement Accuracy: | ±0.2m | Resistance To Ambient Light: | 100Klux |
| Wavelength: | 905nm | Repeat Frequency: | 20KHz Per Channel |
| Laser Safety Level: | Class 1 | Range Of Working Temperature: | -40℃~+60℃ |
| Survival Temperature Range: | -45℃~+65℃ | Working Humidity Range: | 0%~100% RH |
| Enclosure Rating: | IP65 (or According To Specific Needs) | Luminous Flux 3: | 4.09°±0.2° |
| Real-time Data Products: | Device ID, Directly Measure Distance, Return Light Intensity, Data Valid Flag, System Status | Fieldbus: | Profibus DP / Modbus RTU / CANopen Three Fieldbus Protocols, And RS485 Communication Can Be Customized |
| High Light: | Rectangle High Energy Wind Lidar,White High Energy Wind Lidar,1ToF Lidar For Wind Speed Measurement |
||

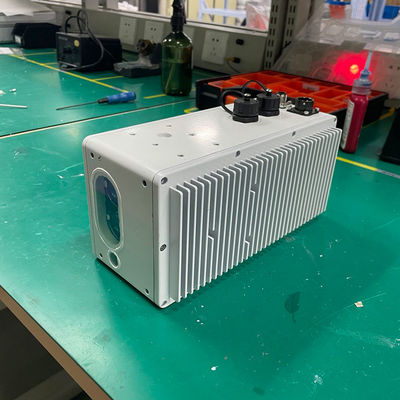

High Energy Wind Lidar white rectangle
1,Product introduction
Definition of wind turbine tower clearance:
Generalized: the minimum distance of obstacles around the outer periphery of the wind turbine tower that endanger the safety of the tower
Narrow sense: the closest distance between the blade tip of the unit blade or the vicinity of the blade tip and the tower wall at the blade tip height
2,Technical Data Sheet
| Ranging index | |
| Ranging method | 1ToF |
| Detection distance | 200m@90% reflectivity/ 140m@10% reflectivity |
| Range resolution | ≤0.1m |
| Measurement accuracy | ±0.2m |
| Repeated measurement accuracy | ±0.2m |
| Resistance to ambient light | 100Klux |
| Optical index | |
| Wavelength | 905nm |
| Repeat frequency | 20KHz per channel |
| Laser safety level | Class 1 |
| Environmental adaptability | |
| Range of working temperature | -40℃~+60℃ |
| Survival temperature range | -45℃~+65℃ |
| Working humidity range | 0%~100% RH |
| Enclosure rating | IP65 (or according to specific needs) |
| Working acceleration range | -0.5g ～ 0.5g |
| Beam pointing | |
| Luminous flux 1 | 0° |
| Luminous flux 2 | 2.05°±0.2° |
| Luminous flux 3 | 4.09°±0.2° |
| Output measurement results | |
| Real-time data products |
Device ID, directly measure distance, return light intensity, Data valid flag, system status |
| Fieldbus | Profibus DP / Modbus RTU / CANopen Three fieldbus protocols, and RS485 communication can be customized |
| Qther | |
| Operating power consumption | Within 60W |
| Supply voltage and maximum current | DC 24V, 3A |
| Size | 200×200×250mm |
