0-360 Degree Direction Laser Wind Speed Measurement ASCII Data Format Wind Lidar

Name: 0-360 Degree Direction Laser Wind Speed Measurement ASCII Data Format Wind Lidar
Brand: MOVELASER
SKU: Molas B300M
Price: 7 USD
Availability: InStock
Rating: 4.5 (167 reviews)

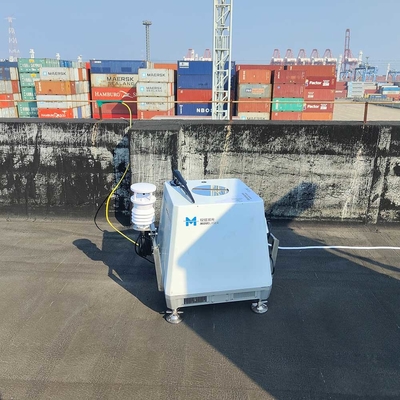

Large Image : 0-360 Degree Direction Laser Wind Speed Measurement ASCII Data Format Wind Lidar

Product Details:

Place of Origin:	China
Brand Name:	MOVELASER
Model Number:	Molas B300M

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Dollar 7W$+ （Price consultation customer service）
Packaging Details:	Air Box
Delivery Time:	1-2 months
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	200 set ，1 month

Contact Now

Detailed Product Description

Measuring Range:	30-300 Meters	Measure The Number Of Layers:	12
Wind Speed Accuracy:	0.1m/s	Protection Class:	IP67 (complete Machine)
Measuring Wind Speed Range:	0~75m/s	Size:	682mm X 520mm X 641mm
Powered By:	24V DC / 100~240V	Power:	70W
Weight:	<75kg	Data Format:	ASCII
Data Output:	Horizontal Wind Speed, Vertical Wind Speed, Wind Direction Timestamp, GPS, Temperature, Humidity And Pressure, Statistics	Communication:	Ethernet (100BASE-TX) 3G/4G WiFi, Satellite Communication (optional)
High Light:	Laser Wind Speed Measurement ASCII , IP67 Laser Wind Speed Measurement , ASCII Data Format Wind Lidar

Measuring wind direction range 0~360° Wind Lidar

1,Product introduction

The radar and its power supply and communication module need to be insulated from the surrounding fire to prevent fire from burning the radar and related equipment. At the same time, the power supply module of the radar also has the risk of causing fire.

2,Product parameters

**General parameters**
Powered by	24V DC / 100~240V
Power	70W
Size	682mm x 520mm x 641mm
Weight	<75kg
Range of working temperature	-40℃ ~ 50℃(with over temperature protection)
Operating humidity range	0% to 100%
Protection class	IP67 (complete machine)
Eye safety	Class 1M (EN60825-1)

**Measurement parameters**
Measuring distance	30~300m
Measurement layer	12
Sampling rate	1Hz
Wind speed measurement accuracy	0.1m/s
Wind direction measurement accuracy	1°
Wind speed measurement range	0~75m/s
Wind direction measurement range	0~360°
Sweep cone angle	28°

**Data parameter**
Data output	Horizontal wind speed, vertical wind speed, wind direction Timestamp, GPS, temperature, humidity and pressure, statistics
Data Format	ASCII
Communication	Ethernet (100BASE-TX) 3G/4G WiFi, satellite communication (optional)

3,Application scenarios

① Early detection of wind resources

0-360 Degree Direction Laser Wind Speed Measurement ASCII Data Format Wind Lidar 0

② Offshore construction and operation and maintenance wind power monitoring

0-360 Degree Direction Laser Wind Speed Measurement ASCII Data Format Wind Lidar 1

③ Prediction of wind power in offshore wind farms

0-360 Degree Direction Laser Wind Speed Measurement ASCII Data Format Wind Lidar 2
