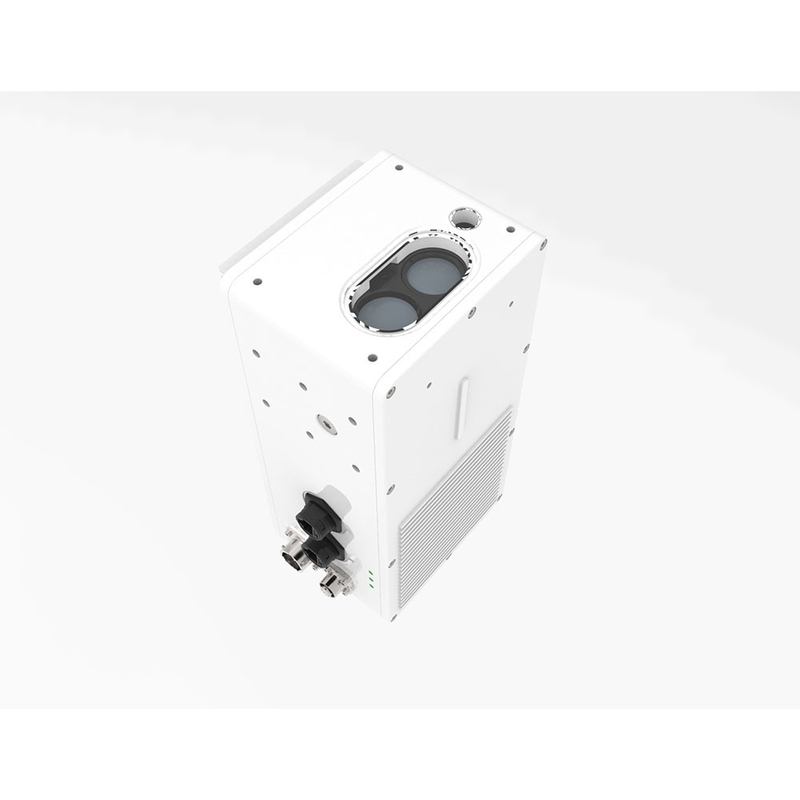

Profibus 20kHz Per Beam Offshore Wind Lidar 1550nm Wavelength

Name: Profibus 20kHz Per Beam Offshore Wind Lidar 1550nm Wavelength
Brand: Nanjing Movelaser Co., Ltd.
SKU: Molas CLH
Price: 1 USD
Availability: InStock

Brand Name:	MOVELASER
Model Number:	Molas CLH
MOQ:	1 set
Price:	Dollar 1W$+ （Price consultation customer service）
Delivery Time:	1-2 months
Payment Terms:	L/C, D/A, D/P, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Ranging Range:

10m-300m

Distance Resolution:

≤0.1m

Direct Ranging Accuracy:

±0.1m

Anti-ambient Light:

100K LUX

Wavelength:

1550nm

Output Interface:

Profibus, CANopen Or Modbus RTU

Electrical Interface: Power Supply And Data Products:

Transmission Power And Data Transmission Products

Electrical Interface: Network Port:

Transmission Of Various Data, Status Monitoring, Parameter Delivery

Operating Ambient Temperature:

-40~+60℃

Operating Environment Humidity:

5%~95% RH

Storage Temperature:

-45~+65℃

Storage Humidity:

5%~95% RH

Enclosure Protection Class:

IP67

Anticorrosion Grade:

Neutral Salt Spray 1344h

Operating Power Consumption:

≤150W

Supply Voltage:

24VDC

Size:

Length/width/height Not More Than 300mm

Weight:

Within 3kg

Light Source Life:

7 Years

Machine Life:

15 Years

Packaging Details:

Air Box

Supply Ability:

200 set ，1 month

Highlight:

20kHz Per Beam Offshore Wind Lidar

Offshore Wind Lidar 1550nm Wavelength

Offshore Profibus Wind Lidar

Product Description

Measurement frequency 20kHz per beam Wind lidar

1,Product introduction

Working principle - blade detection, the optical pulse frequency is 20kHz, to ensure that multiple pulses can detect the blade at the same time.

2,Technical Data Sheet

Technical indicators
Ranging range	10m-300m
Distance resolution	≤0.1m
Direct ranging accurac	±0.1m
Anti-ambient light	100K LUX
Wavelength	1550nm
Laser safety class	Class 1M, eye-safe
Data product	Distance, return light intensity, system status (0/1), check digit
Data update rate	50~500Hz
Output interface	Profibus, CANopen or Modbus RTU
Electrical interface: power supply and data products	Transmission power and data transmission products
Electrical interface: network port	Transmission of various data, status monitoring, parameter delivery
Operating ambient temperature	-40~+60℃
Operating environment humidity	5%~95% RH
Storage temperature	-45~+65℃
Storage humidity	5%~95% RH
Enclosure protection class	IP67
Anticorrosion grade	Neutral salt spray 1344h
Operating power consumption	≤150W
Supply voltage	24VDC
Size	length/width/height not more than 300mm
Weight	within 3kg
Light source life	7 years
Machine life	15 years
