Product Details:
Payment & Shipping Terms:
|
| Storage Temperature: | -40～80℃ | Environment Humidity: | 0～95%RH |
|---|---|---|---|
| Sensor Type: | Fiber Bragg Grating | Measuring Range: | ±1500με |
| Grating Reflectivity: | -0.5g～0.5g | IP Protection Level: | 50%~90% |
| High Light: | Portable Wind Measurement Mast,95% RH Wind Measurement Mast,Flexible Wind Measurement Lidar |
||
Transmission rate 10/100Mbps Wind Measurement Mast
1,Product introduction

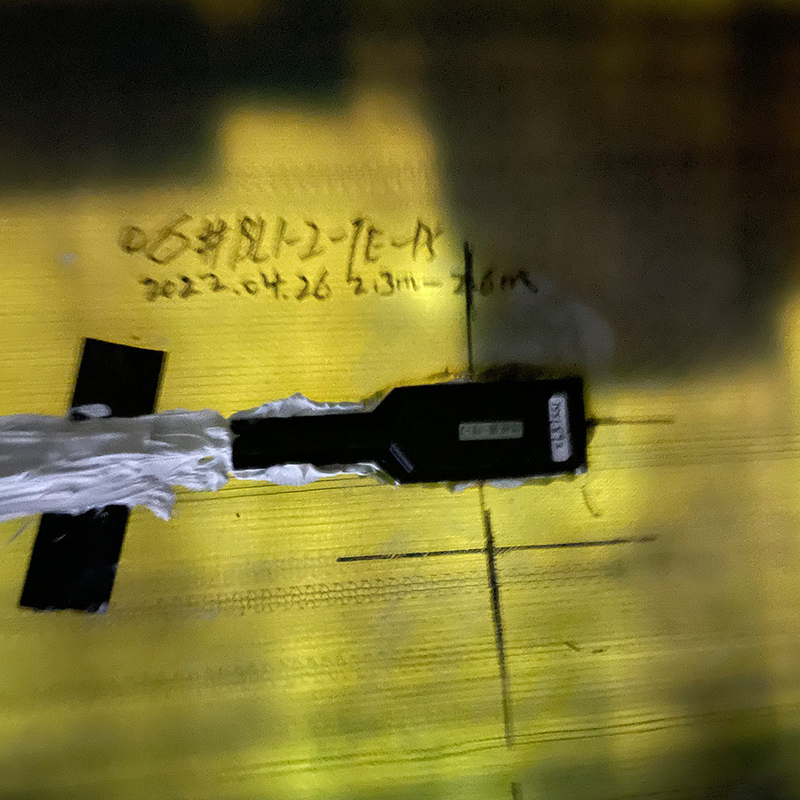

The demodulator is used in conjunction with different sensors, and the sensors are arranged at the position of the blade to be measured, which can realize the data measurement of the load and vibration of the blade.
2,Features
① Simple installation and easy maintenance
② High precision
③ Flexible and portable
④ Data is safe and reliable
3,Application field
① Blade root load measurement
② Independent pitch
③ Blade derating
④ Fatigue monitoring
⑤ Fan control
4,Performance Parameter
|
IP protection class |
IP20 |
|
Maximum working altitude |
3000m |
|
Operating temperature |
-20～60℃ |
|
Storage temperature |
-40～80℃ |
|
Environment humidity |
-180°～180° |
|
Wind speed accuracy |
5%～95%RH |
|
Powered by |
22-26VDC |
|
Power consumption |
<15W |
|
IP protection class |
IP67 |
|
Maximum working altitude |
3000m |
|
Operating temperature |
-40～50℃ |
|
Storage temperature |
-40～80℃ |
|
Environment humidity |
0～95%RH |
|
Sensor type |
Fiber Bragg Grating |
|
Measuring range |
±1500με |
|
Grating reflectivity |
-0.5g～0.5g |
|
IP protection level |
50%~90% |
5,External interface of demodulator
LAN: network interface, which can be used for the connection of the device network; the network cable can be connected to the computer, and the device parameter setting, status observation and data transmission can be performed through the device client software.
CANopen: CAN interface, which transmits data externally through the CANopen protocol.
POWER: Power interface, which supplies power to the whole device.
1-16: Sensor interface, used to connect with different fiber grating sensors (the number of channels is customized according to customer requirements).
FIELDBUS: DB9 interface, supports external data transmission through Profibus, RS485, etc.
