22-26VDC Molas FD Blade Load Vibration Measurement System

Name: 22-26VDC Molas FD Blade Load Vibration Measurement System
Brand: Nanjing Movelaser Co., Ltd.
SKU: Molas FD
Price: 1 USD
Availability: InStock

Brand Name:	MOVELASER
Model Number:	Molas FD
MOQ:	1 set
Price:	Dollar 1W$+ （Price consultation customer service）
Delivery Time:	1-2 months
Payment Terms:	L/C, D/A, D/P, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

IP Protection Class:

IP67

Maximum Working Altitude:

3000m

Operating Temperature:

-40～50℃

Storage Temperature:

-40～80℃

Environment Humidity:

0～95%RH

Power Supply:

22-26VDC

Power Consumption:

<15W

Packaging Details:

Air Box

Supply Ability:

200 set ，1 month

Highlight:

Blade Load Vibration Measurement System

Molas FD Wind Measurement Mast

26V Wind Measurement Mast

Product Description

Blade load vibration measurement system Molas FD Measuring range ±1500με

1,Summary

The system consists of a demodulator and sensors. The sensor converts the measured signal into a wavelength signal through a fiber grating, which is divided into a load sensor, an acceleration sensor, and a temperature sensor. The demodulator is responsible for demodulating the feedback wavelength of the sensor and transmitting data to the outside. The demodulator is used in conjunction with different sensors, and the sensor is arranged at the position to be measured on the blade, which can realize the measurement of the load, vibration and temperature of the blade.

2,Performance Parameter

**Demodulator performance parameters**
IP protection class	IP20
Maximum working altitude	3000m
Operating temperature	-20～60℃
Storage temperature	-40～80℃
Environment humidity	-180°～180°
Wind speed accuracy	5%～95%RH
Powered by	22-26VDC
Power consumption	<15W

**Sensor performance parameters**
IP protection class	IP67
Maximum working altitude	3000m
Operating temperature	-40～50℃
Storage temperature	-40～80℃
Environment humidity	0～95%RH
Sensor type	Fiber Bragg Grating
Measuring range	±1500με
Grating reflectivity	-0.5g～0.5g
IP protection level	50%~90%

3,Product composition

22-26VDC Molas FD Blade Load Vibration Measurement System

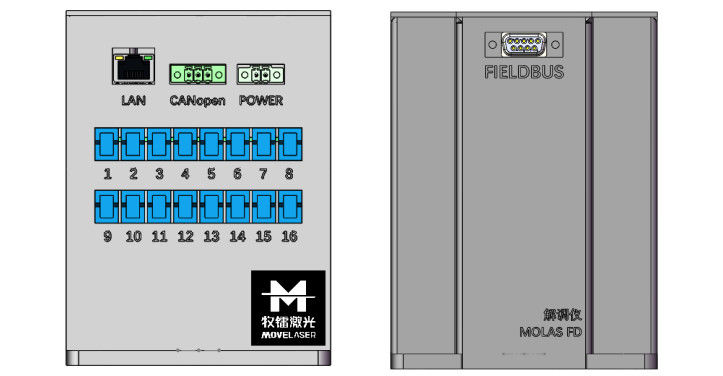

1, fiber grating demodulator 2, fiber optic bus 3, junction box 4, load sensor
