Product Details:
Payment & Shipping Terms:
|
| Detection Distance: | 200m@90% Reflectivity/ 140m@10% Reflectivity | Range Resolution: | ≤0.1m |
|---|---|---|---|
| Measurement Accuracy: | ±0.2m | Repeated Measurement Accuracy: | ±0.2m |
| Resistance To Ambient Light: | 100Klux | Wavelength: | 905nm |
| Repeat Frequency: | 20KHz Per Channel | Laser Safety Level: | Class 1 |
| Range Of Working Temperature: | -40℃~+60℃ | Survival Temperature Range: | -45℃~+65℃ |
| Working Humidity Range: | 0%~100% RH | Enclosure Rating: | IP65 (or According To Specific Needs) |
| Working Acceleration Range: | -0.5g ～ 0.5g | Luminous Flux 1: | 0° |
| Luminous Flux 2: | 2.05°±0.2° | Luminous Flux 3: | 4.09°±0.2° |
| Fieldbus: | Profibus DP / Modbus RTU / CANopen Three Fieldbus Protocols, And RS485 Communication Can Be Customized | Supply Voltage And Maximum Current: | DC 24V, 3A |
| High Light: | Molas CL Wind Measurement Lidar,250mm Wind Measurement Lidar,Wind Lidar 905nm Wavelength |
||

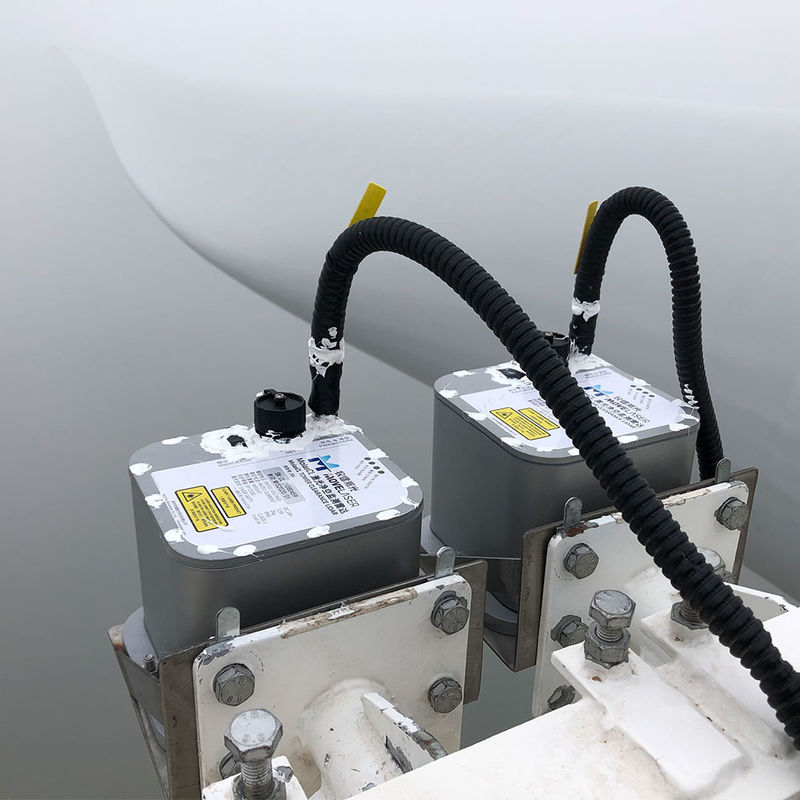

Size 200×200×250mm CL Wind Lidar
1,Product introduction
MolasCL power supply is 24V DC, the maximum current is 3A. The allowable deviation of the DC power supply voltage is -15% to +10%, and the ripple coefficient of the DC power supply voltage is less than 5%. The end of the power supply cable is marked with "+24V" and "0V", and the end is connected to a tubular pre-insulated terminal.
2,Technical Data Sheet
| Ranging index | |
| Ranging method | 1ToF |
| Detection distance | 200m@90% reflectivity/ 140m@10% reflectivity |
| Range resolution | ≤0.1m |
| Measurement accuracy | ±0.2m |
| Repeated measurement accuracy | ±0.2m |
| Resistance to ambient light | 100Klux |
| Optical index | |
| Wavelength | 905nm |
| Repeat frequency | 20KHz per channel |
| Laser safety level | Class 1 |
| Environmental adaptability | |
| Range of working temperature | -40℃~+60℃ |
| Survival temperature range | -45℃~+65℃ |
| Working humidity range | 0%~100% RH |
| Enclosure rating | IP65 (or according to specific needs) |
| Working acceleration range | -0.5g ～ 0.5g |
| Beam pointing | |
| Luminous flux 1 | 0° |
| Luminous flux 2 | 2.05°±0.2° |
| Luminous flux 3 | 4.09°±0.2° |
| Output measurement results | |
| Real-time data products |
Device ID, directly measure distance, return light intensity, Data valid flag, system status |
| Fieldbus | Profibus DP / Modbus RTU / CANopen Three fieldbus protocols, and RS485 communication can be customized |
| Qther | |
| Operating power consumption | Within 60W |
| Supply voltage and maximum current | DC 24V, 3A |
| Size | 200×200×250mm |
