Product Details:
Payment & Shipping Terms:
|
| Line-of-sight Detection Distance: | 6km/3km | Distance Resolution: | 30m, 75m |
|---|---|---|---|
| Blind Spot Width: | 50m/100m | Accumulation Time: | 0.5s/1s/2s/4s/8s Optional |
| Radial Wind Speed Measurement Range: | -75～+75m/s | Radial Wind Speed Measurement Accuracy: | 0.1m/s |
| Number Of Distance Gates: | 300 | Laser Safety Level: | IEC 60825-1 (2014) Class 1M Eye Safety |
| Horizontal Scan Range: | 0°～360° | Vertical Scanning Range: | 0°～180° |
| Angular Resolution: | 0.1° | Pointing Accuracy: | 0.1° |
| Maximum Location Update Rate: | 2Hz | Data Storage Time: | 5 To 18 Months |
| Data Format: | .csv File | Environmental Adaptability And Reliability: | -25～+50℃, Can Be Extended To -40～+60℃ |
| Operating Environment Humidity: | 5%～100% RH Without Condensation | Storage Temperature: | -35～+60℃ |
| Storage Humidity: | 5%～100% RH Without Condensation | Size: | 800mm*650mm*11 30mm |
| High Light: | Distance Resolution 30m Wind Speed Lidar,Wind Speed Lidar NTP Timing,Distance Resolution 75m wind lidar |
||

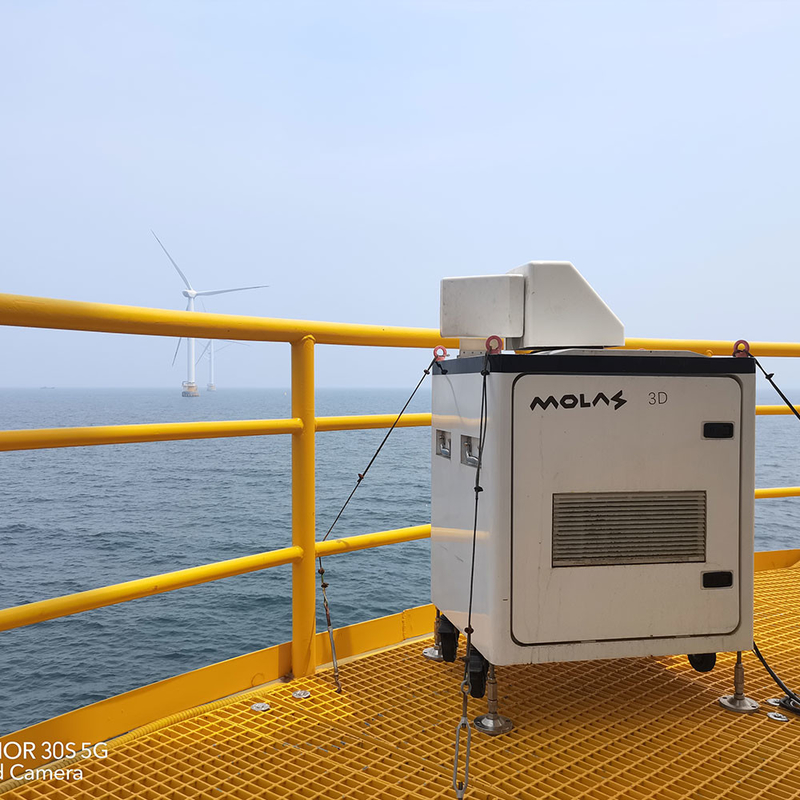

Distance resolution 30m, 75m Wind Speed Lidar
1,Product introduction
The radar is strictly prohibited to be placed in a low depression or a place where water may accumulate. If the installation point cannot be changed, the ground of the installation point must be raised to ensure that the radar is not at risk of being flooded. The failure of the radar caused by flooding is not covered by the warranty.
2,Performance parameters
| Basic parameters | |
| Line-of-sight detection distance | 10km (typical case) |
| Distance resolution | 30m/45m/60m/75m optional |
| Accumulation time | 0.5s/1s/2s/4s/8s optional |
| Radial wind speed measurement range | -75~+75 m/s |
| Radial wind speed measurement accuracy | 0.1m/s |
| Number of distance layers | up to 300 |
| Horizontal scan range | 360° × n |
| Vertical scan range | -10°~190° |
| Pointing accuracy | 0.1° |
| Scanning method | PPI , RHI , DBS , LOS and Program Scan |
| Real-time data output form | Profibus DP/Modbus TCP/CAN optional |
| Telecommunication | 1000BASE-TX or 4G remote access |
| Environmental parameters | |
| Operating temperature and humidity | -25~+50℃ (extendable to -40~+60℃), 5%~100% RH |
| IP protection class | Housing IP54, core module IP66 |
| Anticorrosion grade | C4 |
| Survival wind speed | 70m/s (fixed by foot or by wire rope) |
| Working altitude | ≤3500m |
| Other parameters | |
| Running power consumption | ≤1kW |
| Powered by | 110VAC±20% or 220VAC±20%, 50Hz±10% |
| Size | 800mm*650mm*11 30mm |
| Weight | ≤150kg |
| Accessibility | |
| GNSS functionality | Support GPS/Beidou |
| Time service | NTP timing or GPS/Beidou timing |
3,Schematic diagram of 3D scanning Doppler wind Lidar
