Line-of-sight Detection Distance: | 6km/3km | Distance Resolution: | 30m, 75m |
---|---|---|---|
Blind Spot Width: | 50m/100m | Accumulation Time: | 0.5s/1s/2s/4s/8s Optional |
Radial Wind Speed Measurement Range: | -75~+75m/s | Radial Wind Speed Measurement Accuracy: | 0.1m/s |
Number Of Distance Gates: | 300 | Laser Safety Level: | IEC 60825-1 (2014) Class 1M Eye Safety |
Horizontal Scan Range: | 0°~360° | Vertical Scanning Range: | 0°~180° |
Angular Resolution: | 0.1° | Pointing Accuracy: | 0.1° |
Maximum Location Update Rate: | 2Hz | Data Storage Time: | 5 To 18 Months |
Data Format: | .csv File | Environmental Adaptability And Reliability: | -25~+50℃, Can Be Extended To -40~+60℃ |
Operating Environment Humidity: | 5%~100% RH Without Condensation | ||
High Light: | Blind Spot 100m Wind Measurement Lidar,blind spot 50m wind measurement lidar,nacelle mounted lidar 70m/S |

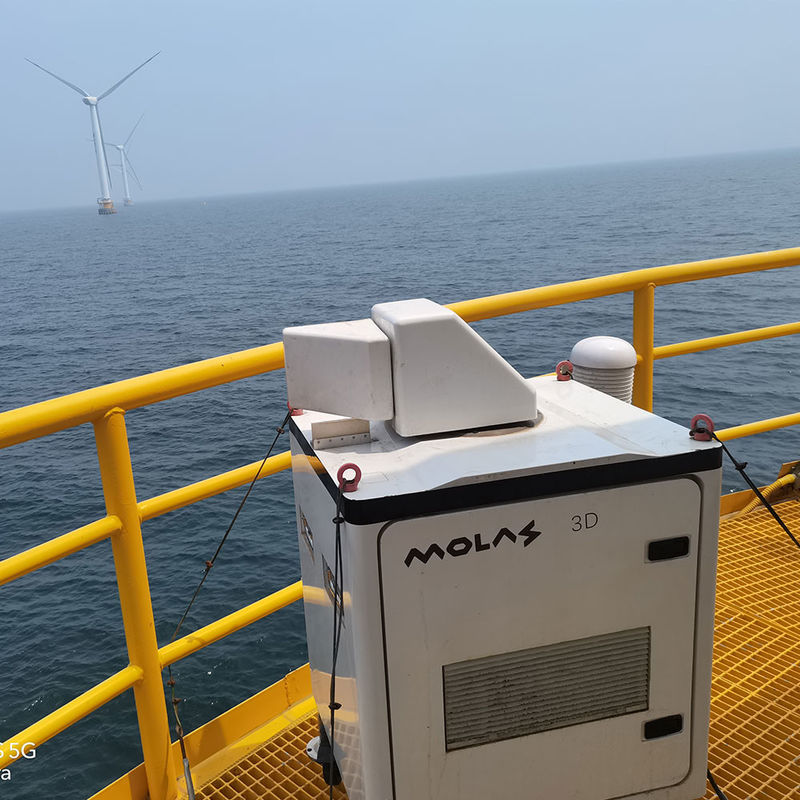

Blind spot width 50m/100m Wind Lidar
1,Product introduction
The radar and its power supply communication module need to be insulated from the surrounding fire to prevent fire from burning the radar and related equipment. At the same time, the power supply module of the radar also has the risk of causing fire.
2,Performance parameters
Basic parameters | |
Line-of-sight detection distance | 10km (typical case) |
Distance resolution | 30m/45m/60m/75m optional |
Accumulation time | 0.5s/1s/2s/4s/8s optional |
Radial wind speed measurement range | -75~+75 m/s |
Radial wind speed measurement accuracy | 0.1m/s |
Number of distance layers | up to 300 |
Horizontal scan range | 360° × n |
Vertical scan range | -10°~190° |
Pointing accuracy | 0.1° |
Scanning method | PPI , RHI , DBS , LOS and Program Scan |
Real-time data output form | Profibus DP/Modbus TCP/CAN optional |
Telecommunication | 1000BASE-TX or 4G remote access |
Environmental parameters | |
Operating temperature and humidity | -25~+50℃ (extendable to -40~+60℃), 5%~100% RH |
IP protection class | Housing IP54, core module IP66 |
Anticorrosion grade | C4 |
Survival wind speed | 70m/s (fixed by foot or by wire rope) |
Working altitude | ≤3500m |
Other parameters | |
Running power consumption | ≤1kW |
Powered by | 110VAC±20% or 220VAC±20%, 50Hz±10% |
Size | 800mm*650mm*11 30mm |
Weight | ≤150kg |
Accessibility | |
GNSS functionality | Support GPS/Beidou |
Time service | NTP timing or GPS/Beidou timing |
3,Schematic diagram of 3D scanning Doppler wind Lidar
