Product Details:
Payment & Shipping Terms:
|
| Line-of-sight Detection Distance: | 8km/4km | Distance Resolution: | 30m, 75m |
|---|---|---|---|
| Accumulation Time: | 0.5s/1s/2s/4s/8s Optional | Radial Wind Speed Measurement Accuracy: | 0.1m/s |
| Number Of Distance Gates: | 300 | Laser Safety Level: | IEC 60825-1 (2014) Class 1M Eye Safety |
| High Light: | 300 layers wind lidars,visual direction wind lidars,bankable lidar wind speed measurement |
||

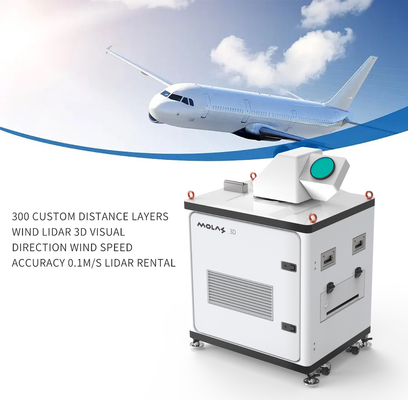

300 custom distance layers Wind Lidar 3D visual direction wind speed accuracy 0.1m/s lidar rental
| Product introduction
Molas 3D is a three-dimensional scanning doppler wind lidar based on the principle of pulsed laser coherent Doppler frequency shift. Various scan modes (PPI/RHI/DBS/LOS/programmed scan) are realized.
| Application scenarios
Detection and early warning of dangerous meteorological phenomena, such as wind shear, microburst, etc.
Measure wake vortices to optimize flight separation for airport traffic
| Product parameters
| Basic parameters | |
| Line-of-sight detection distance | 10km (typical case) |
| Distance resolution | 30m/45m/60m/75m optional |
| Accumulation time | 0.5s/1s/2s/4s/8s optional |
| Radial wind speed measurement range | -75~+75 m/s |
| Radial wind speed measurement accuracy | 0.1m/s |
| Number of distance layers | up to 300 |
| Horizontal scan range | 360° × n |
| Vertical scan range | -10°~190° |
| Pointing accuracy | 0.1° |
| Scanning method | PPI , RHI , DBS , LOS and Program Scan |
| Real-time data output form | Profibus DP/Modbus TCP/CAN optional |
| Telecommunication | 1000BASE-TX or 4G remote access |
| Environmental parameters | |
| Operating temperature and humidity | -25~+50℃ (extendable to -40~+60℃), 5%~100% RH |
| IP protection class | Housing IP54, core module IP66 |
| Anticorrosion grade | C4 |
| Survival wind speed | 70m/s (fixed by foot or by wire rope) |
| Working altitude | ≤3500m |
| Product Features
large range:4/8km typical detection distance
High precision:Pointing accuracy 0.1°, visual direction wind speed accuracy 0.1m/s
Rich scanning methods:PPI/RHI/DBS/LOS/ Programmable arbitrary scan method
| Product Image
