Ppi / Rhi / Dbs / Los / Lidar Speed Measurement Programmable Arbitrary Scan Method

Name: Ppi / Rhi / Dbs / Los / Lidar Speed Measurement Programmable Arbitrary Scan Method
Brand: Nanjing Movelaser Co., Ltd.
SKU: Molas 3D
Price: 13 USD
Availability: InStock

Brand Name:	MOVELASER
Model Number:	Molas 3D
MOQ:	1 set
Price:	Dollar 13W$+ （Price consultation customer service）
Delivery Time:	1-2 months
Payment Terms:	L/C, D/A, D/P, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Line-of-sight Detection Distance:

8km/4km

Distance Resolution:

30m, 75m

Accumulation Time:

0.5s/1s/2s/4s/8s Optional

Radial Wind Speed Measurement Accuracy:

0.1m/s

Number Of Distance Gates:

300

Scanning Method:

PPI 、RHI 、DBS 、LOS And Program Scan

Packaging Details:

Air Box

Supply Ability:

200 set ，1 month

Highlight:

ppi lidar speed measurement

programmable arbitrary scan wind speed lidar

programmable arbitrary scan lidar speed measurement

Product Description

PPI/RHI/DBS/LOS/ Programmable Arbitrary Scan Method Doppler Wind Lida Molas 3D

| Product introduction

Molas 3D is a three-dimensional scanning doppler wind lidar based on the principle of pulsed laser coherent Doppler frequency shift. Various scan modes (PPI/RHI/DBS/LOS/programmed scan) are realized.

| Application scenarios

Detection and early warning of dangerous meteorological phenomena, such as wind shear, microburst, etc.
Measure wake vortices to optimize flight separation for airport traffic

| Product parameters

Basic parameters
Line-of-sight detection distance	10km (typical case)
Distance resolution	30m/45m/60m/75m optional
Accumulation time	0.5s/1s/2s/4s/8s optional
Radial wind speed measurement range	-75~+75 m/s
Radial wind speed measurement accuracy	0.1m/s
Number of distance layers	up to 300
Horizontal scan range	360° × n
Vertical scan range	-10°~190°
Pointing accuracy	0.1°
Scanning method	PPI , RHI , DBS , LOS and Program Scan
Real-time data output form	Profibus DP/Modbus TCP/CAN optional
Telecommunication	1000BASE-TX or 4G remote access
Environmental parameters
Operating temperature and humidity	-25~+50℃ (extendable to -40~+60℃), 5%~100% RH
IP protection class	Housing IP54, core module IP66
Anticorrosion grade	C4
Survival wind speed	70m/s (fixed by foot or by wire rope)
Working altitude	≤3500m

| Product Features

all-weather:No fear of harsh wild environment, with LPZ0B minefield survivability
Safe to use:With GPS location reporting and geo-fencing functions, data encryption has no risk of leakage
Rich configuration:2 distance resolutions and 5 accumulation times to choose from

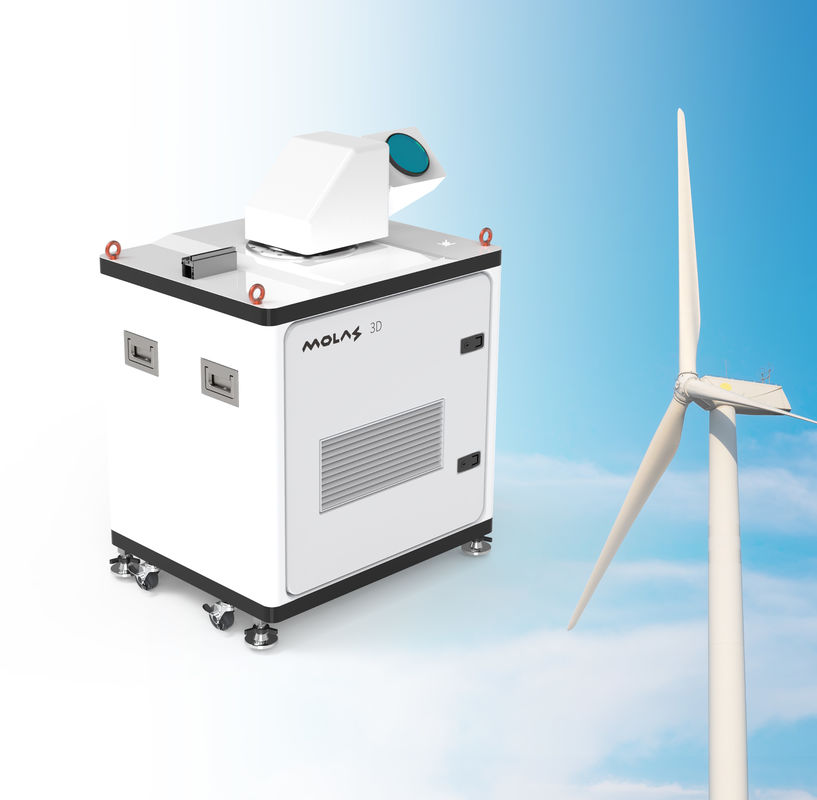

| Product Image

Ppi / Rhi / Dbs / Los / Lidar Speed Measurement Programmable Arbitrary Scan Method
