Onshore Wind Speed Lidar Rental 75m Molas 3D

Name: Onshore Wind Speed Lidar Rental 75m Molas 3D
Brand: Nanjing Movelaser Co., Ltd.
SKU: Molas 3D
Price: 13 USD
Availability: InStock

Brand Name:	MOVELASER
Model Number:	Molas 3D
MOQ:	1 set
Price:	Dollar 13W$+ （Price consultation customer service）
Delivery Time:	1-2 months
Payment Terms:	L/C, D/A, D/P, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Pointing Accuracy:

0.1°

Distance Resolution:

30m, 75m

Accumulation Time:

0.5s/1s/2s/4s/8s Optional

Radial Wind Speed Measurement Accuracy:

0.1m/s

Vertical Range:

-10°~190°

Laser Safety Level:

IEC 60825-1 (2014) Class 1M Eye Safety

Name:

Onshore Wind Speed Lidar Rental

Keyword:

Lidar Wind Speed Measurement Rental

Packaging Details:

Air Box

Supply Ability:

200 set ，1 month

Highlight:

onshore wind speed lidar

75m wind speed lidar

molas 3d lidar rental

Product Description

Onshore wind measurements MOVELASER 3D remote lidar rental

| Product introduction

Molas 3D 3D scanning wind lidar is a lidar system based on the above principles, with an additional scanner that can freely adjust the beam direction. It can perform specific scanning methods for specific airspace ranges, providing all-weather, omnidirectional, real-time, high-precision wind field information, and can be used for urban meteorological observation, wind power resource assessment, local wind shear early warning, high altitude turbulence, wind tunnel aerodynamics research Application scenarios such as complex terrain and offshore wind power resource assessment.

| Application scenarios

Real-time 3D information on plume dispersion to track emission sources
Optimizing Dust Emission Control for the Mining Industry

| Product parameters

Basic parameters
Line-of-sight detection distance	8km (corresponding to 75m distance resolution) 4km (corresponding to 30m distance resolution)
Distance resolution	30m/45m/60m/75m optional
Accumulation time	0.5s/1s/2s/4s/8s optional
Radial wind speed measurement range	-75~+75 m/s
Radial wind speed measurement accuracy	0.1m/s
Number of distance layers	up to 300
Horizontal scan range	360° × n
Vertical scan range	-10°~190°
Environmental parameters
Operating temperature and humidity	-25~+50℃ (extendable to -40~+60℃), 5%~100% RH
IP protection class	Housing IP54, core module IP66
Anticorrosion grade	C4
Survival wind speed	70m/s (fixed by foot or by wire rope)
Working altitude	≤3500m

| Product Features

large range:4/8km typical detection distance
High precision:Pointing accuracy 0.1°, visual direction wind speed accuracy 0.1m/s
Rich scanning methods:PPI/RHI/DBS/LOS/ Programmable arbitrary scan method

| Product Image

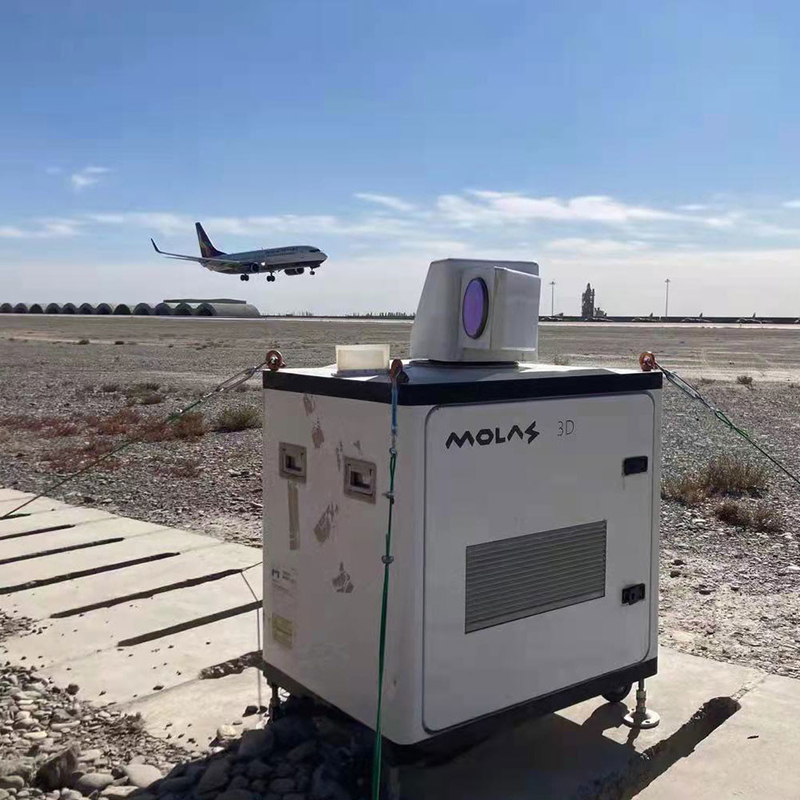

Onshore Wind Speed Lidar Rental 75m Molas 3D 0
