IP66 Wind Turbine Lidar with ±0.5° Accuracy and 70m/s Survival Wind Speed

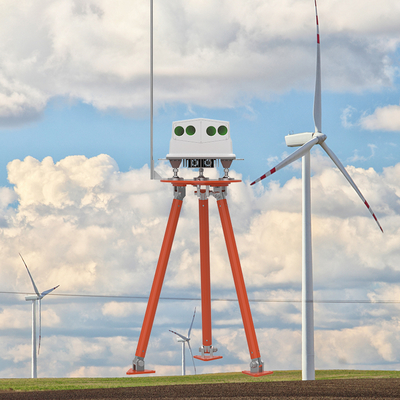

Large Image : IP66 Wind Turbine Lidar with ±0.5° Accuracy and 70m/s Survival Wind Speed

Product Details:

Brand Name:	MOLAS
Model Number:	NL

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Packaging Details:	flight case
Delivery Time:	Customize

Contact Now

Detailed Product Description

Survival Wind Speed:	70m/s	Wind Direction Range:	-180°~180°
IP(OpticalHead):	IP66	Wind Speed Accuracy:	0.1m/s
Wind Speed Range:	-50m/s~50m/s	Weight(OpticalHead):	≤23kg
Maximum Pass Size:	500mm‘500mm	Wind Direction Acuracy:	±0.5°
Highlight:	IP66 wind turbine lidar , wind turbine lidar ±0.5° accuracy , 70m/s survival wind speed lidar

IP66 Rated Wind Turbine Lidar with ±0.5° Accuracy

Product Overview

The Wind Turbine Lidar is an advanced monitoring solution designed for wind energy applications. This precision instrument delivers accurate wind speed and direction measurements to optimize wind farm performance and turbine efficiency.

Key Features

High accuracy: ±0.5° wind direction and 0.1m/s wind speed measurement
Robust construction: IP66 rated optical head and IP54/65 data unit protection
Extreme weather capable: Survival wind speed of 70m/s
Comprehensive coverage: 500mm x 500mm maximum pass size
Multi-layer measurement: 10 measurement layers for detailed wind profiling
Compact design: Data unit weighs ≤6kg, optical head ≤23kg

Technical Specifications

Parameter	Specification
Wind Direction Range	-180° to 180°
Wind Speed Range	-50m/s to 50m/s
Wind Speed Accuracy	0.1m/s
Measurement Frequency	4Hz
Measurement Range	50m to 750m/NL750
Operating Temperature	-40℃ to -60℃
Acceleration Range	-0.5g to 0.5g

Applications

This wind turbine lidar system is specifically designed for:

Wind farm performance monitoring
Turbine alignment optimization
Wind resource assessment
Extreme weather condition monitoring

Support & Services

Our technical support team provides comprehensive assistance including installation guidance, system calibration, troubleshooting, and maintenance services to ensure optimal performance of your wind turbine lidar system.

Tag:

MOVELASER Wind Turbine Lidar,

MOVELASER Wind Lidars,

Low Visibility Wind Turbine Lidar

Contact Details

Nanjing Movelaser Co., Ltd.

Contact Person: ivyyao

Tel: +86 13072523225

Fax: 86-025-86800073

Other Products

1ToF 20KHz Per Channel Wind Turbine Lidar Class 1 Laser Safety

Detection distance: 200m@90% reflectivity/ 140m@10% reflectivity

Repeat frequency: 20KHz per channel

Ranging method: 1ToF

Multi Beam Correlation Detection Lidar Wind Turbine Fan Master Control

Ranging method: 1ToF

Luminous flux 3: 4.09°±0.2°

Real-time data products: Device ID, directly measure distance, return light intensity, Data valid flag, system status

Fieldbus: Profibus DP / Modbus RTU / CANopen Three fieldbus protocols, and RS485 communication can be customized

Electromagnetic Compatibility Wind Turbine Lidar GB/T 17626.2 GB-T 17626.6

Enclosure rating: IP65 (or according to specific needs)

Wavelength: 905nm

Working humidity range: 0%~100% RH

-40-80C Storage Temp Molas FD Lidar Wind Turbine Fiber Bragg Grating Sensor

IP protection class: IP67

Operating temperature: -40～50℃

Storage temperature: -40～80℃

Sensor type: Fiber Bragg Grating

IP67 IP20 3000m Altitude Wind Turbine Lidar 95% RH Humidity

Storage temperature: -40～80℃

Environment humidity: 0～95%RH

Sensor type: Fiber Bragg Grating
