Product Details:
Payment & Shipping Terms:
|
| IP Protection Class: | IP20 | Operating Temperature: | -20～60℃ |
|---|---|---|---|
| Environment Humidity: | -180°～180° | Powered By: | 22-26VDC |
| Power Consumption: | <15W | ||
| High Light: | 90% IP Protection Wind Measurement Mast,15W Wind Measurement Mast,50% IP Protection Wind Lidar |
||
IP protection level 50%~90% performance parameters
1,Product introduction
After the junction box is installed, the sensor tail wire needs to be positioned and fixed. Wipe the blade surface clean with a rag at the wiring location. The sensor tail wire should be twisted along the baffle and the connection of the blade as far as possible without bending, and extended and circled according to the actual situation, and fixed on the blade root baffle with Sika glue to ensure that the sensor tail wire is not entangled.
2,Features
① Simple installation and easy maintenance
② High precision
③ Flexible and portable
④ Data is safe and reliable
3,Application field
① Blade root load measurement
② Independent pitch
③ Blade derating
④ Fatigue monitoring
⑤ Fan control
4,Performance Parameter
|
IP protection class |
IP20 |
|
Maximum working altitude |
3000m |
|
Operating temperature |
-20～60℃ |
|
Storage temperature |
-40～80℃ |
|
Environment humidity |
-180°～180° |
|
Wind speed accuracy |
5%～9RH5% |
|
Powered by |
22-26VDC |
|
Power consumption |
<15W |
|
IP protection class |
IP67 |
|
Maximum working altitude |
3000m |
|
Operating temperature |
-40～50℃ |
|
Storage temperature |
-40～80℃ |
|
Environment humidity |
0～95%RH |
|
Sensor type |
Fiber Bragg Grating |
|
Measuring range |
±1500με |
|
Grating reflectivity |
-0.5g～0.5g |
|
IP protection level |
50%~90% |

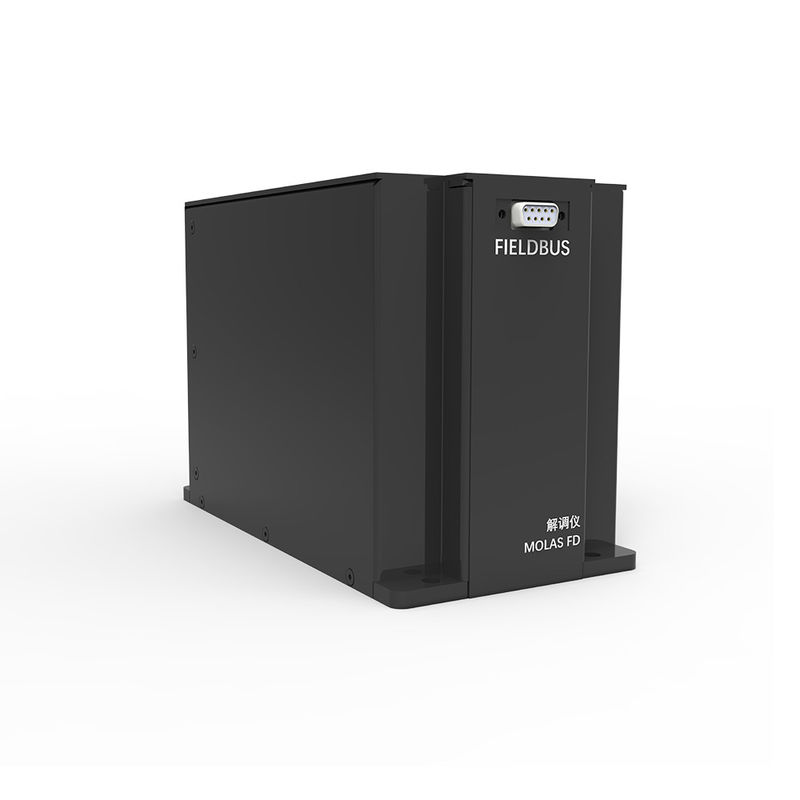

5,External interface of demodulator
LAN: network interface, which can be used for the connection of the device network; the network cable can be connected to the computer, and the device parameter setting, status observation and data transmission can be performed through the device client software.
CANopen: CAN interface, which transmits data externally through the CANopen protocol.
POWER: Power interface, which supplies power to the whole device.
1-16: Sensor interface, used to connect with different fiber grating sensors (the number of channels is customized according to customer requirements).
FIELDBUS: DB9 interface, supports external data transmission through Profibus, RS485, etc.
